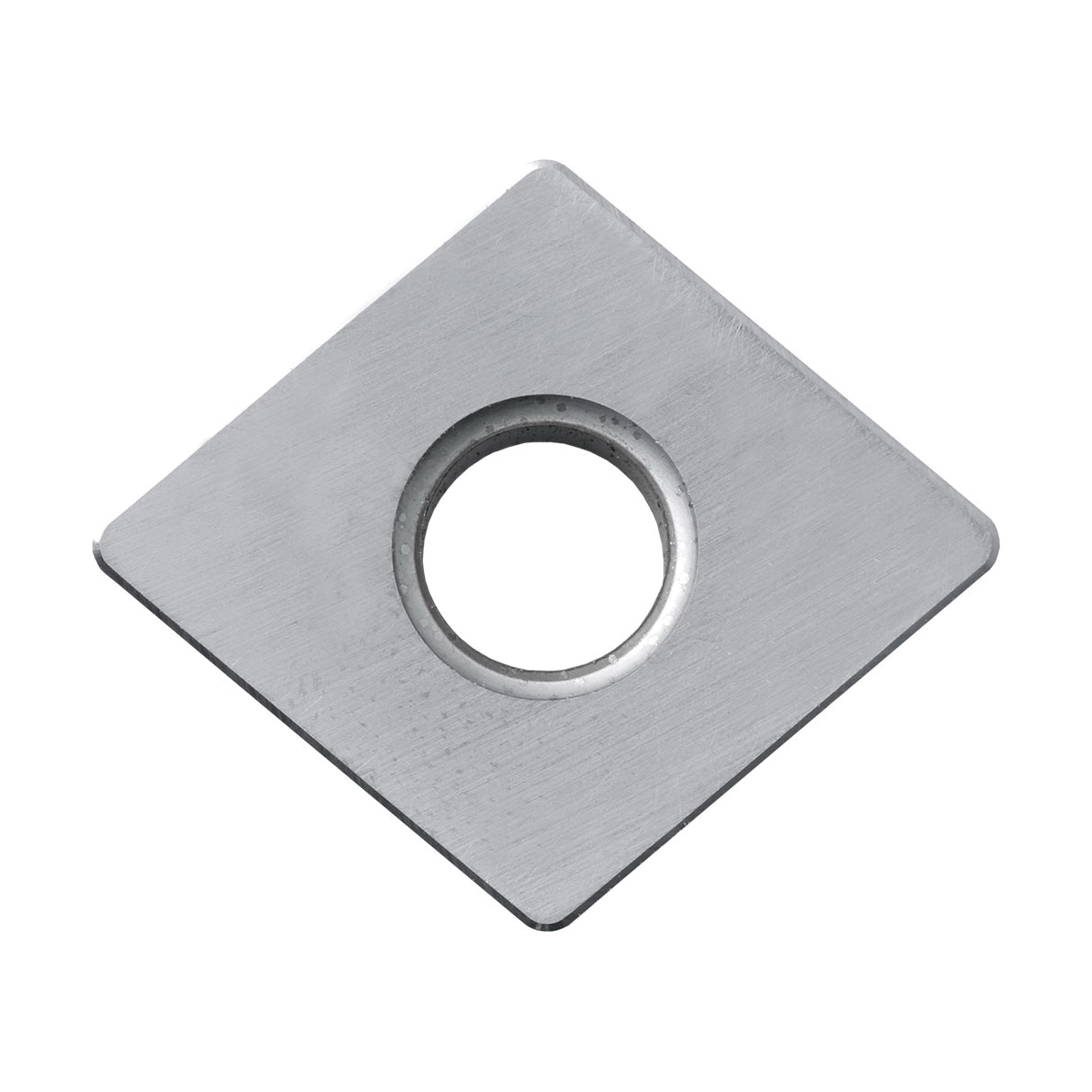

CNGA432KW10 TURNING INSERT

CNGA432KW10 TURNING INSERT

KYOCTWE00707 TWE00707
21.72 / EA
http://schema.org/OutOfStock
CNGA432KW10 TURNING INSERT
  • Applicable Materials: Gray Cast Iron, Non-Ferrous Metals and Titanium Alloy
  • Corner Radius: 1/32in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #432
  • Insert Style: CNGA
  • ISO Code: CNGA120408
  • Material: Carbide
  • Material Grade: N, S, K
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Rhombic
  • Surface Treatment: Uncoated/WC/Co Coated
  • Thickness: 3/16in
  • Type: 4-Cutting Edge
  • ANSI Code: CNGA432KW10
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KW10
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • ISO identification symbol K carbide (K10 relevant)
  • Stable cutting of cast iron, non-ferrous materials, non-metals and titanium alloys
  • Without chipbreaker
  • Cast iron/without chipbreaker with 4 cutting edges
ECCN: EAR99
