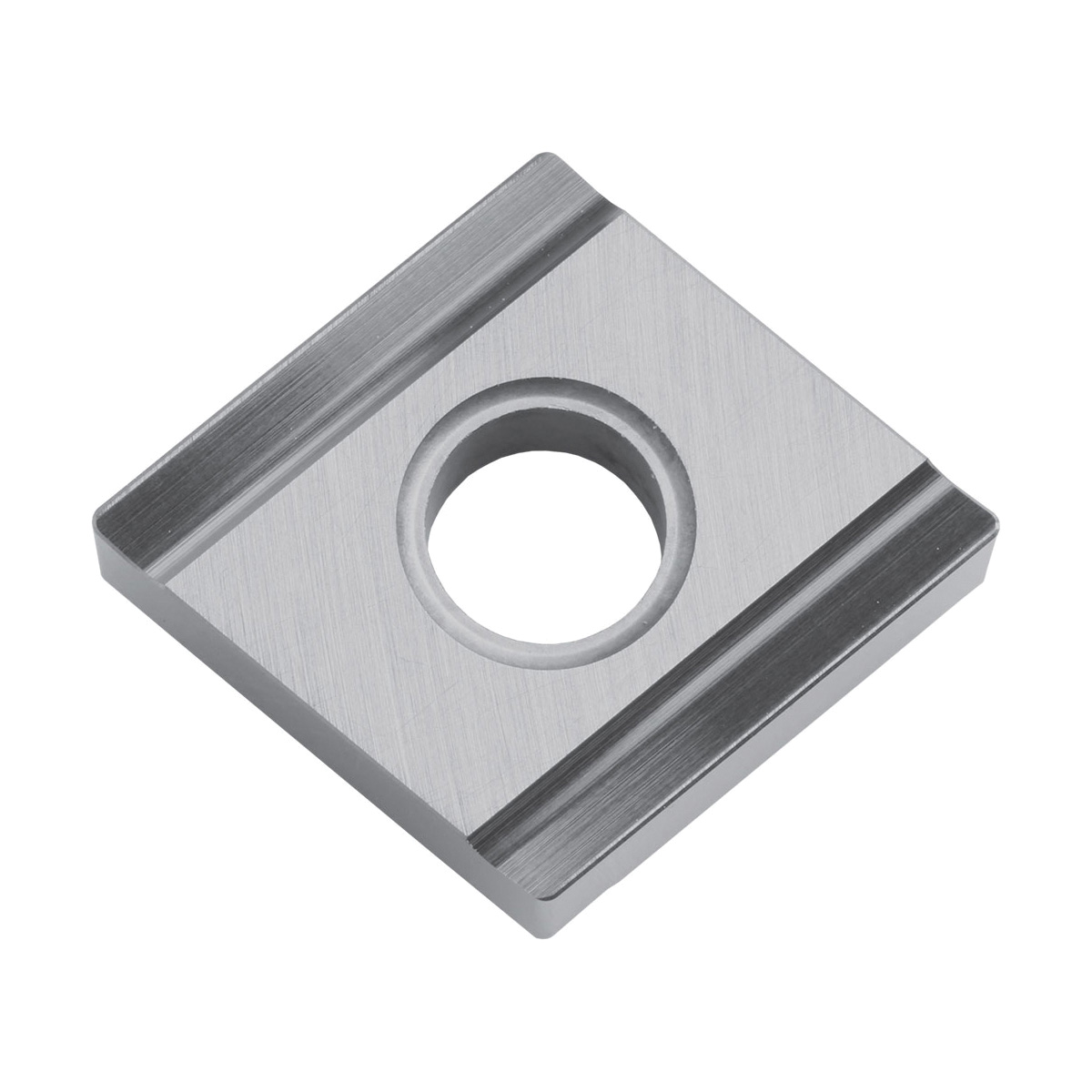

CNGG432LTN610 TURNING INSERT

CNGG432LTN610 TURNING INSERT

KYOCTSS01684 TSS01684
15.81 / EA
http://schema.org/OutOfStock
CNGG432LTN610 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Corner Radius: 0.0315in
  • Hand Direction: Left Hand
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #432
  • Insert Style: CNGG
  • ISO Code: CNGG120408L
  • Material: Cermet
  • Material Grade: P
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Diamond
  • Surface Treatment: Uncoated/TiCN Coated
  • Thickness: 0.1874in
  • Type: 4-Cutting Edge
  • ANSI Code: CNGG432LTN610
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TN610
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, External Turning, Facing and Internal Facing Applications
  • Three hybrid technology attributes maintain superior surface finish and machining stability
  • Stable machining of steel
  • Inner structure has high toughness and chipping resistance along with thermal shock resistance
  • Recommended cermet for high wear resistance
  • https://youtu.be/moxzwEbjweU
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
