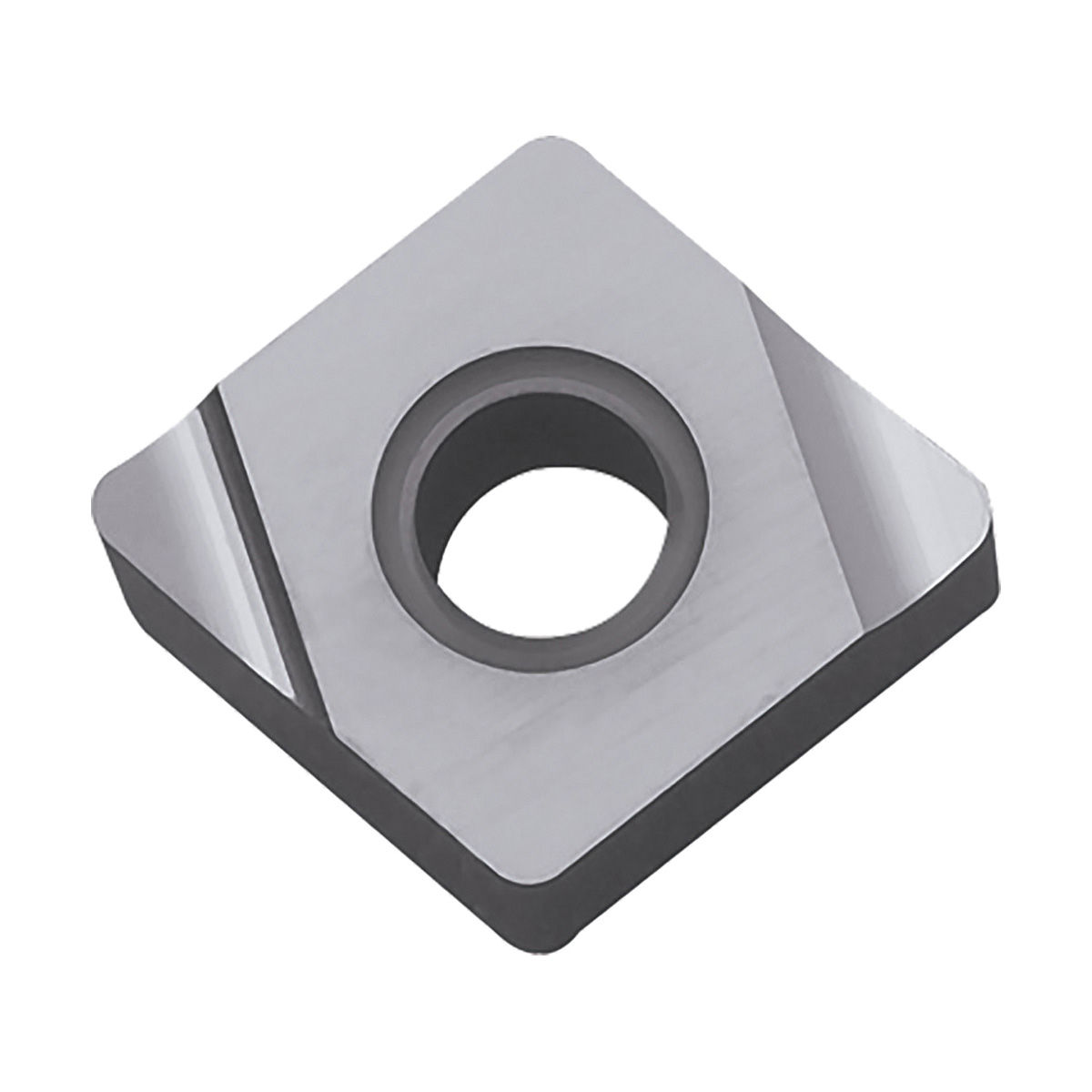

CNGG331RSTN610 TURNING INSERT

CNGG331RSTN610 TURNING INSERT

KYOCTSS01663 TSS01663
14.30 / EA
http://schema.org/OutOfStock
CNGG331RSTN610 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: S
  • Corner Radius: 0.0157in
  • Hand Direction: Right Hand
  • Hole Diameter: 0.15in
  • Included Angle: 80°
  • Inscribed Circle: 3/8in
  • Insert Size: #331
  • Insert Style: CNGG
  • ISO Code: CNGG090404R-S
  • Material: Cermet
  • Material Grade: P
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 9
  • Shape: Diamond
  • Surface Treatment: Uncoated/TiCN Coated
  • Thickness: 0.1874in
  • Type: 4-Cutting Edge
  • ANSI Code: CNGG331RSTN610
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TN610
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, External Turning, Facing and Internal Facing Applications
  • Surface finish oriented with 4-cutting edges
  • Three hybrid technology attributes maintain superior surface finish and machining stability
  • Stable machining of steel
  • Inner structure has high toughness and chipping resistance along with thermal shock resistance
  • Recommended cermet for high wear resistance
  • https://youtu.be/moxzwEbjweU
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
