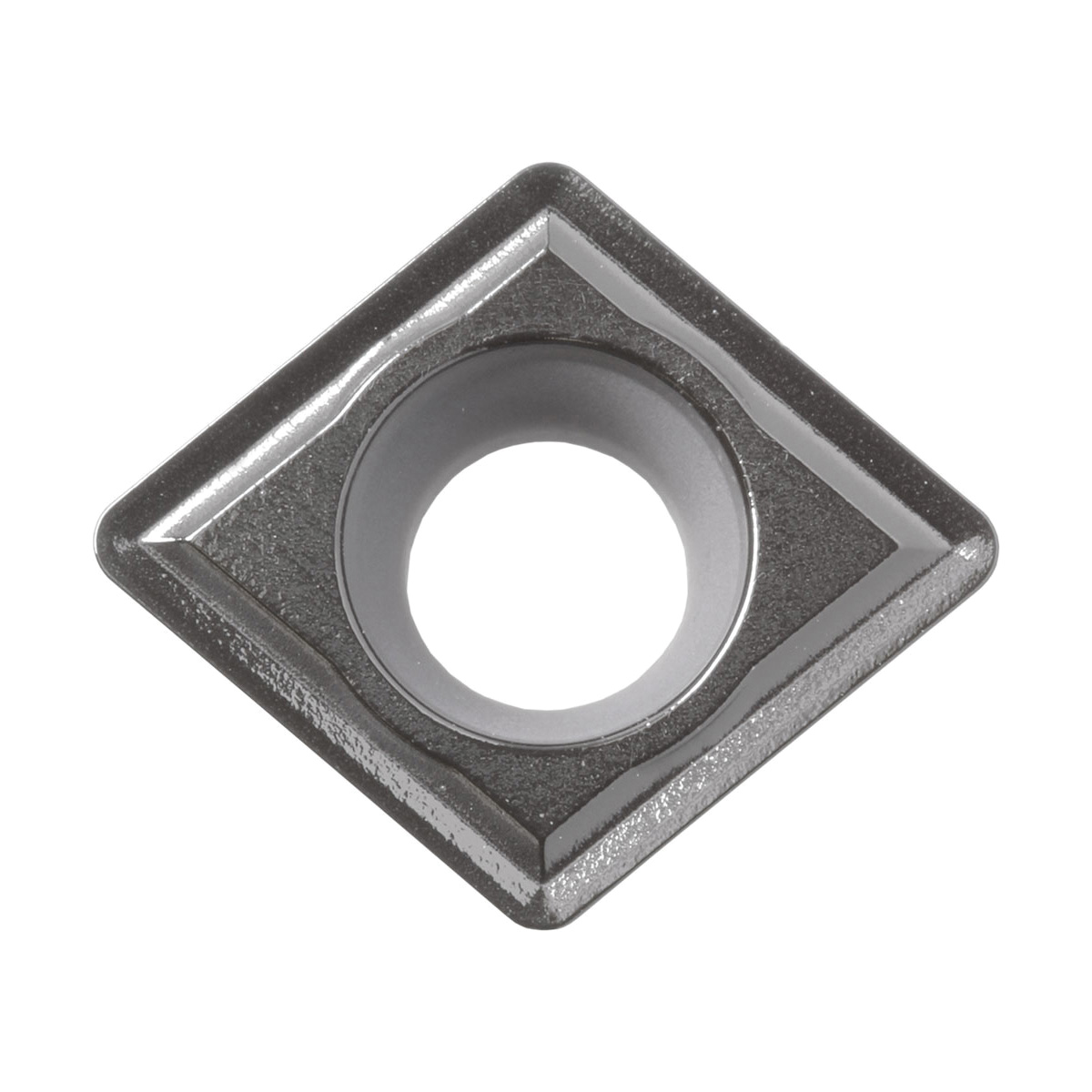

CCGT21502TN610 TURNING INSERT
CCGT21502TN610 TURNING INSERT
KYOCTSS01200
TSS01200
10.15
/ EA
http://schema.org/OutOfStock
/Product/KYOCTSS01200
- Applicable Materials: Carbon/Alloy Steel
- Corner Radius: 0.0039in
- Hand Direction: Neutral
- Hole Diameter: 0.1102in
- Included Angle: 80°
- Inscribed Circle: 1/4in
- Insert Size: #21502
- Insert Style: CCGT
- ISO Code: CCGT060201
- Material: Cermet
- Material Grade: P
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 6
- Shape: Diamond
- Surface Treatment: Uncoated/TiCN Coated
- Thickness: 0.0937in
- Type: 2-Cutting Edge
- Manufacturer Grade: TN610
- ANSI Code: CCGT21502TN610
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Series: ISOI
- Application
- Item Features
- Standards
Boring, External Turning, Facing, Internal Facing and Sub-Spindle Applications
- Three hybrid technology attributes maintain superior surface finish and machining stability
- Stable machining of steel
- Inner structure has high toughness and chipping resistance along with thermal shock resistance
- Recommended cermet for high wear resistance
- https://youtu.be/moxzwEbjweU
