KYOCERA PRECISION TOOLS

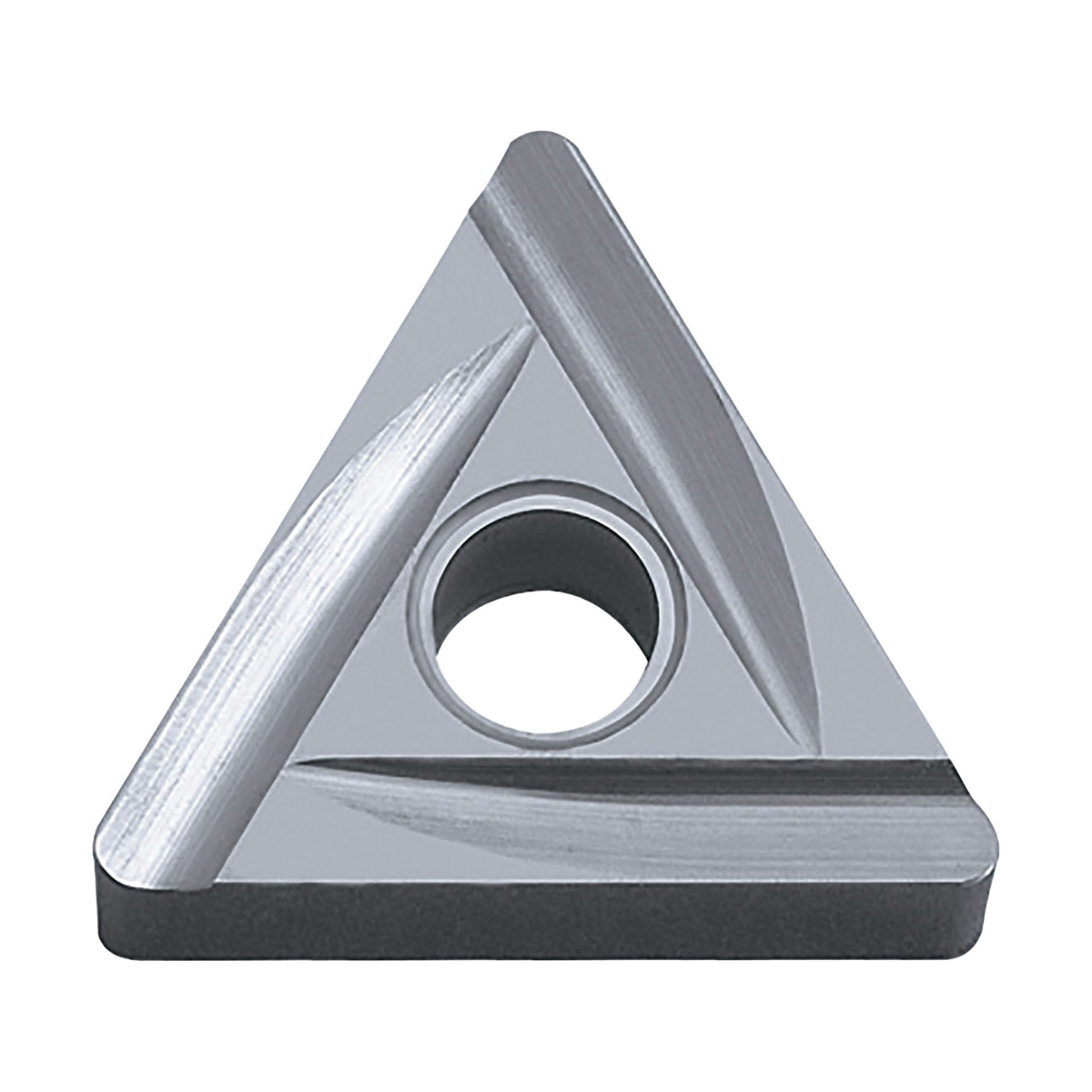

TNGG331LCTN620 TURNING INSERT

TNGG331LCTN620 TURNING INSERT

KYOCTSR05970 TSR05970
12.84 / EA
http://schema.org/OutOfStock
TNGG331LCTN620 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: C
  • Corner Radius: 0.0157in
  • Hand Direction: Left Hand
  • Hole Diameter: 0.15in
  • Included Angle: 60°
  • Inscribed Circle: 3/8in
  • Insert Size: #331
  • Insert Style: TNGG
  • ISO Code: TNGG160404L-C
  • Material: Cermet
  • Material Grade: P
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 16
  • Shape: Triangular
  • Surface Treatment: Uncoated/TiCN Coated
  • Thickness: 0.1874in
  • Type: 6-Cutting Edge
  • ANSI Code: TNGG331LCTN620
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TN620
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, Chamfering, Copying, External Turning, Facing and Up Facing Applications
  • Cast iron with 6-cutting edges
  • Inner structure has high toughness and chipping resistance along with thermal shock resistance
  • Recommended cermet for stable steel machining and high quality surface finish
  • https://youtu.be/moxzwEbjweU
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
