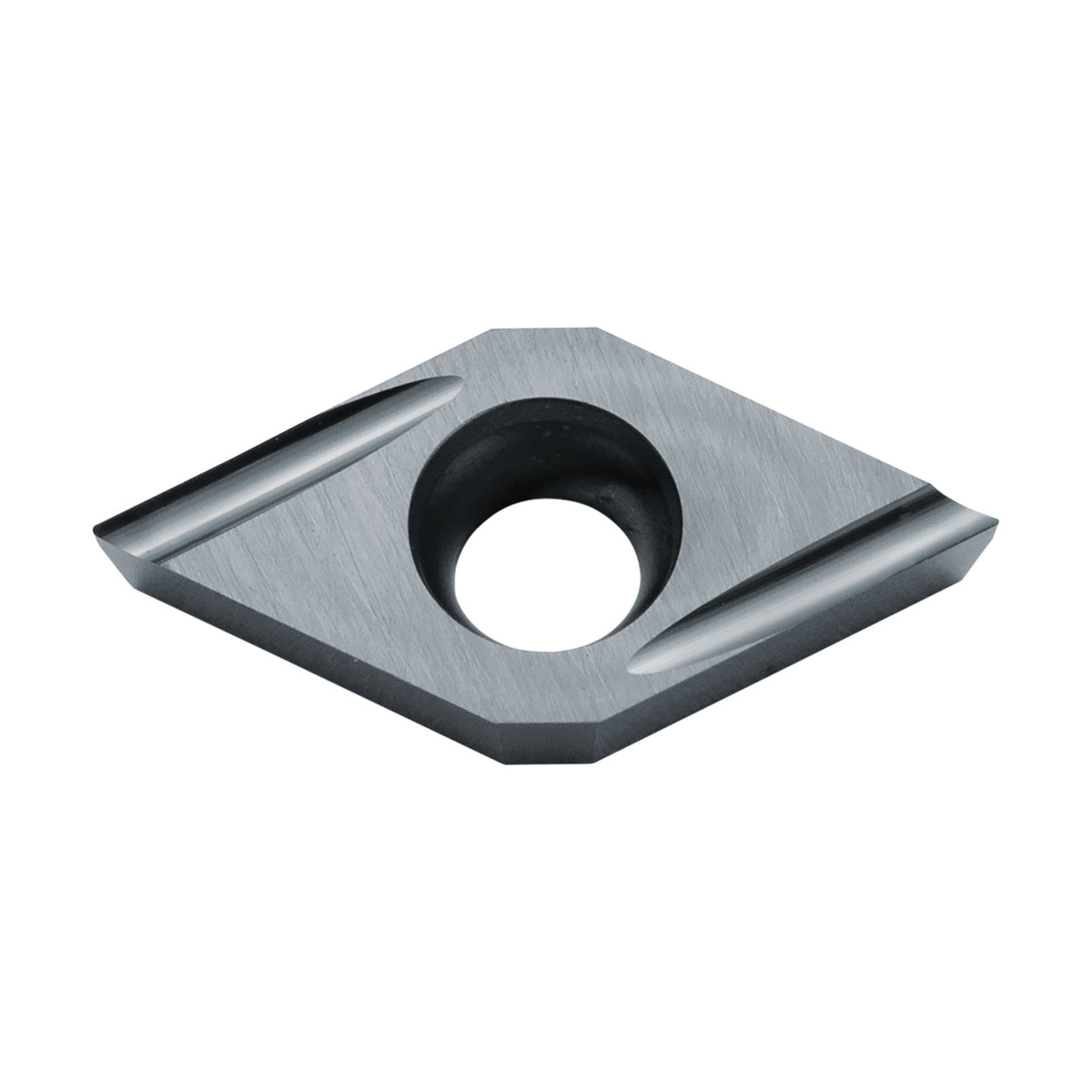

DCET32505MFLUTN620 TURNING INSERT
DCET32505MFLUTN620 TURNING INSERT
KYOCTSR02750
TSR02750
17.42
/ EA
http://schema.org/OutOfStock
/Product/KYOCTSR02750
- Applicable Materials: Carbon/Alloy Steel
- Chipbreaker: U
- Corner Radius: 0.0079in
- Hand Direction: Left Hand
- Hole Diameter: 0.1732in
- Included Angle: 55°
- Inscribed Circle: 3/8in
- Insert Size: #32505
- Insert Style: DCET
- ISO Code: DCET11T302MFL-U
- Material: Cermet
- Material Grade: P
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 11
- Shape: Diamond
- Surface Treatment: Uncoated/TiCN Coated
- Thickness: 0.1563in
- Type: 2-Cutting Edge
- ANSI Code: DCET32505MFLUTN620
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: TN620
- Manufacturer Name: KYOCERA Precision Tools
- Series: ISOI
- Application
- Item Features
- Standards
Back Boring, Copying, External Turning and Sub-Spindle Applications
- Sharp edge/minus tolerance corner radius with 2-cutting edges
- Inner structure has high toughness and chipping resistance along with thermal shock resistance
- Recommended cermet for stable steel machining and high quality surface finish
- https://youtu.be/moxzwEbjweU
