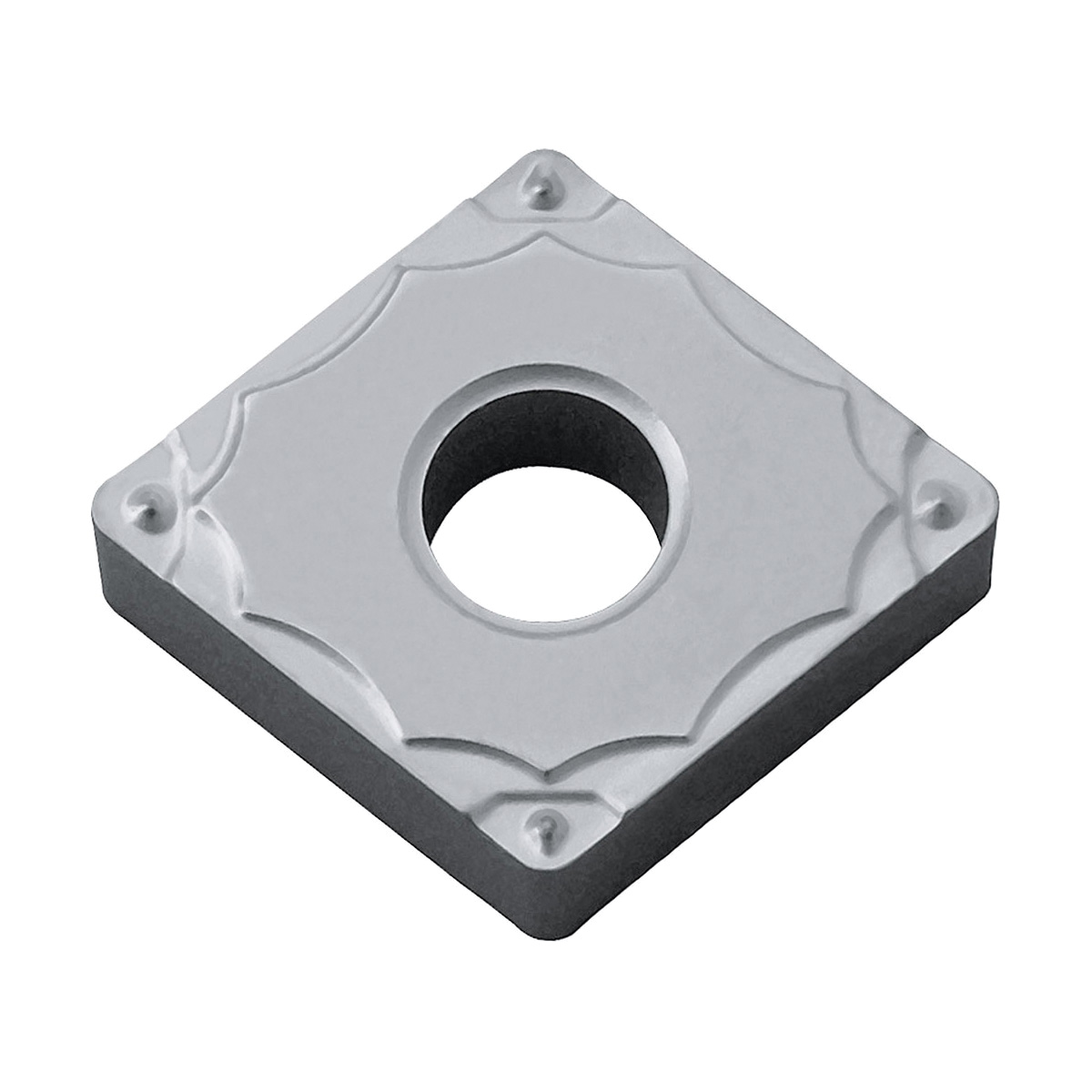

CNMG4305GPTN620 TURNING INSERT

CNMG4305GPTN620 TURNING INSERT

KYOCTSR01750 TSR01750
8.96 / EA
http://schema.org/OutOfStock
CNMG4305GPTN620 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: GP
  • Corner Radius: 0.0079in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #4305
  • Insert Style: CNMG
  • ISO Code: CNMG120402GP
  • Material: Cermet
  • Material Grade: P
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Diamond
  • Surface Treatment: Uncoated/TiCN Coated
  • Thickness: 0.1874in
  • Type: 4-Cutting Edge
  • ANSI Code: CNMG4305GPTN620
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TN620
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, External Turning, Facing and Internal Facing Applications
  • Inner structure has high toughness and chipping resistance along with thermal shock resistance
  • Recommended cermet for stable steel machining and high quality surface finish
