KYOCERA PRECISION TOOLS

CNGG432R25RTN620 TURNING INSERT

CNGG432R25RTN620 TURNING INSERT

KYOCTSR01669 TSR01669
16.59 / EA
http://schema.org/OutOfStock

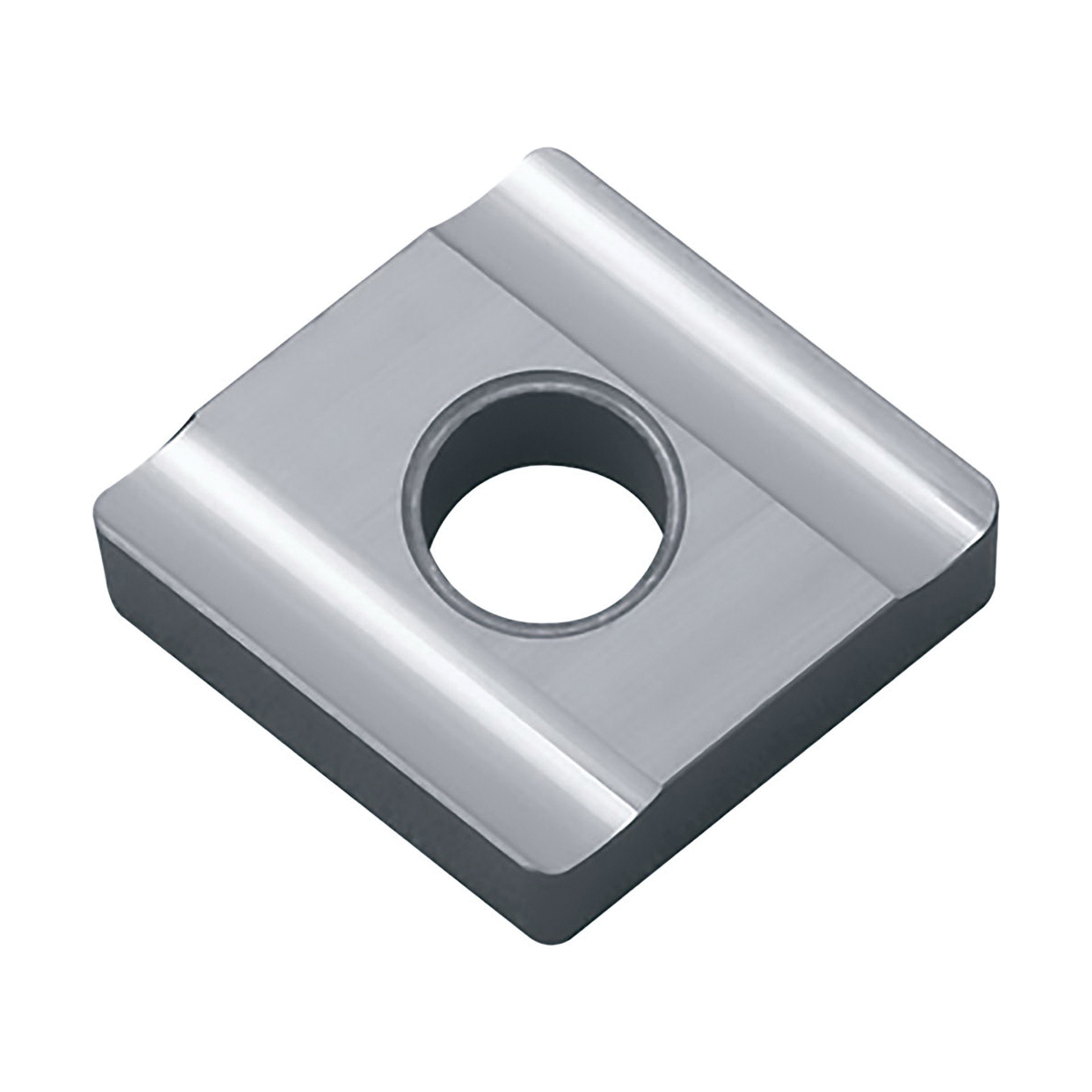

CNGG432R25RTN620 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: 25R
  • Corner Radius: 1/32in
  • Hand Direction: Right Hand
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #432
  • Insert Style: CNGG
  • ISO Code: CNGG120408R-25R
  • Material: Cermet
  • Material Grade: P
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Rhombic
  • Surface Treatment: Uncoated/TiCN Coated
  • Thickness: 3/16in
  • Type: 4-Cutting Edge
  • ANSI Code: CNGG432R25RTN620
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TN620
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • Low cutting force
  • Inner structure has high toughness and chipping resistance along with thermal shock resistance
  • Recommended cermet for stable steel machining and high quality surface finish
  • Applicable to sticky material such as low carbon steel
  • Large rake angle and suitable for stainless steel
  • Low cutting force with 4 cutting edges
ECCN: EAR99
