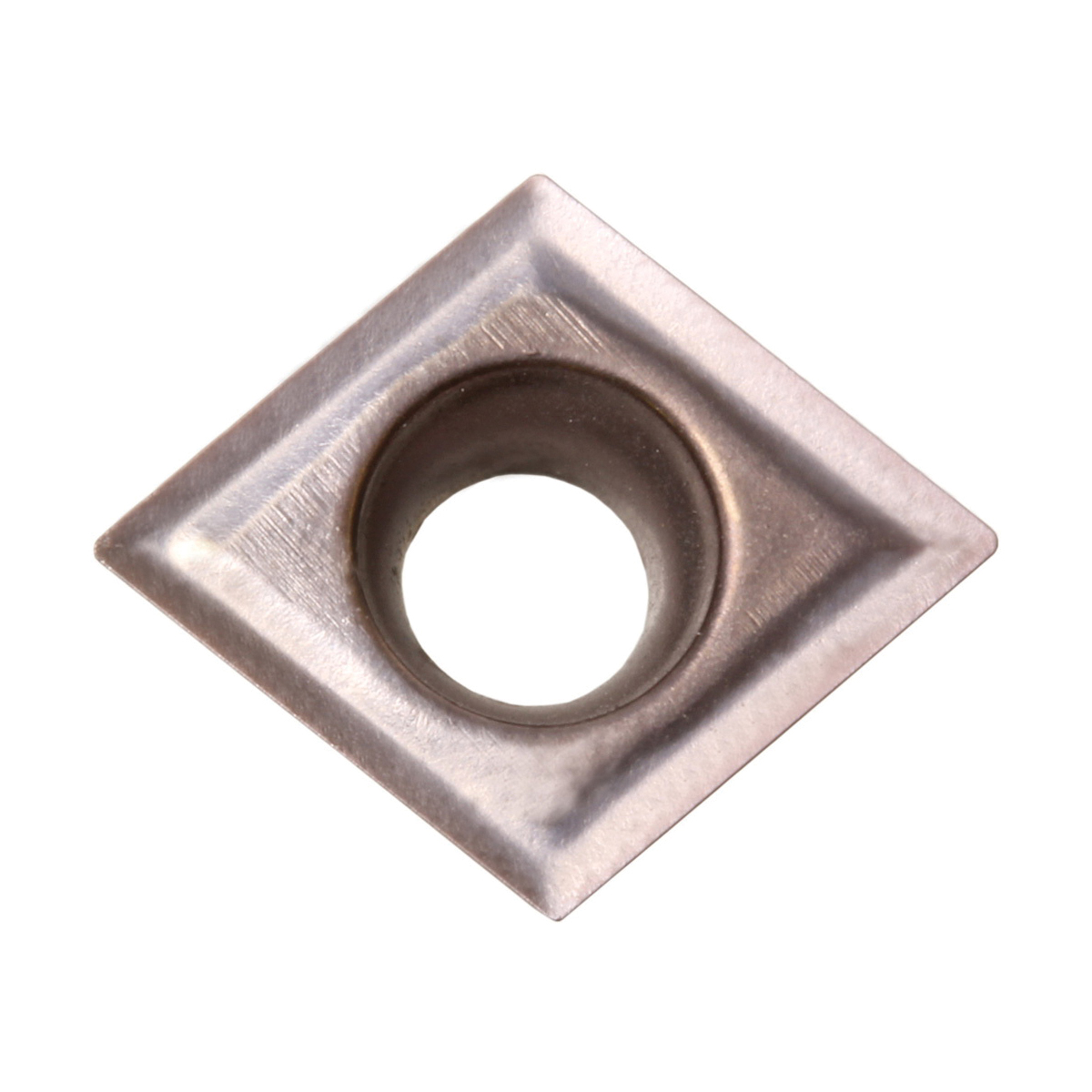

CPGT3252TN60 TURNING INSERT

CPGT3252TN60 TURNING INSERT

KYOCTSJ89056 TSJ89056
11.56 / EA
http://schema.org/OutOfStock
CPGT3252TN60 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Corner Radius: 1/32in
  • Hand Direction: Neutral
  • Hole Diameter: 0.1772in
  • Included Angle: 80°
  • Inscribed Circle: 3/8in
  • Insert Size: #3252
  • Insert Style: CPGT
  • ISO Code: CPGT3252TN60
  • Material: Cermet
  • Material Grade: P
  • Rake: Positive
  • Relief Angle: 11°
  • Seat Size: 32
  • Shape: Rhombic
  • Surface Treatment: Uncoated/TiCN/NbC Coated
  • Thickness: 5/32in
  • Type: 2-Cutting Edge
  • ANSI Code: CPGT3252TN60
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TN60
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring and Internal Facing Applications
  • General purpose cermet with superior wear resistance and toughness
  • Cutting of steel and stainless steel
ECCN: EAR99
