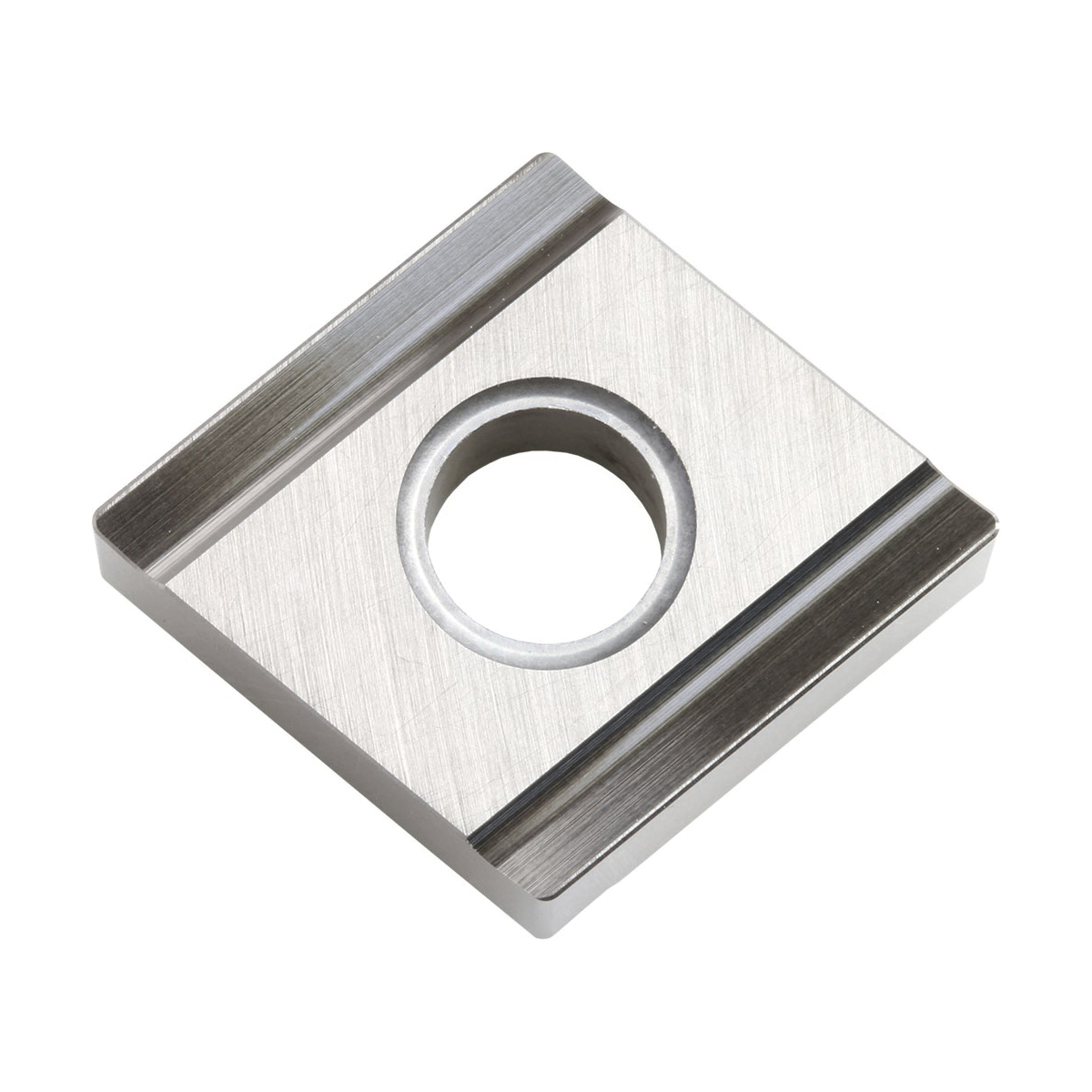

CNGG4302FLTN60 TURNING INSERT

CNGG4302FLTN60 TURNING INSERT

KYOCTSJ89036 TSJ89036
18.33 / EA
http://schema.org/OutOfStock
CNGG4302FLTN60 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: F
  • Corner Radius: 0.0039in
  • Hand Direction: Left Hand
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #4302
  • Insert Style: CNGG
  • ISO Code: CNGG4302FLTN60
  • Material: Cermet
  • Material Grade: P
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 43
  • Shape: Rhombic
  • Surface Treatment: Uncoated/TiCN/NbC Coated
  • Thickness: 3/16in
  • Type: 4-Cutting Edge
  • ANSI Code: CNGG4302FLTN60
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TN60
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • General purpose cermet with superior wear resistance and toughness
  • Cutting of steel and stainless steel
  • Good chip control at finishing to light machining with low cutting force
  • Sharp edge with 4 cutting edges
ECCN: EAR99
