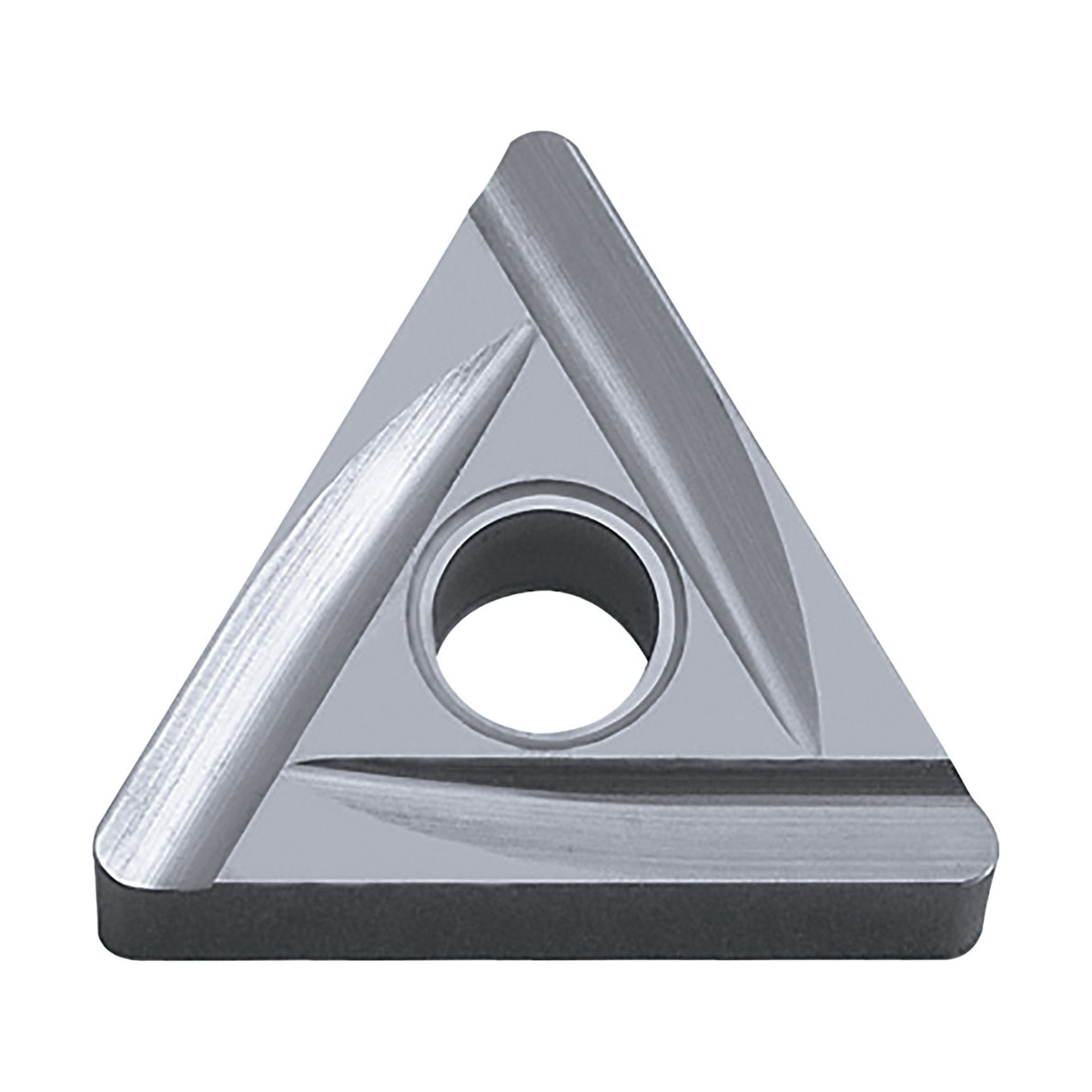

TNGG331LCTN60 TURNING INSERT
TNGG331LCTN60 TURNING INSERT
KYOCTSJ01840
TSJ01840
12.84
/ EA
http://schema.org/OutOfStock
/Product/KYOCTSJ01840
- Applicable Materials: Carbon/Alloy Steel
- Chipbreaker: C
- Corner Radius: 1/64in
- Hand Direction: Left Hand
- Hole Diameter: 0.15in
- Included Angle: 60°
- Inscribed Circle: 3/8in
- Insert Size: #331
- Insert Style: TNGG
- ISO Code: TNGG331LCTN60
- Material: Cermet
- Material Grade: P
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 33
- Shape: Triangle
- Surface Treatment: Uncoated/TiCN/NbC Coated
- Thickness: 3/16in
- Type: 6-Cutting Edge
- ANSI Code: TNGG331LCTN60
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: TN60
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
External Turning, Facing, Up Facing, Copying, Chamfering and Boring Applications
- Cast iron with 6 cutting edges
- General purpose cermet with superior wear resistance and toughness
- High feed rate chipbreaker for continuous to light interrupted machining of cast iron
- Suitable for general purpose machining at feed rate 0.2 to 0.35 mm/rev
- Applicable to high load machining
- Good chip flow and less resistance
- Cutting of steel and stainless steel
ECCN: EAR99
