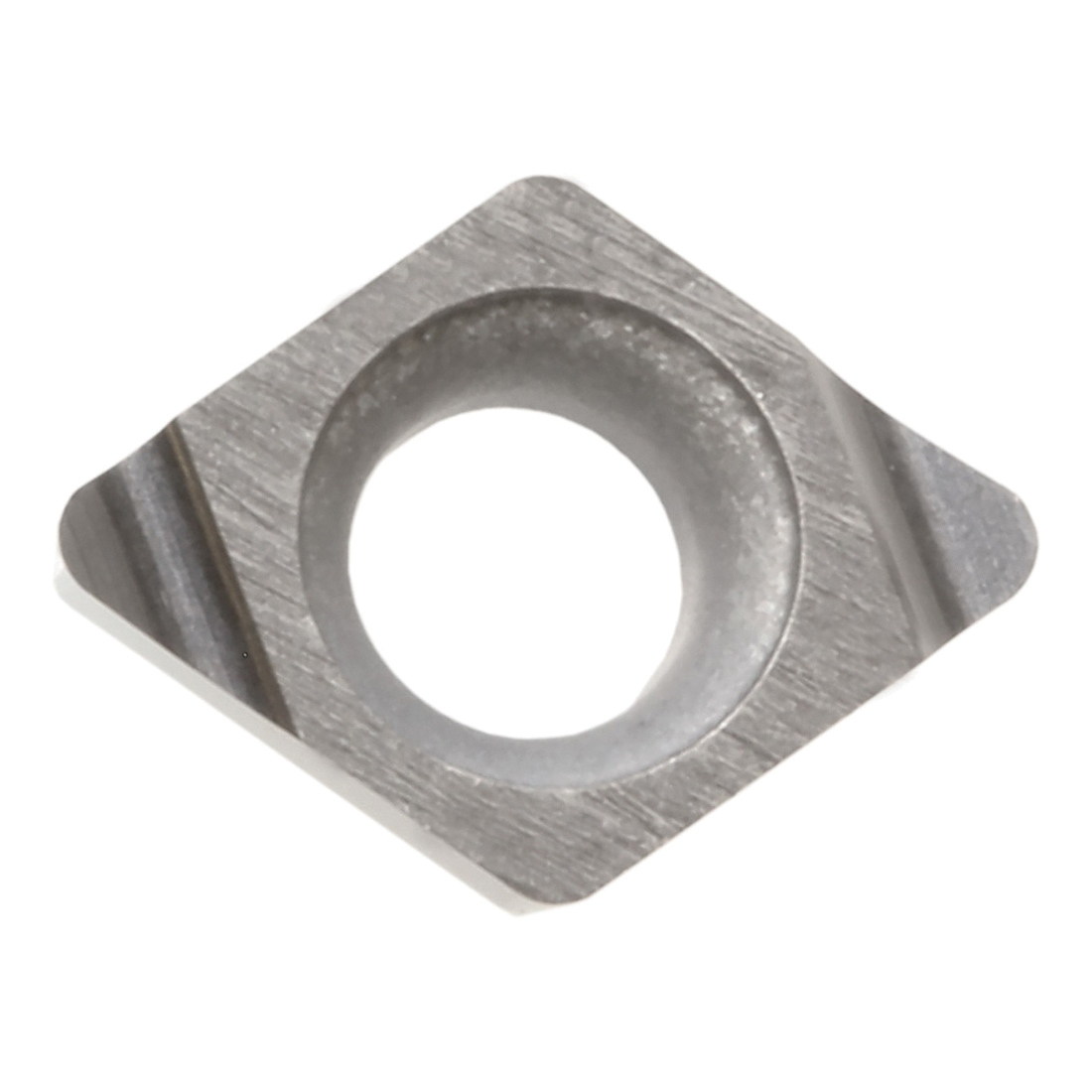

JCGT11091RFTN60 TURNING INSERT

JCGT11091RFTN60 TURNING INSERT

KYOCTSJ00997 TSJ00997
14.93 / EA
http://schema.org/OutOfStock
JCGT11091RFTN60 TURNING INSERT
  • Applicable Materials: Steel
  • Chipbreaker: F
  • Corner Radius: 0.004in
  • Hand Direction: Right Hand
  • Hole Diameter: 0.075in
  • Included Angle: 70°
  • Inscribed Circle: 0.138in
  • Insert Size: 1109
  • Insert Style: JCGT
  • ISO Code: JCGT030104R-F TN60
  • Material: Cermet
  • Material Grade: P
  • Rake: Positive
  • Relief Angle: 7°
  • Seat Size: 03, 3
  • Shape: Rhombic
  • Surface Treatment: TiCN/NbC Coated
  • Thickness: 1/8in
  • Type: 1-Sided
  • ANSI Code: JCGT11091RF TN60
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TN60
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
Finishing and General Turning
  • F chipbreaker - good chip control during finishing to light machining with low cutting forces
  • Sharp edge
  • TN60 grade general purpose cermet with superior wear resistance and toughness
  • Cutting of steel and stainless steel
