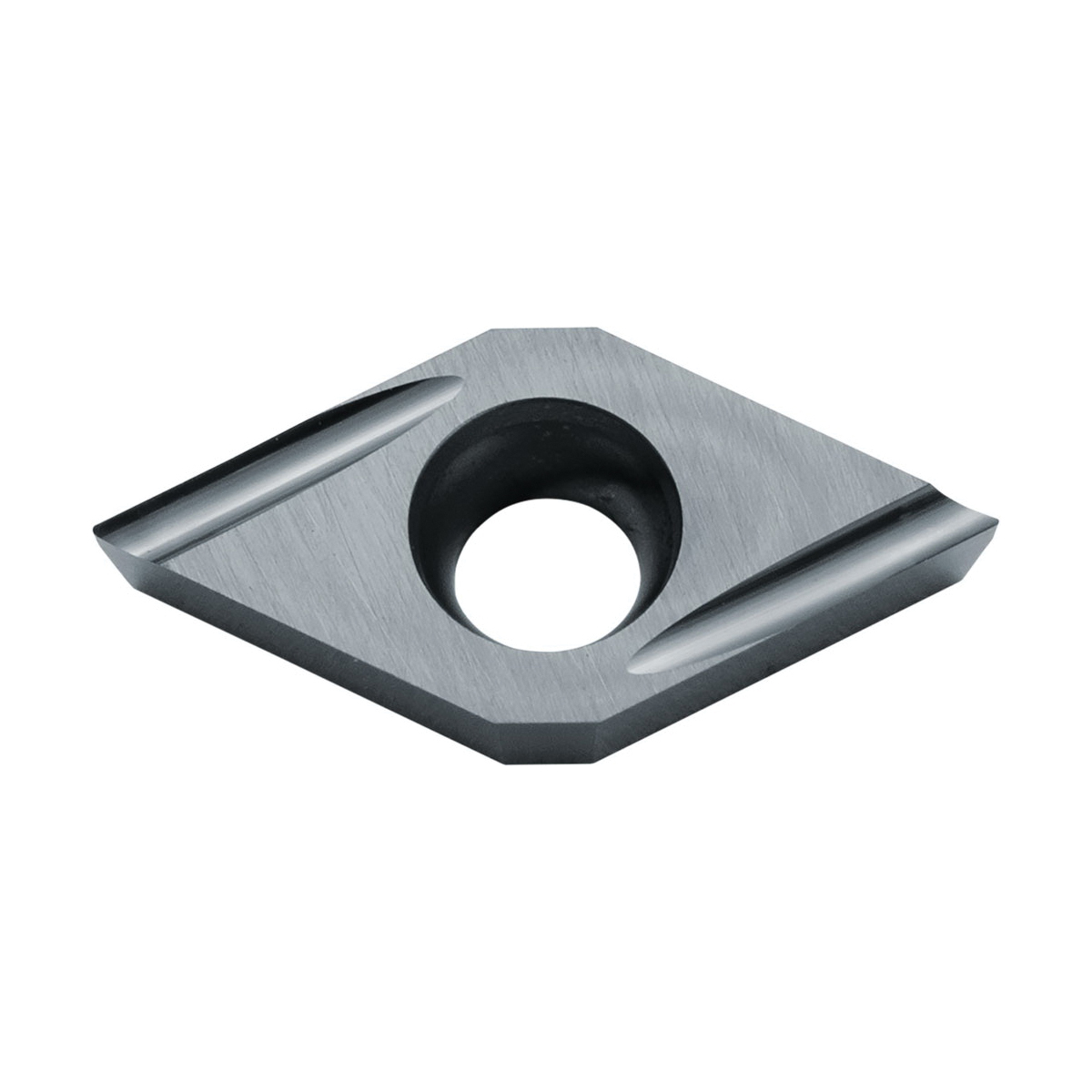

DCGT21502FLUTN60 TURNING INSERT

DCGT21502FLUTN60 TURNING INSERT

KYOCTSJ00530 TSJ00530
15.03 / EA
http://schema.org/OutOfStock
DCGT21502FLUTN60 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: U
  • Corner Radius: 0.0039in
  • Hand Direction: Left Hand
  • Hole Diameter: 0.1102in
  • Included Angle: 55°
  • Inscribed Circle: 1/4in
  • Insert Size: #21502
  • Insert Style: DCGT
  • ISO Code: DCGT070201FL-U
  • Material: Cermet
  • Material Grade: P
  • Rake: Positive
  • Relief Angle: 7°
  • Seat Size: 7
  • Shape: Rhombic
  • Surface Treatment: Uncoated/TiCN/NbC Coated
  • Thickness: 3/32in
  • Type: 2-Cutting Edge
  • ANSI Code: DCGT21502FLUTN60
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TN60
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Copying, Back Boring and Sub-Spindle Applications
  • General purpose cermet with superior wear resistance and toughness
  • Cutting of steel and stainless steel
  • Good chip control at low feed rate and varied ap with low cutting force
  • Sharp edge with 2 cutting edges
ECCN: EAR99
