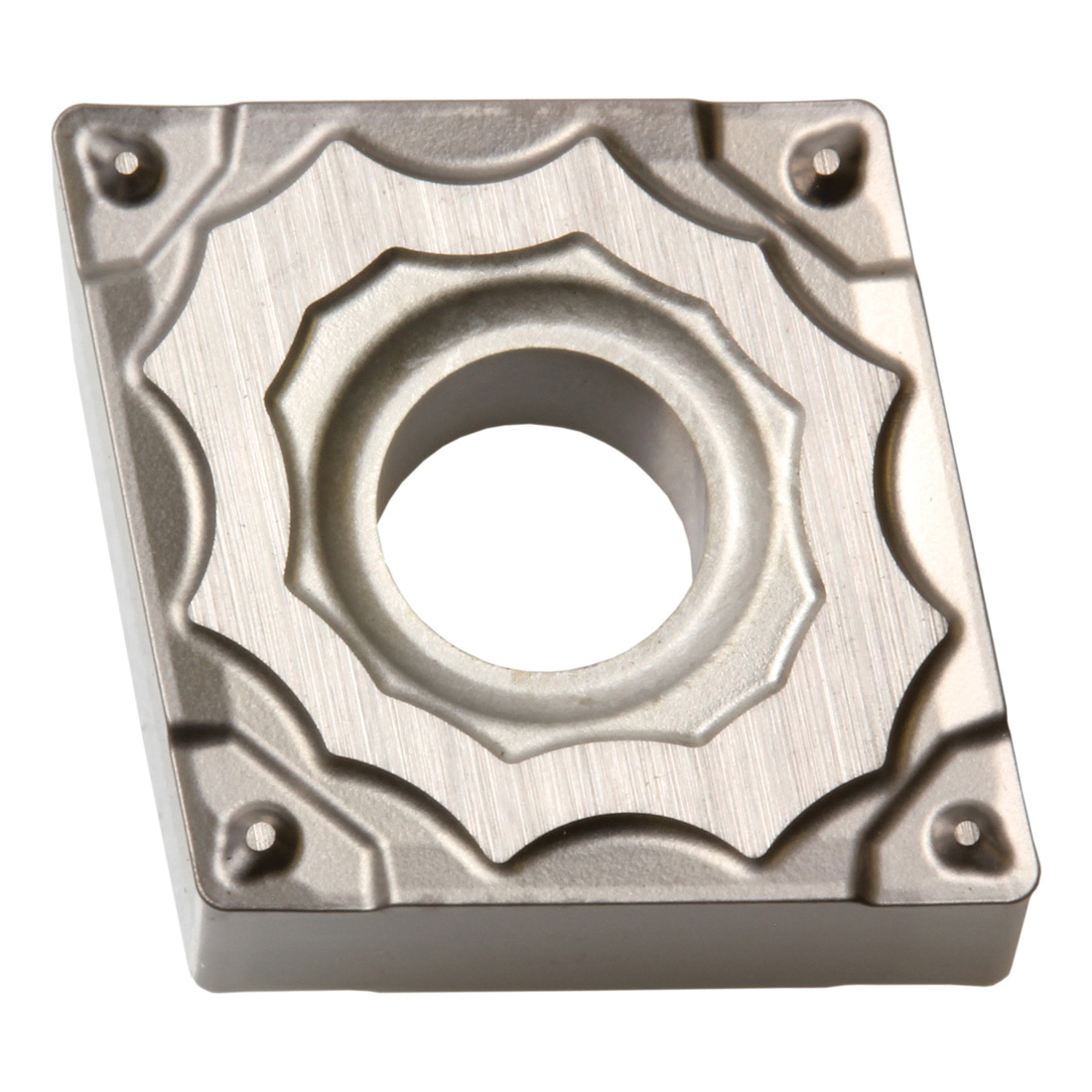

CNMG331GPTN60 TURNING INSERT

CNMG331GPTN60 TURNING INSERT

KYOCTSJ00471 TSJ00471
7.16 / EA
http://schema.org/OutOfStock
CNMG331GPTN60 TURNING INSERT
  • Applicable Materials: Steel
  • Chipbreaker: GP
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.15in
  • Included Angle: 80°
  • Inscribed Circle: 3/8in
  • Insert Size: 331
  • Insert Style: CNMG
  • ISO Code: CNMG090404GP TN60
  • Material: Cermet
  • Material Grade: P
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 9
  • Shape: Diamond
  • Surface Treatment: TiCN/NbC Coated
  • Thickness: 3/16in
  • Type: 2-Sided
  • ANSI Code: CNMG331GP TN60
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TN60
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
Finishing and General Turning
  • GP chipbreaker - finishing to light machining
  • Good chip control
  • TN60 grade general purpose cermet with superior wear resistance and toughness
  • Cutting of steel and stainless steel
