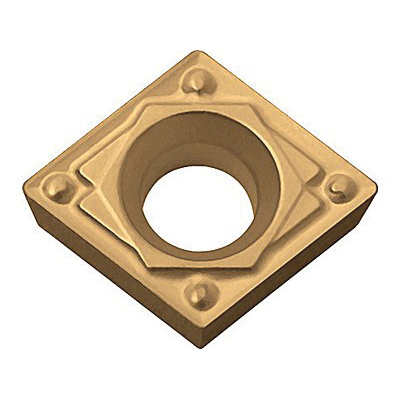

CPMH321HQTN60 TURNING INSERT

CPMH321HQTN60 TURNING INSERT

KYOCTSJ00375 TSJ00375
9.26 / EA
http://schema.org/OutOfStock
CPMH321HQTN60 TURNING INSERT
  • Applicable Materials: Steel
  • Chipbreaker: HQ
  • Corner Radius: 0.4in
  • Hole Diameter: 4-1/2in
  • Included Angle: 80°
  • Inscribed Circle: 9.525mm
  • Insert Size: 903
  • Insert Style: CPMH
  • ISO Code: CPMH090304HQ TN60
  • Material: Cermet
  • Relief Angle: 11°
  • Shape: Rhombic
  • Surface Treatment: TiCNNbC Coated
  • Thickness: 3.18in
  • Type: Single Sided
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TN60
  • Manufacturer Name: KYOCERA Precision Tools
