KYOCERA PRECISION TOOLS

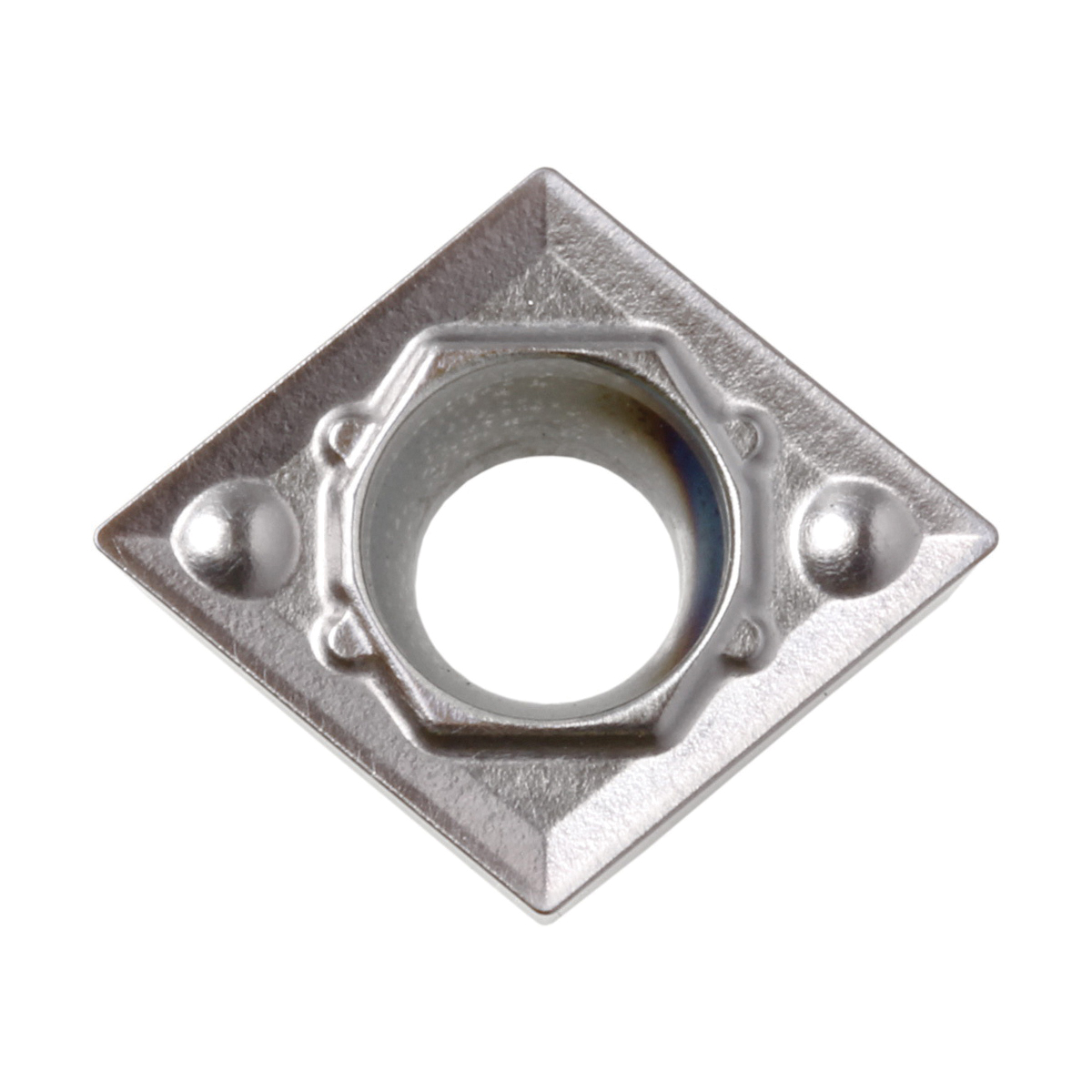

CCMT21505HQTN60 TURNING INSERT

CCMT21505HQTN60 TURNING INSERT

KYOCTSJ00242 TSJ00242
10.13 / EA
http://schema.org/OutOfStock
CCMT21505HQTN60 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: HQ
  • Corner Radius: 0.0079in
  • Hand Direction: Neutral
  • Hole Diameter: 0.1102in
  • Included Angle: 80°
  • Inscribed Circle: 1/4in
  • Insert Size: #21505
  • Insert Style: CCMT
  • ISO Code: CCMT060202HQ
  • Material: Cermet
  • Material Grade: P
  • Rake: Positive
  • Relief Angle: 7°
  • Seat Size: 6
  • Shape: Rhombic
  • Surface Treatment: Uncoated/TiCN/NbC Coated
  • Thickness: 3/32in
  • Type: 2-Cutting Edge
  • ANSI Code: CCMT21505HQTN60
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TN60
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • General purpose cermet with superior wear resistance and toughness
  • Cutting of steel and stainless steel
  • Sharp cutting performance with 3-D rake angle and double projection design
ECCN: EAR99
