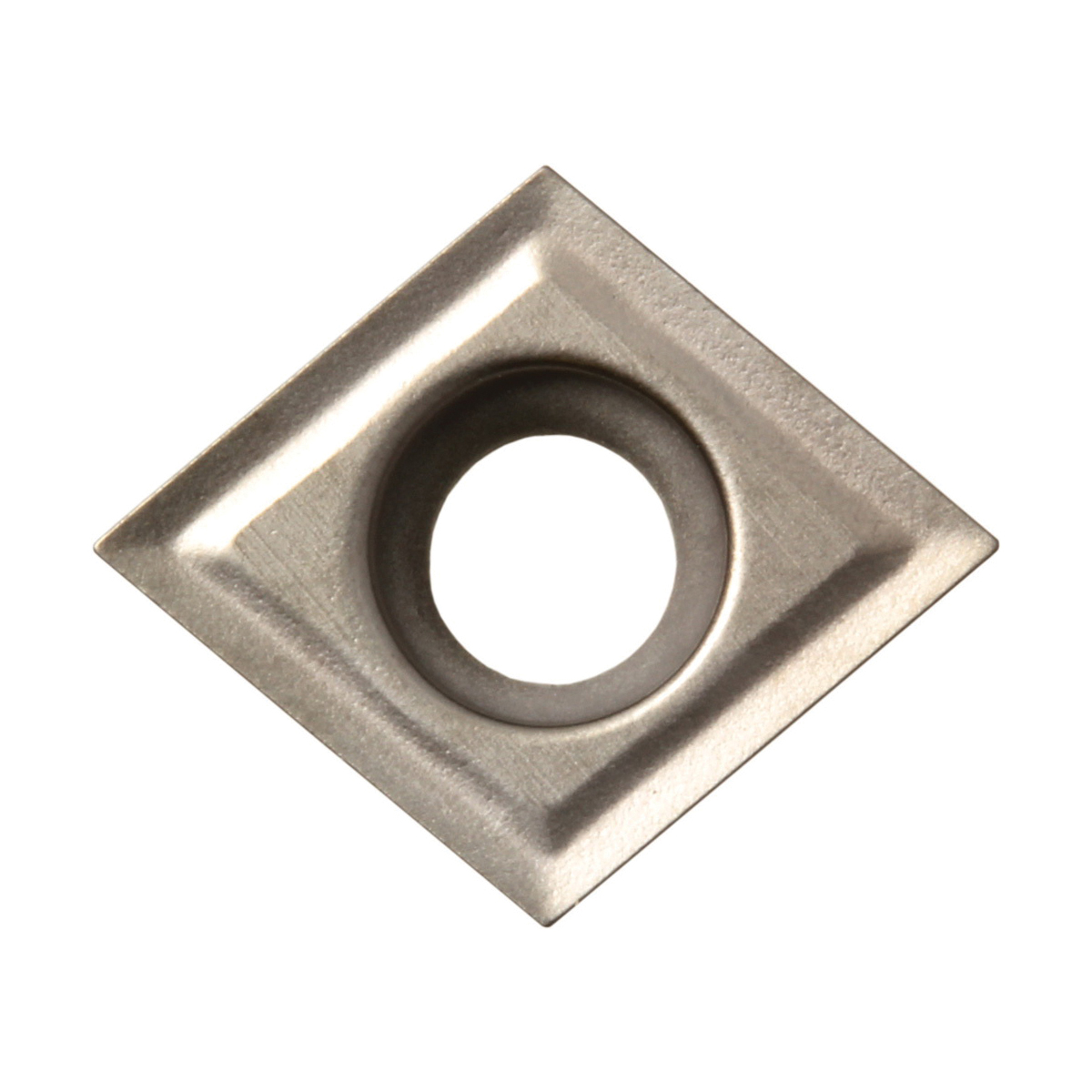

CCGT21502TN60 TURNING INSERT

CCGT21502TN60 TURNING INSERT

KYOCTSJ00010 TSJ00010
10.33 / EA
http://schema.org/OutOfStock
CCGT21502TN60 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Corner Radius: 0.0039in
  • Hand Direction: Neutral
  • Hole Diameter: 0.1102in
  • Included Angle: 80°
  • Inscribed Circle: 1/4in
  • Insert Size: #21502
  • Insert Style: CCGT
  • ISO Code: CCGT21502TN60
  • Material: Cermet
  • Material Grade: P
  • Rake: Positive
  • Relief Angle: 7°
  • Seat Size: 21
  • Shape: Rhombic
  • Surface Treatment: Uncoated/TiCN/NbC Coated
  • Thickness: 3/32in
  • Type: 2-Cutting Edge
  • Manufacturer Grade: TN60
  • ANSI Code: CCGT21502TN60
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring, Internal Facing and Sub-Spindle Applications
  • General purpose cermet with superior wear resistance and toughness
  • Cutting of steel and stainless steel
ECCN: EAR99
