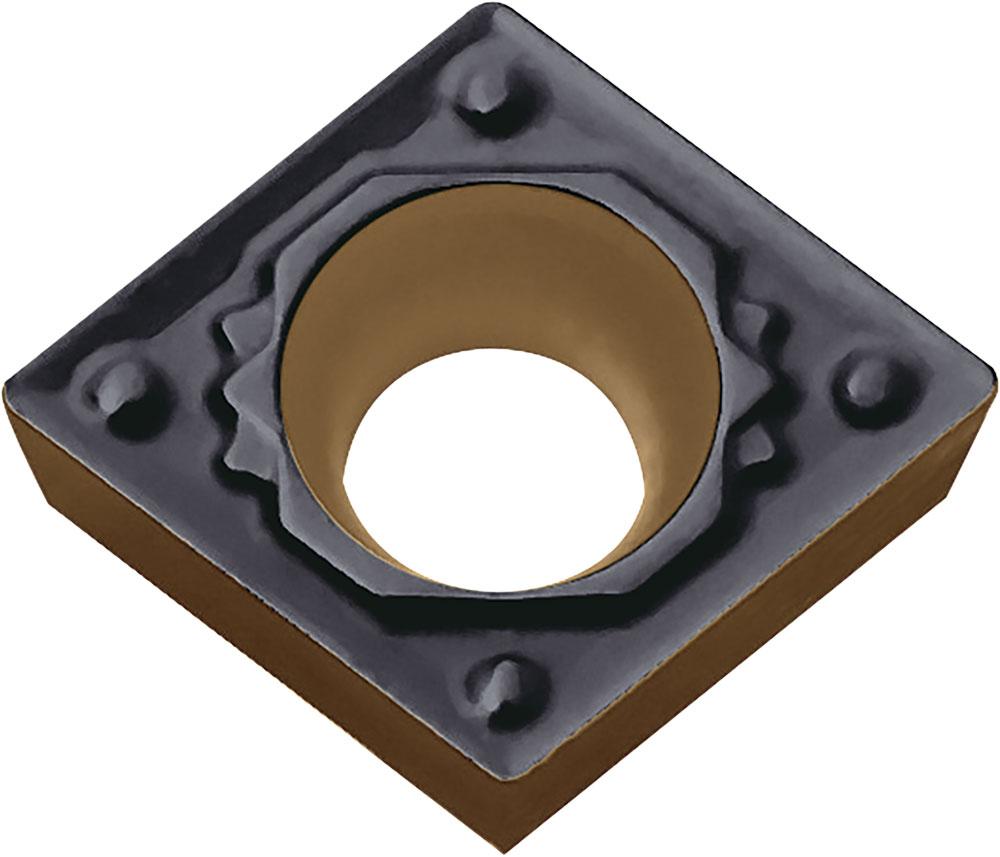

CCMT 2151HQ CA125P TURNING INSERT

CCMT 2151HQ CA125P TURNING INSERT

KYOCTMK00322 TMK00322
9.79 / EA
http://schema.org/OutOfStock
CCMT 2151HQ CA125P TURNING INSERT
  • Applicable Materials: Light Interruption and Finishing-Medium in (P) Carbon/Alloy Steel
  • Chipbreaker: HQ
  • Corner Radius: 1/64 in
  • Hand Direction: Neutral
  • Hole Diameter: 0.11 in
  • Included Angle: 80 deg
  • Inscribed Circle: 1/4 in
  • Insert Size: 2151HQ
  • Insert Style: CCMT
  • ISO Code: CCMT060204HQ
  • Material: Carbide
  • Material Grade: CA125P
  • Rake: Positive
  • Shape: Diamond
  • Surface Treatment: CVD
  • Thickness: 3/32 in
  • ANSI Code: CCMT2151HQCA125P
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
For Boring, External Turning, Facing, Internal Facing
  • Insert for Boring, External Turning, Facing, Internal Facing
  • 2 Cutting Edges
  • Next generation CVD technology for steel with longer tool life in a wide range of machining environments
  • New surface treatment technology improves fracture resistance and suppresses crater wear
  • Innovative crystal growth technology for ultra-uniform alumina patterns drastically increases wear resistance
ANSI
