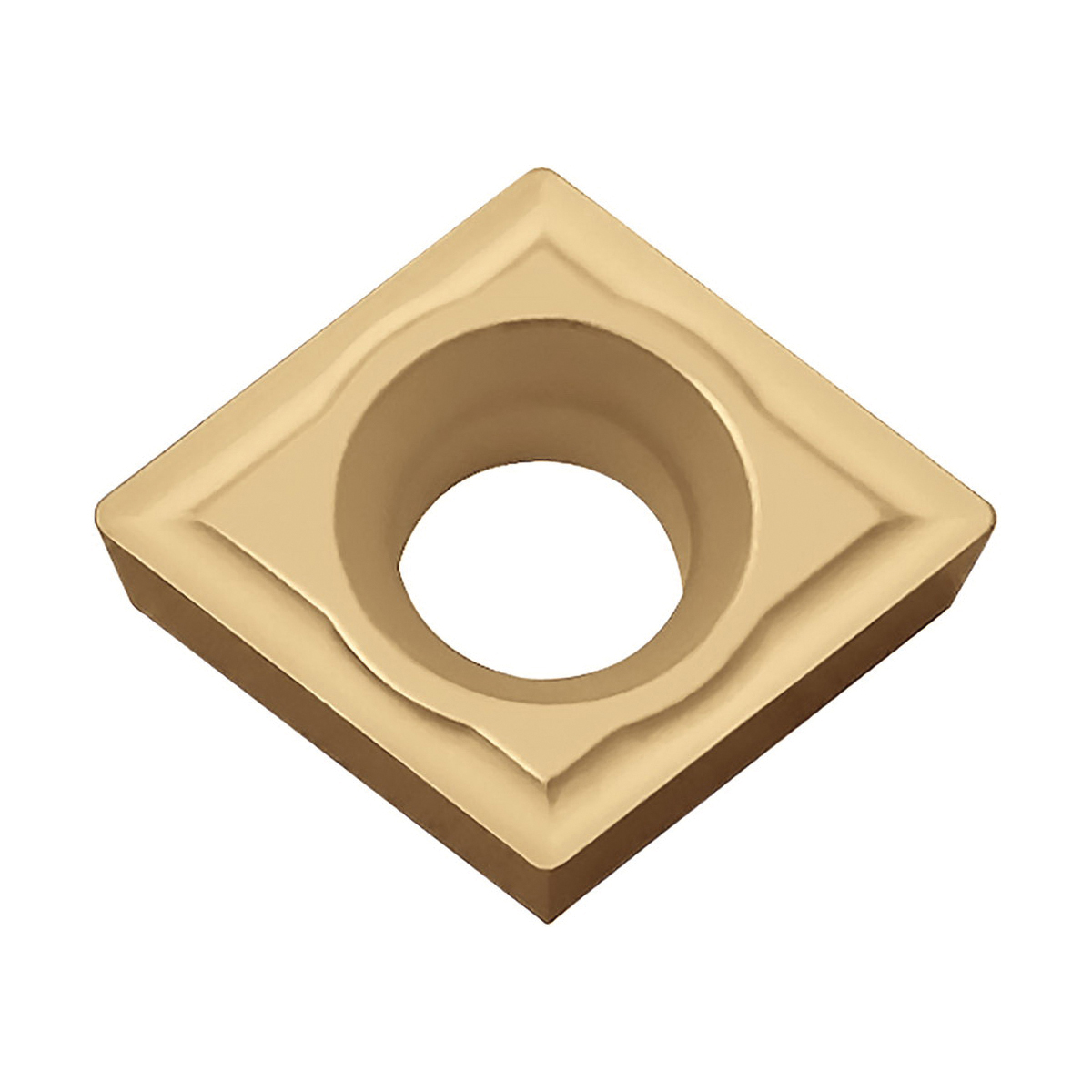

CPMH25151CA025P TURNING INSERT

CPMH25151CA025P TURNING INSERT

KYOCTMH00404 TMH00404
11.59 / EA
http://schema.org/OutOfStock
CPMH25151CA025P TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.1378in
  • Included Angle: 80°
  • Inscribed Circle: 5/16in
  • Insert Size: #25151
  • Insert Style: CPMH
  • ISO Code: CPMH080204
  • Material: Carbide
  • Material Grade: P
  • Rake: Positive
  • Relief Angle: 11°
  • Seat Size: 8
  • Shape: Rhombic
  • Surface Treatment: VDC-TiCN/Al2O3/TiN Coated
  • Thickness: 3/32in
  • Type: 2-Cutting Edge
  • ANSI Code: CPMH25151CA025P
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: CA025P
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring and Internal Facing Applications
  • Thickened alumina with good thermal resistance (twice as thick as conventional coating) and specialized post-coating process prevents adhesion
  • General to interrupted machining of steel
ECCN: EAR99
