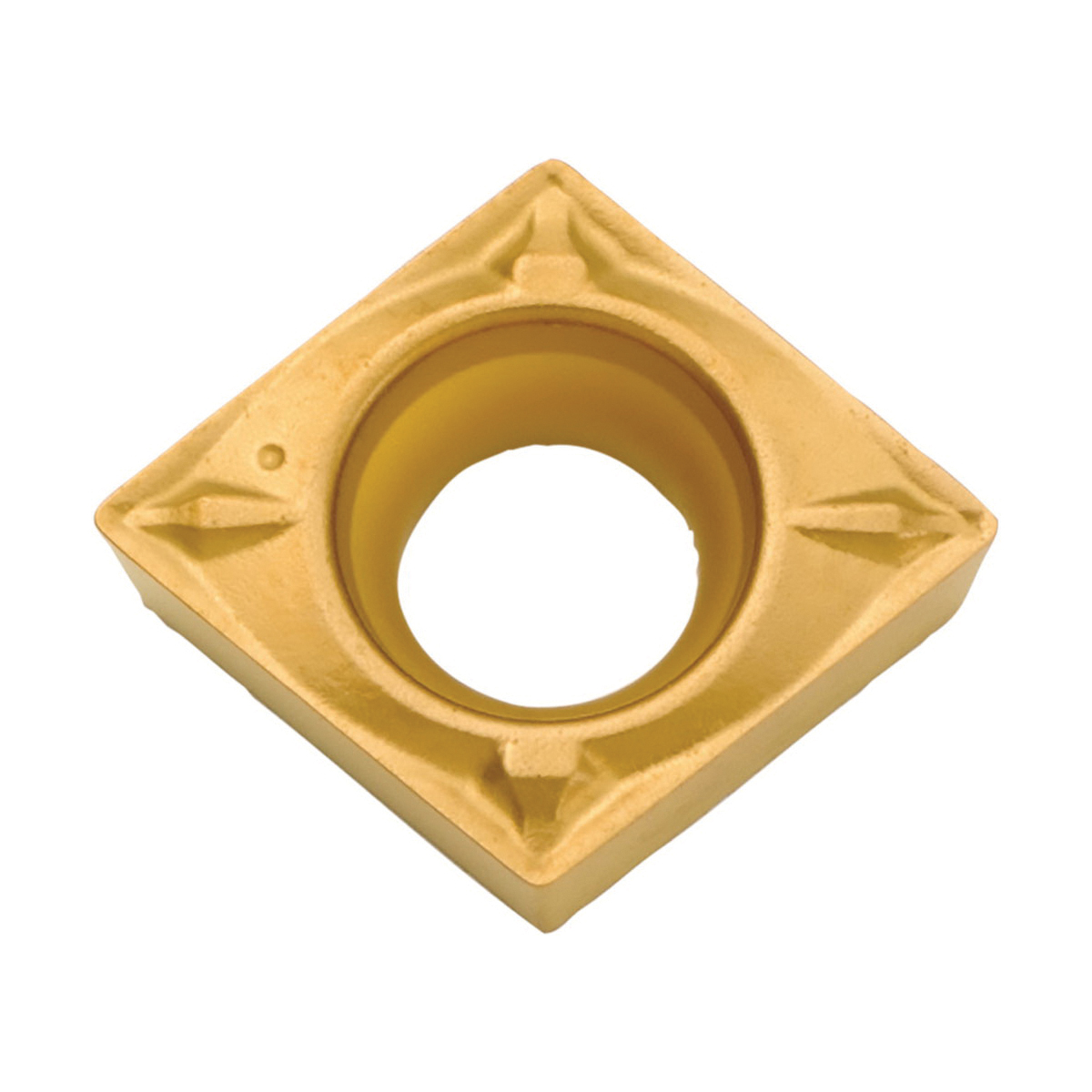

CCMT21505WPCA025P TURNING INSERT

CCMT21505WPCA025P TURNING INSERT

KYOCTMH00368 TMH00368
9.79 / EA
http://schema.org/OutOfStock
CCMT21505WPCA025P TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: WP
  • Corner Radius: 0.0079in
  • Hand Direction: Neutral
  • Hole Diameter: 0.1102in
  • Included Angle: 80°
  • Inscribed Circle: 1/4in
  • Insert Size: #21505
  • Insert Style: CCMT
  • ISO Code: CCMT060202WP
  • Material: Carbide
  • Material Grade: P
  • Rake: Positive
  • Relief Angle: 7°
  • Seat Size: 06, 6
  • Shape: Rhombic
  • Surface Treatment: VDC-TiCN/Al2O3/TiN Coated
  • Thickness: 3/32in
  • Type: 2-Cutting Edge
  • ANSI Code: CCMT21505WPCA025P
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: CA025P
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • Thickened alumina with good thermal resistance (twice as thick as conventional coating) and specialized post-coating process prevents adhesion
  • General to interrupted machining of steel
  • Good chip control at small machining
  • Wiper edge with 2 cutting edges
ECCN: EAR99
