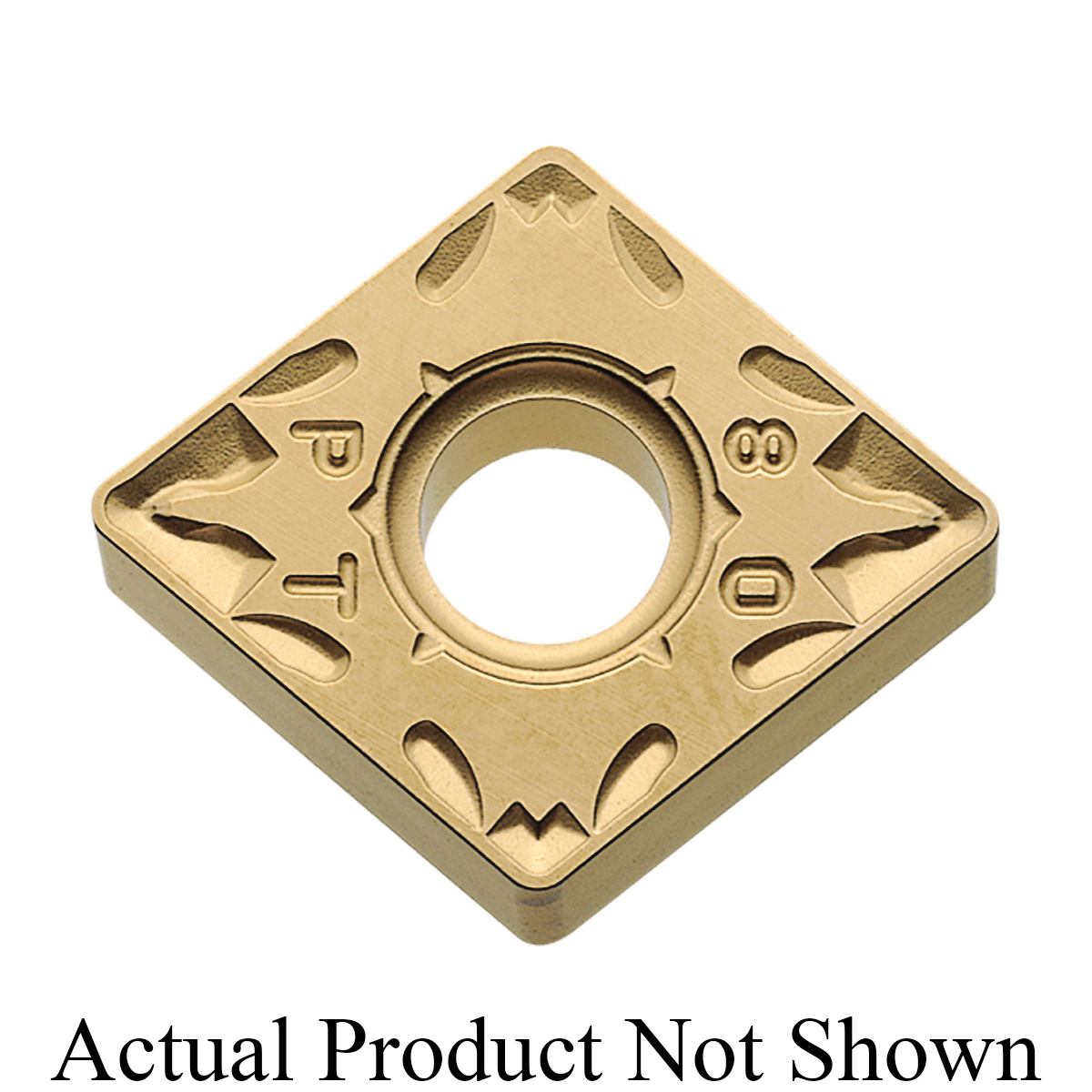

CNMG432PTCA025P TURNING INSERT

CNMG432PTCA025P TURNING INSERT

KYOCTMH00110 TMH00110
9.42 / EA
http://schema.org/OutOfStock
CNMG432PTCA025P TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: PT
  • Corner Radius: 1/32in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #432
  • Insert Style: CNMG
  • ISO Code: CNMG120408PT
  • Material: Carbide
  • Material Grade: P
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Rhombic
  • Surface Treatment: CVD/TiCl2O3/TiN Coated
  • Thickness: 3/16in
  • Type: 4-Cutting Edge
  • ANSI Code: CNMG432PTCA025P
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: CA025P
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • High feed rate with 4 cutting edges
  • Thickened alumina with good thermal resistance (twice as thick as conventional coating) and specialized post-coating process prevents adhesion
  • General to interrupted machining of steel
  • Low cutting force at high feed machining
  • Land support structure
ECCN: EAR99
