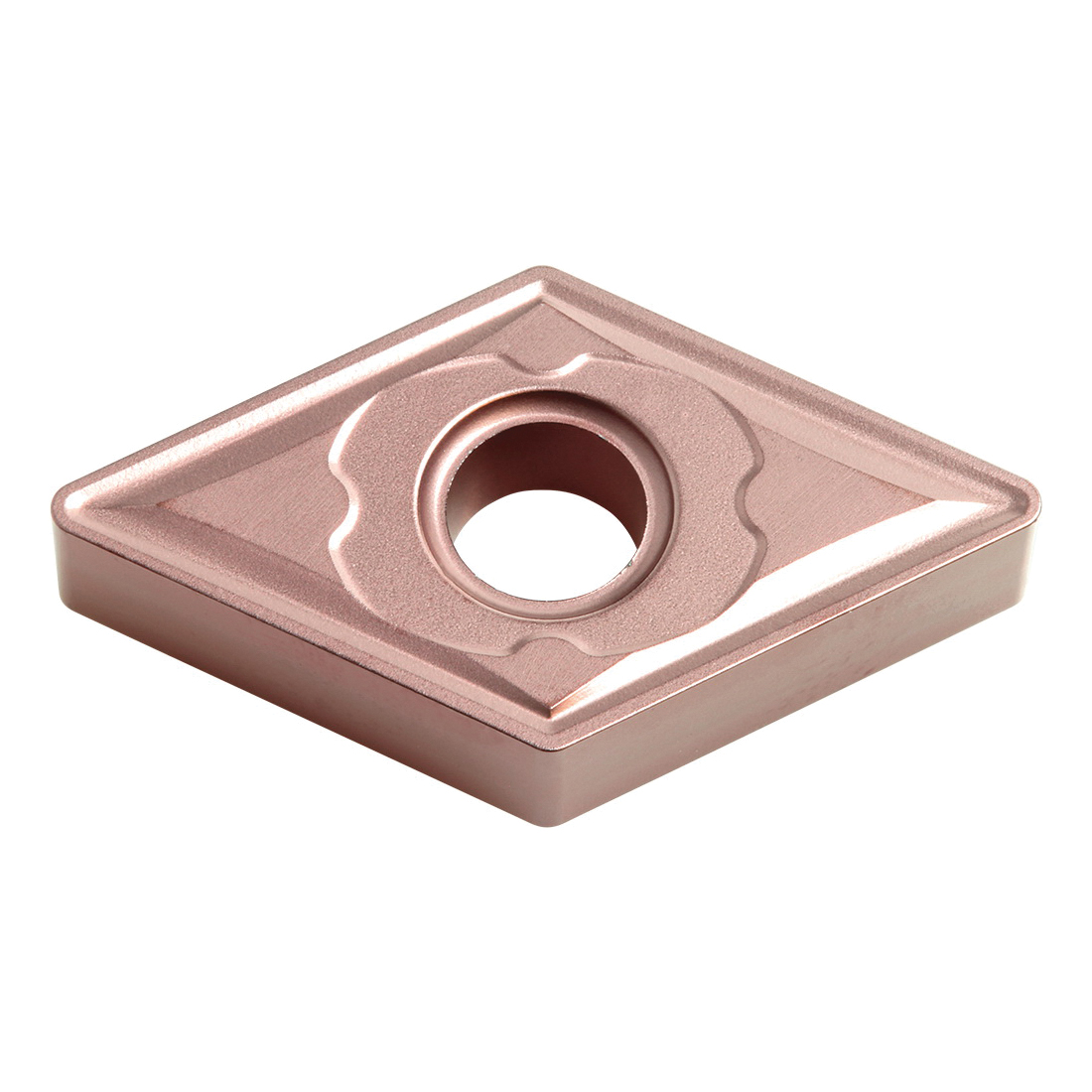

DNMG431CCA315 TURNING INSERT
DNMG431CCA315 TURNING INSERT
KYOCTMD01985
TMD01985
18.41
/ EA
http://schema.org/OutOfStock
/Product/KYOCTMD01985
- Applicable Materials: Cast Iron
- Chipbreaker: C
- Corner Radius: 1/64in
- Hand Direction: Neutral
- Hole Diameter: 0.203in
- Included Angle: 55°
- Inscribed Circle: 1/2in
- Insert Size: 431
- Insert Style: DNMG
- ISO Code: DNMG150404C CA315
- Material: Carbide
- Material Grade: K
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 15
- Shape: Rhombic
- Surface Treatment: CVD-TiCN/Al2O3 Coated
- Thickness: 3/16in
- Type: 2-Sided
- ANSI Code: DNMG431CCA315
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: CA315
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
Medium Roughing and General Turning
- Improved coating adhesion prevents chipping and provides stable machining
- Micro TiCN coating provides excellent wear resistance
- Hard surface layer - provides advanced wear resistance
- Strong intra coating adhesion - higher adhesion between each layer with improved crystal structure
- Micro TiCN layer - higher coating hardness is possible due to a micro TiCN crystal structure, resulting in increased wear resistance
- CA315 grade excellent performance for machining gray and nodular cast iron by optimizing the total coating layer thickness
