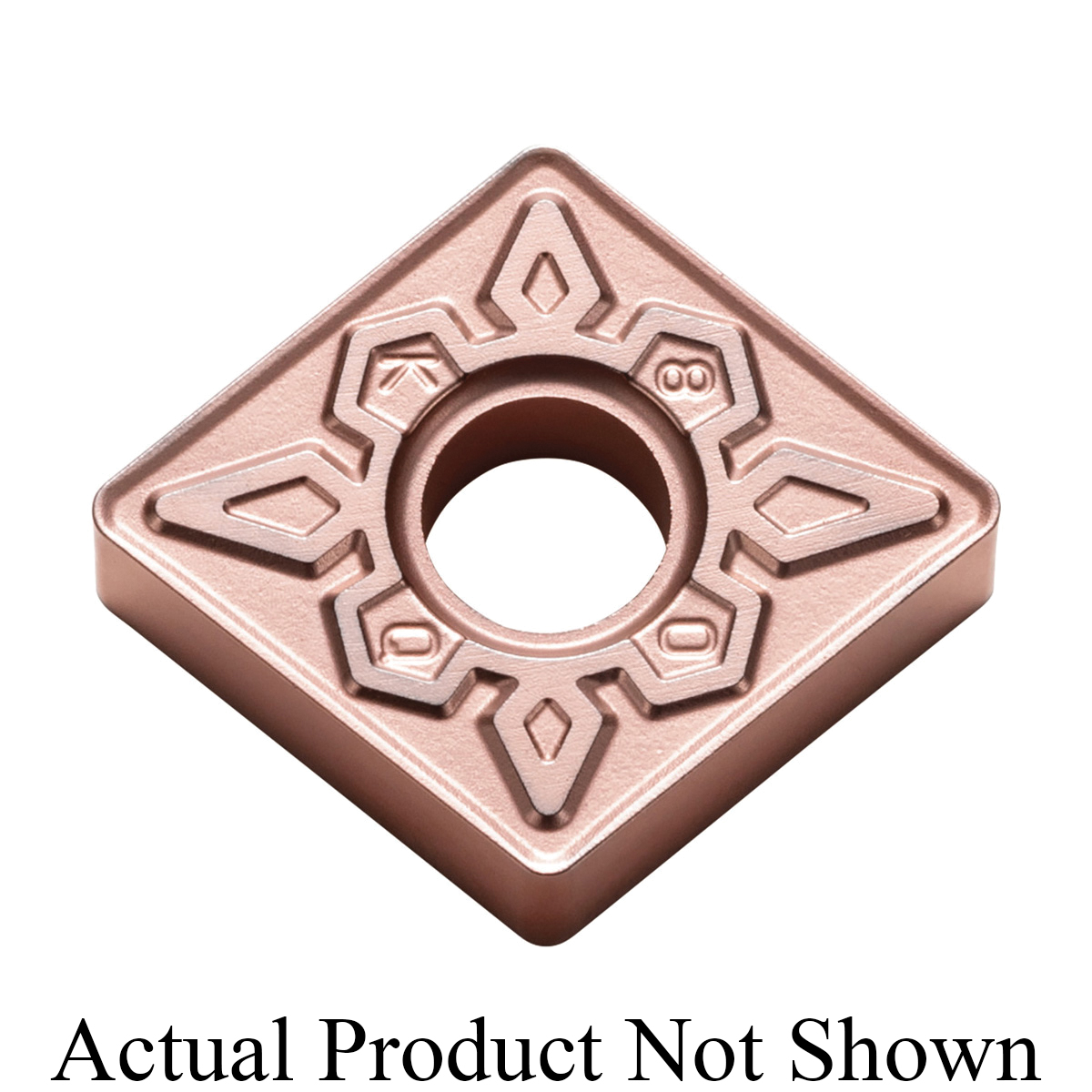

CNMG431KQCA315 TURNING INSERT

CNMG431KQCA315 TURNING INSERT

KYOCTMD01010 TMD01010
9.42 / EA
http://schema.org/OutOfStock
CNMG431KQCA315 TURNING INSERT
  • Applicable Materials: Gray Cast Iron and Nodular Cast Iron
  • Chipbreaker: KQ
  • Corner Radius: 0.0157in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #431
  • Insert Style: CNMG
  • ISO Code: CNMG120404KQ
  • Material: Carbide
  • Material Grade: K
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Diamond
  • Surface Treatment: CVD-TiCl2O3/TiN Coated
  • Thickness: 0.1874in
  • Type: 4-Cutting Edge
  • ANSI Code: CNMG431KQCA315
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: CA315
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, External Turning, Facing and Internal Facing Applications
  • Sharp edge/cast iron with 4-cutting edges
  • Excellent performance for machining gray and nodular cast iron by optimizing the total coating layer thickness
  • First choice for continuous to interrupted machining of nodular cast iron
  • https://youtu.be/5dgoPgJR5fQ
