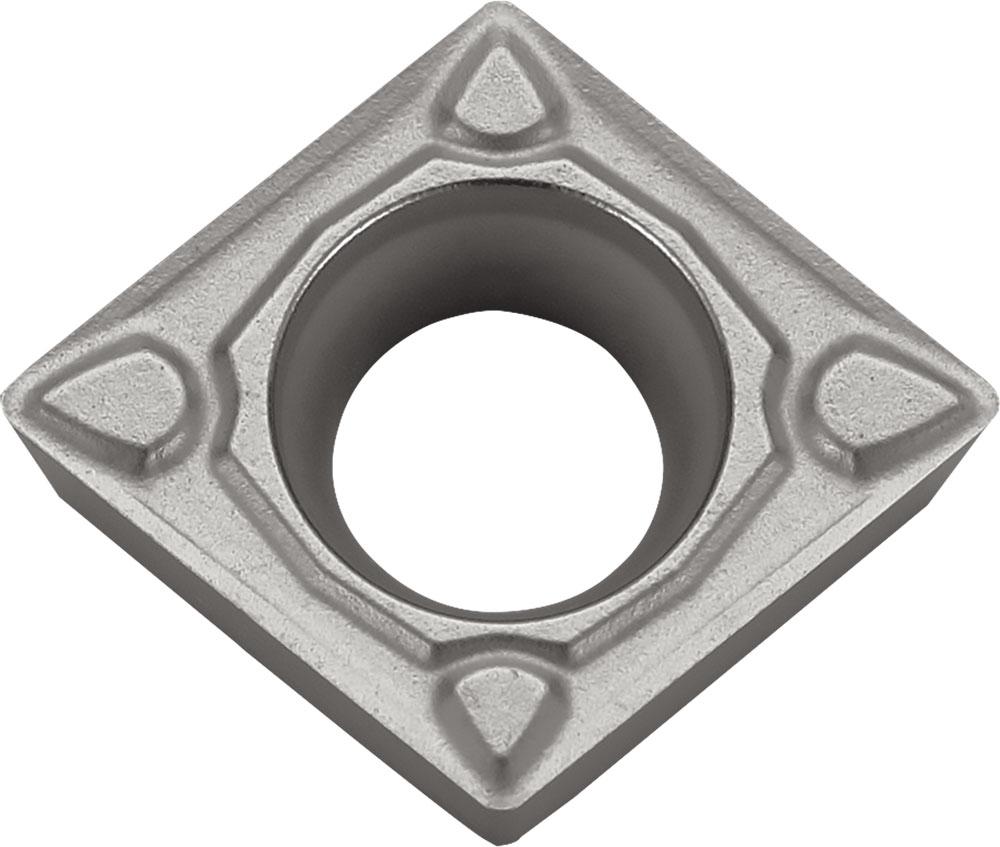

CCMT 3251MQ PR115S INSERT

CCMT 3251MQ PR115S INSERT

KYOCTLV00001 TLV00001
12.11 / EA
http://schema.org/OutOfStock
CCMT 3251MQ PR115S INSERT
  • Applicable Materials: Heat-Resistant Alloy
  • Chipbreaker: MQ
  • Corner Radius: 1/64 in
  • Hand Direction: Neutral
  • Hole Diameter: 0.173 in
  • Included Angle: 80 deg
  • Inscribed Circle: 3/8 in
  • Insert Size: 3251
  • Insert Style: CCMT
  • ISO Code: CCMT09T304MQ
  • Material: Carbide
  • Material Grade: S
  • Rake: Positive
  • Relief Angle: 7 deg
  • Shape: Diamond
  • Surface Treatment: PVD
  • Thickness: 5/32 in
  • Type: 2-Cutting Edge
  • ANSI Code: CCMT3251MQPR115S
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PR115S
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
For Boring, External Turning, Facing, Internal Facing
  • Insert for External Turning, Facing, Boring, Internal Facing
  • Stainless Steel/HRSA with 2 Cutting Edges
  • Improved thermal conductivity by optimum distribution of WC coarse grains in the substrate
  • Resists heat concentration at the cutting edge to promote stable machining
ANSI
