KYOCERA PRECISION TOOLS

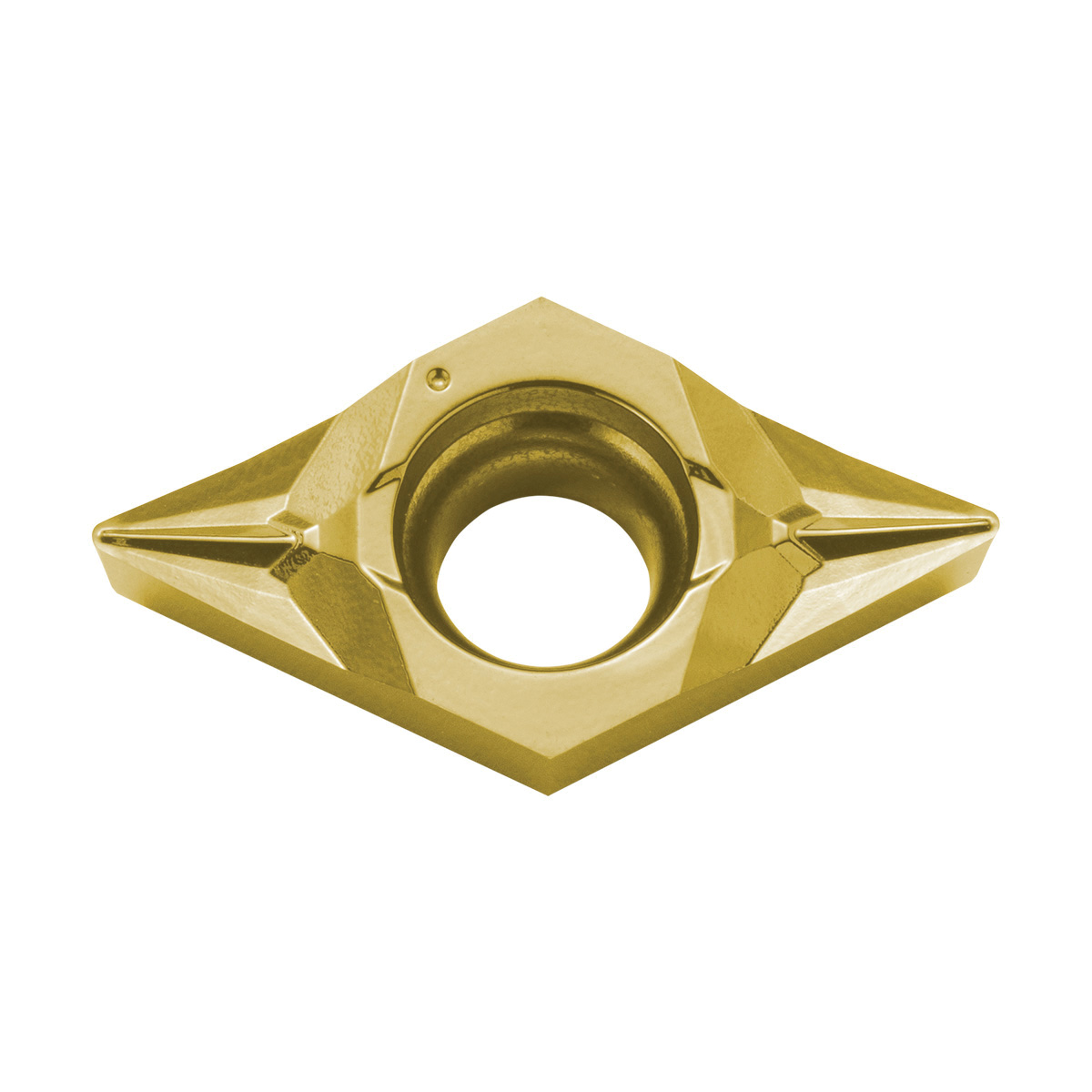

DCGT21502MFPSKPV730 TURNING INSERT

DCGT21502MFPSKPV730 TURNING INSERT

KYOCTLP00161 TLP00161
16.48 / EA
http://schema.org/OutOfStock
DCGT21502MFPSKPV730 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: SK
  • Corner Radius: 0.0039in
  • Hand Direction: Neutral
  • Hole Diameter: 0.1102in
  • Included Angle: 55°
  • Inscribed Circle: 1/4in
  • Insert Size: #21502
  • Insert Style: DCGT
  • ISO Code: DCGT070201MFP-SK
  • Material: Cermet
  • Material Grade: P
  • Rake: Positive
  • Relief Angle: 7°
  • Seat Size: 7
  • Shape: Diamond
  • Surface Treatment: PVD-TiAlN/TiN Coated
  • Thickness: 0.0937in
  • Type: 2-Cutting Edge
  • ANSI Code: DCGT21502MFPSKPV730
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PV730
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Back Boring, Copying, External Turning and Sub-Spindle Applications
  • Sharp edge/polished/minus tolerance corner radius with 2-cutting edges
  • Heavy interruption and finishing medium of carbon/alloy steel
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
