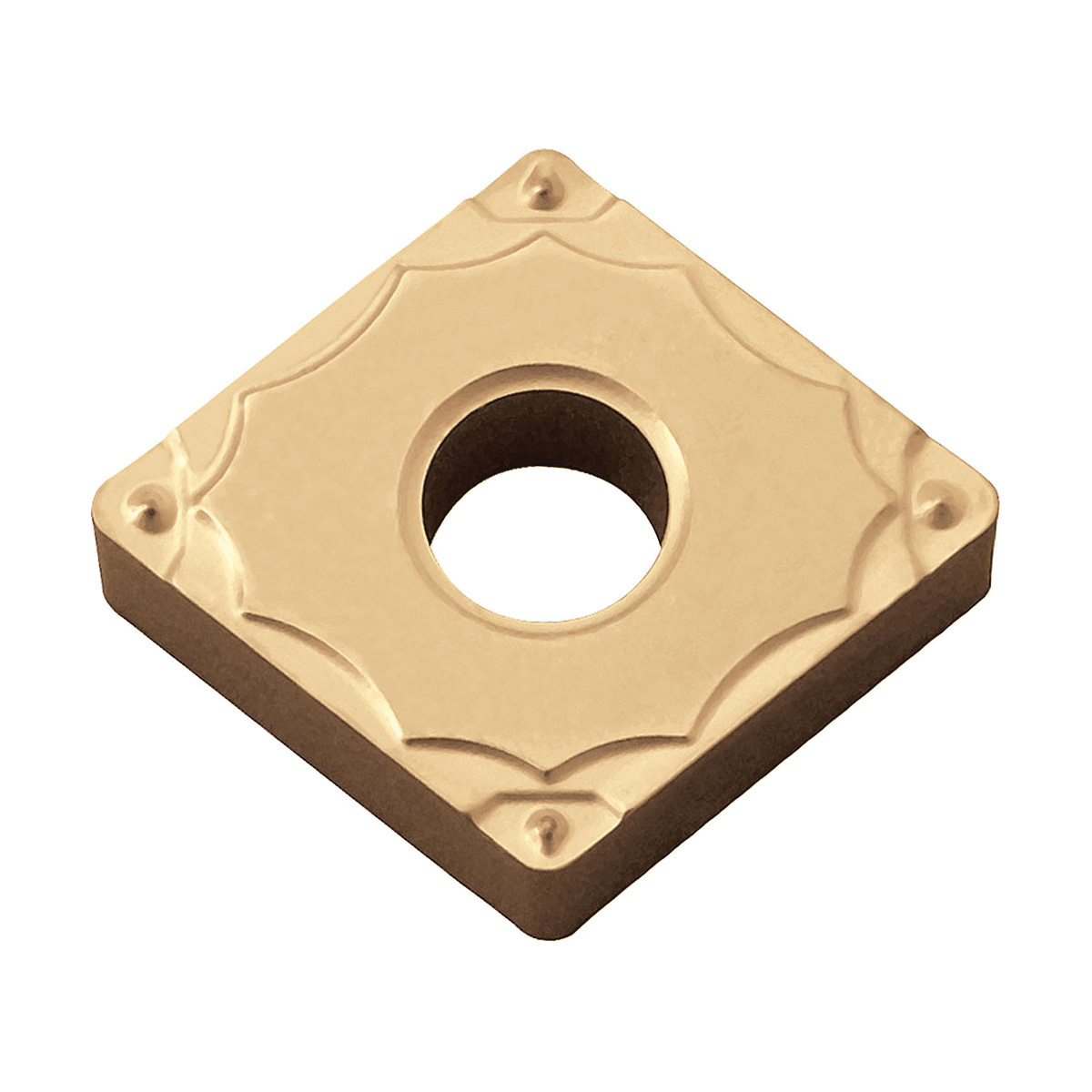

CNMG331GPPV730 TURNING INSERT

CNMG331GPPV730 TURNING INSERT

KYOCTLP00057 TLP00057
8.60 / EA
http://schema.org/OutOfStock
CNMG331GPPV730 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: GP
  • Corner Radius: 0.0157in
  • Hand Direction: Neutral
  • Hole Diameter: 0.15in
  • Included Angle: 80°
  • Inscribed Circle: 3/8in
  • Insert Size: #331
  • Insert Style: CNMG
  • ISO Code: CNMG090404GP
  • Material: Cermet
  • Material Grade: P
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 09, 9
  • Shape: Diamond
  • Surface Treatment: PVD-TiAlN/TiN Coated
  • Thickness: 0.1874in
  • Type: 4-Cutting Edge
  • ANSI Code: CNMG331GPPV730
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PV730
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, External Turning, Facing and Internal Facing Applications
  • Heavy interruption and finishing of carbon/alloy steel
