CNGU 242013MFRF PR1705 TURNING INSERT
CNGU 242013MFRF PR1705 TURNING INSERT
KYOCTLN40046
TLN40046
24.61
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLN40046

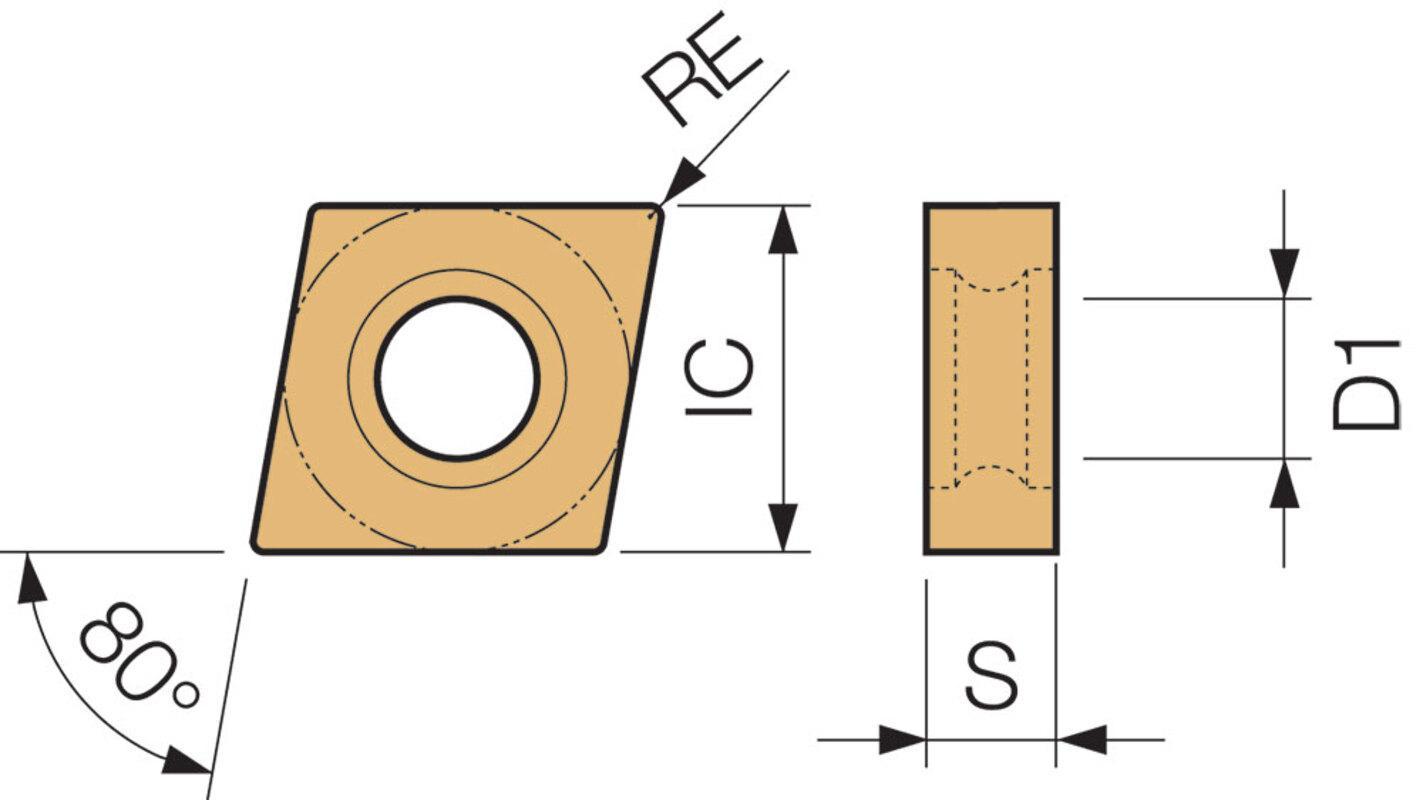

- Applicable Materials: Carbon/Alloy Steel, Free-Cutting Steel and Stainless Steel
- Chipbreaker: F
- Corner Radius: 0.002 in
- Hand Direction: Right Hand
- Hole Diameter: 0.1417 in
- Included Angle: 80 deg
- Inscribed Circle: 0.2953 in
- Insert Size: #242013
- Insert Style: CNGU
- ISO Code: CNGU0703005MFR-F
- Material: Carbide
- Material Grade: P, M
- Rake: Negative
- Relief Angle: 0 deg
- Seat Size: 7
- Shape: Diamond
- Surface Treatment: PVD-MEGACOAT NANO PLUS
- Thickness: 0.1252 in
- Type: 4-Cutting Edge
- ANSI Code: CNGU242013MFRFPR1705
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PR1705
- Manufacturer Name: KYOCERA Precision Tools
- Series: DSSS
- Application
- Item Features
- Standards
External Turning and Facing Applications
- Sharp edge/minus tolerance corner radius with 4-cutting edges
- MEGACOAT NANO PLUS PVD technology provides excellent wear resistance for improved tool life in continuous machining for steel, electromagnetic soft iron and high precision machining of free-cutting steel
- https://youtu.be/eUdmALB8Jbk
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
