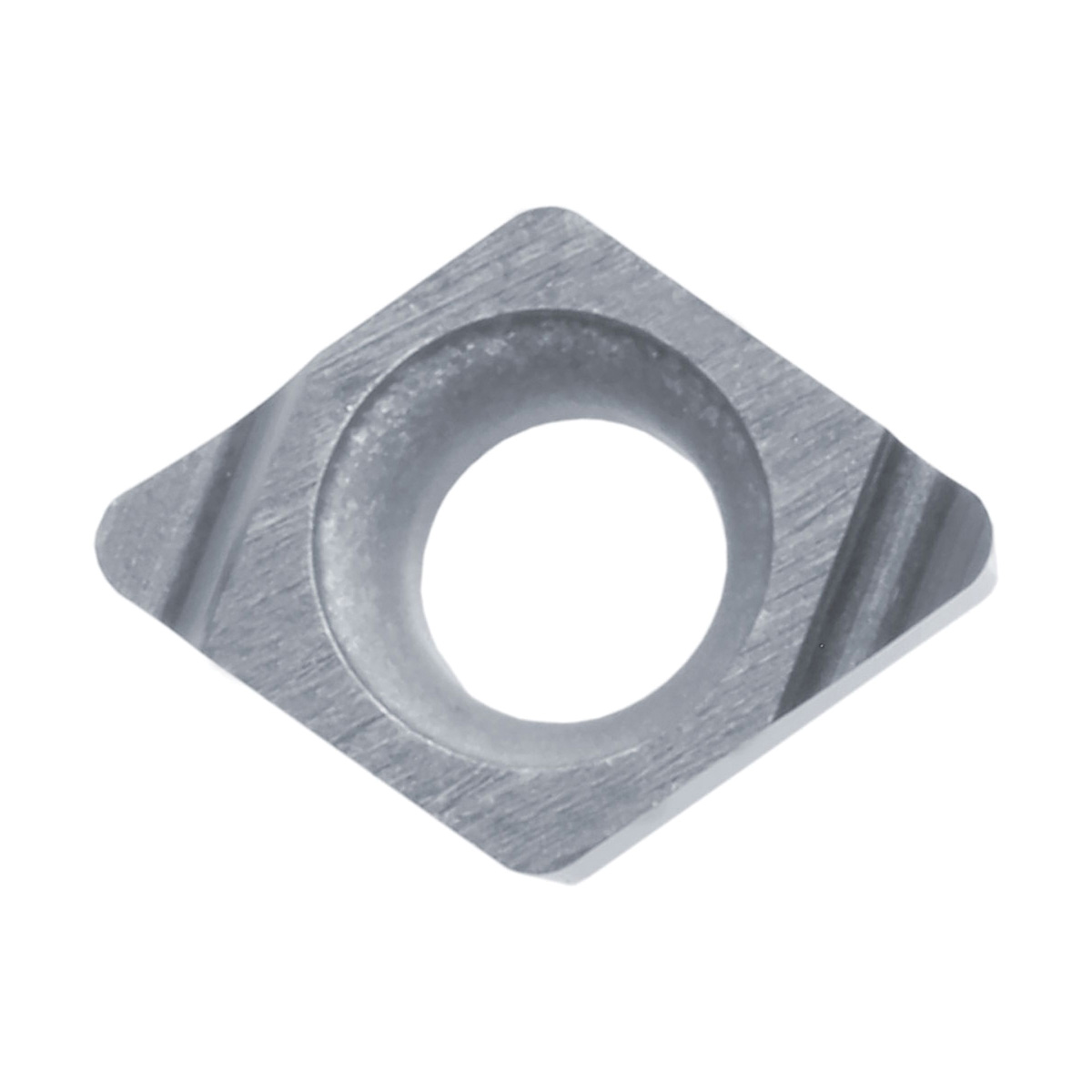

JCET110902MLFSFPR1725 TURNING INSERT

JCET110902MLFSFPR1725 TURNING INSERT

KYOCTLM40064 TLM40064
26.50 / EA
http://schema.org/OutOfStock
JCET110902MLFSFPR1725 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel, Free-Cutting Steel and Stainless Steel
  • Chipbreaker: FSF
  • Corner Radius: 0.0039in
  • Hand Direction: Left Hand
  • Hole Diameter: 0.0748in
  • Included Angle: 70°
  • Inscribed Circle: 0.1378in
  • Insert Size: #110902
  • Insert Style: JCET
  • ISO Code: JCET030101ML-FSF
  • Material: Carbide
  • Material Grade: P, M
  • Rake: Positive
  • Relief Angle: 7°
  • Seat Size: 3
  • Shape: Diamond
  • Surface Treatment: PVD-MEGACOAT NANO PLUS
  • Thickness: 0.0551in
  • Type: 2-Cutting Edge
  • ANSI Code: JCET110902MLFSFPR1725
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PR1725
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Back Boring, Boring and Internal Facing Applications
  • Sharp edge/precision/super fine/minus tolerance corner radius with 2-cutting edges
  • Light interruption and finishing of carbon/alloy steel
  • https://youtu.be/hvkVgOy7GjA
