KYOCERA PRECISION TOOLS

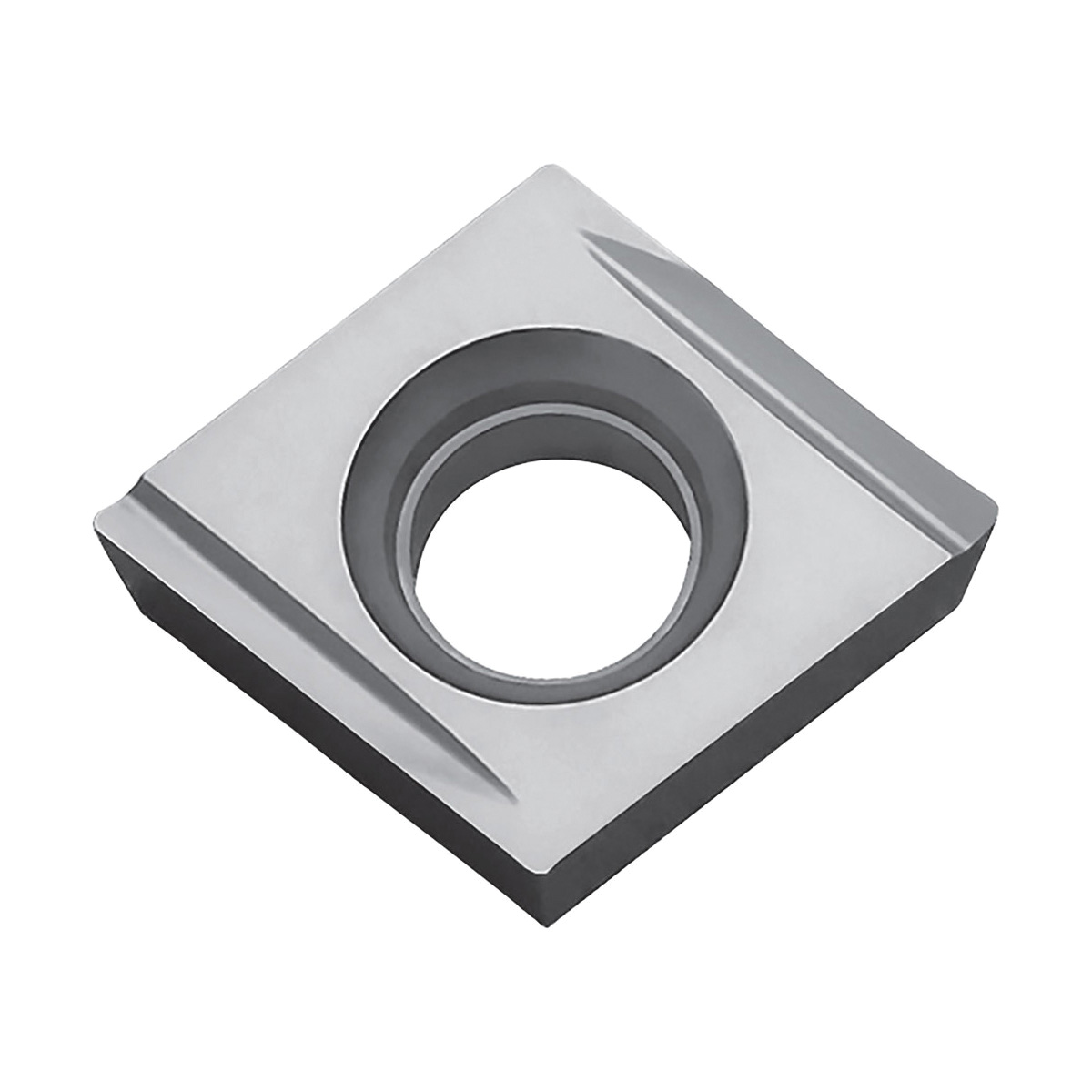

CPMH321RYPR1725 TURNING INSERT

CPMH321RYPR1725 TURNING INSERT

KYOCTLM40024 TLM40024
20.87 / EA
http://schema.org/OutOfStock
CPMH321RYPR1725 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel, Free-Cutting Steel and Stainless Steel
  • Chipbreaker: Y
  • Corner Radius: 0.0157in
  • Hand Direction: Right Hand
  • Hole Diameter: 0.1772in
  • Included Angle: 80°
  • Inscribed Circle: 3/8in
  • Insert Size: #321
  • Insert Style: CPMH
  • ISO Code: CPMH090304R-Y
  • Material: Carbide
  • Material Grade: P, M
  • Rake: Positive
  • Relief Angle: 11°
  • Seat Size: 09, 9
  • Shape: Diamond
  • Surface Treatment: PVD-MEGACOAT NANO PLUS
  • Thickness: 0.1252in
  • Type: 2-Cutting Edge
  • ANSI Code: CPMH321RYPR1725
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PR1725
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring and Internal Facing Applications
  • Light interruption and finishing medium of carbon/alloy steel
