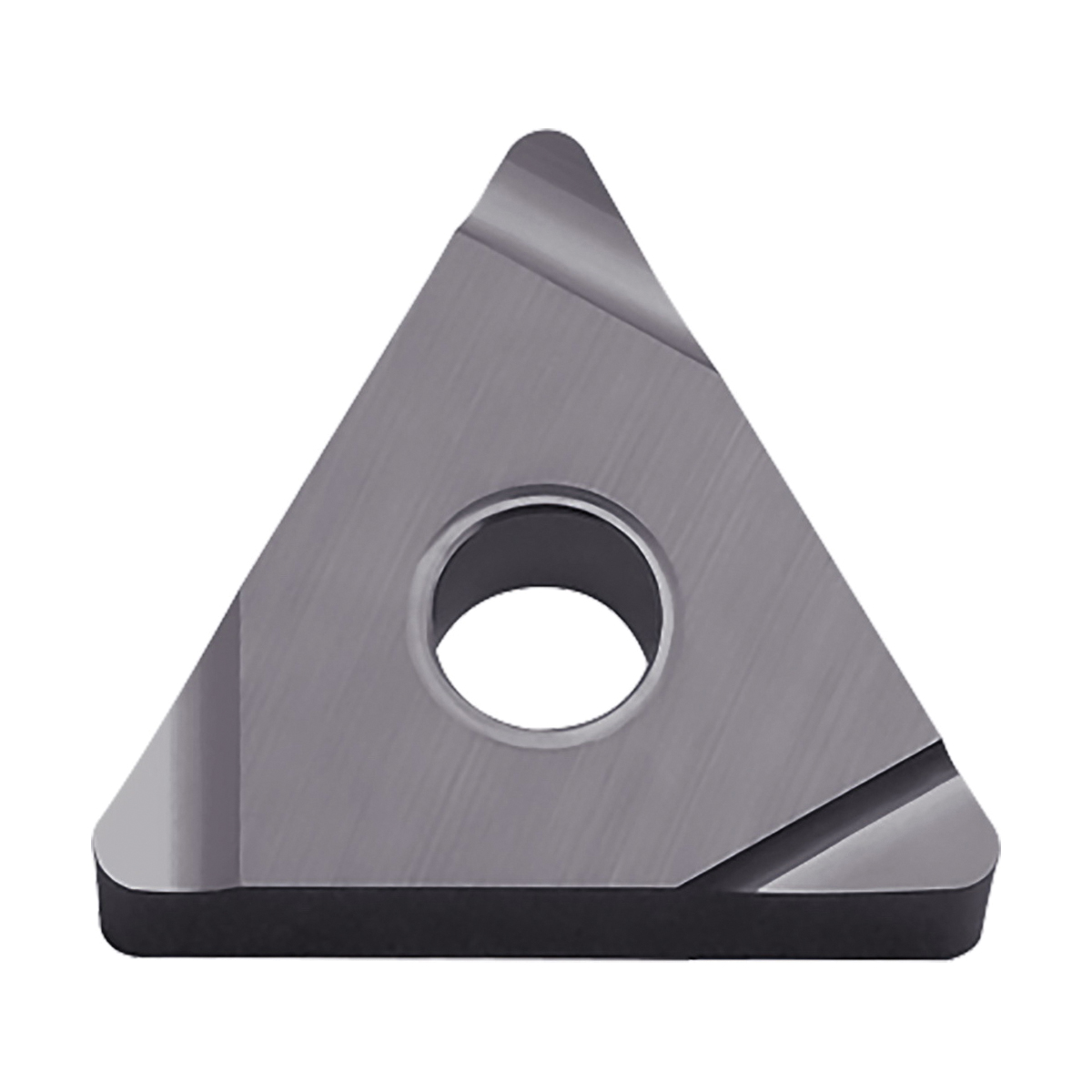

TNGG331LSPR1725 TURNING INSERT
TNGG331LSPR1725 TURNING INSERT
KYOCTLM00268
TLM00268
20.46
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLM00268
- Applicable Materials: Carbon/Alloy Steel, Free-Cutting Steel and Stainless Steel
- Chipbreaker: S
- Corner Radius: 1/64in
- Hand Direction: Left Hand
- Hole Diameter: 0.15in
- Included Angle: 60°
- Inscribed Circle: 3/8in
- Insert Size: #331
- Insert Style: TNGG
- ISO Code: TNGG160404L-S
- Material: Carbide
- Material Grade: P, M
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 16
- Shape: Triangle
- Surface Treatment: PVD-MEGACOAT NANO PLUS
- Thickness: 3/16in
- Type: 6-Cutting Edge
- ANSI Code: TNGG331LSPR1725
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PR1725
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
External Turning, Facing, Up Facing, Copying, Chamfering and Boring Applications
- Surface finish oriented with 6 cutting edges
- MEGACOAT NANO PLUS PVD technology provides excellent wear resistance for longer tool life and a high quality surface finish in steel and stainless applications
- Sharp edge and less cutting force
- Good chip control and smooth chip evacuation
- https://s3-us-west-2.amazonaws.com/catsy.739/PR1725_PVD_Coating_for_Small_Parts_Machining.mp4
ECCN: EAR99
