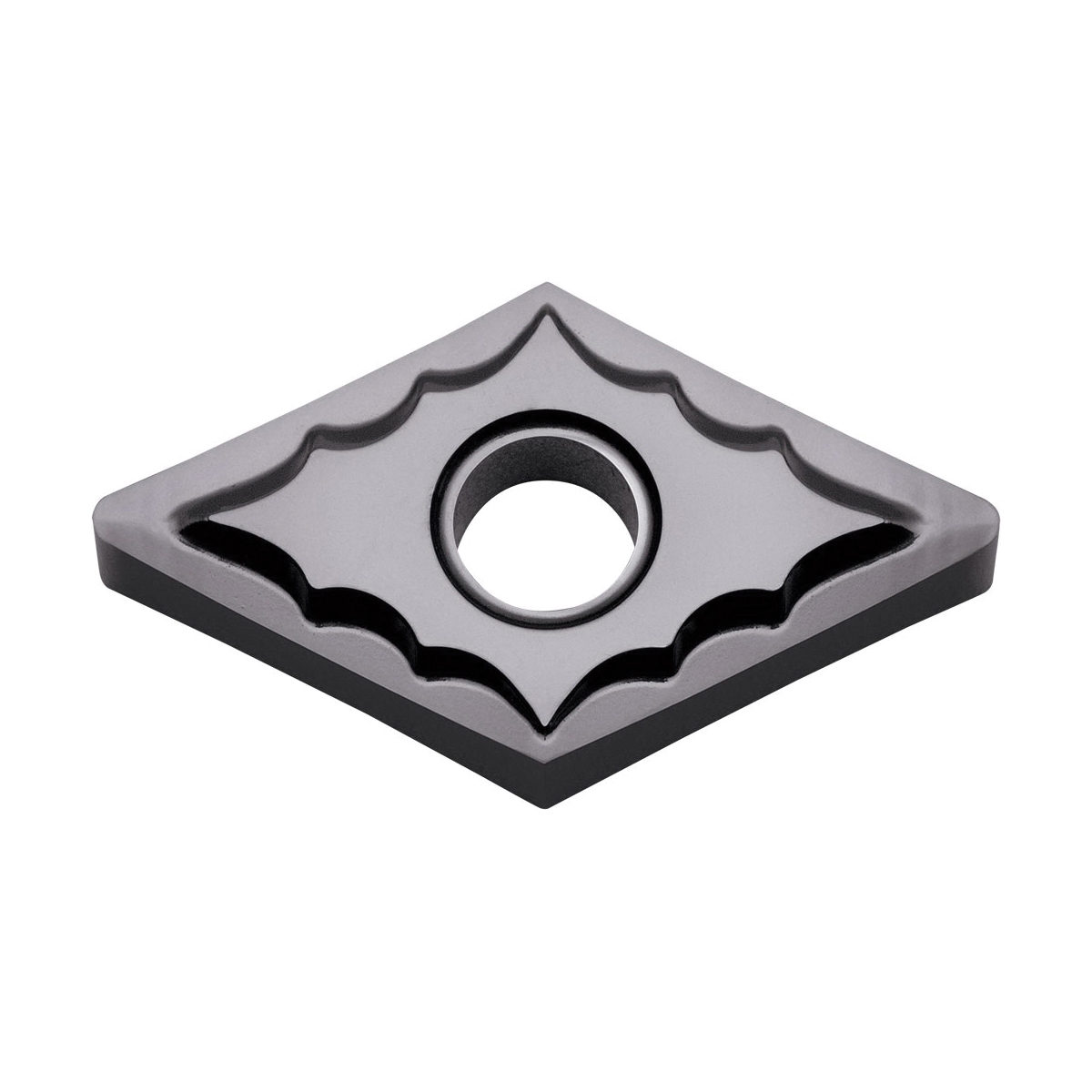

DNGG431FPTKPR1725 TURNING INSERT
DNGG431FPTKPR1725 TURNING INSERT
KYOCTLM00242
TLM00242
31.60
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLM00242
- Applicable Materials: Carbon/Alloy Steel, Free-Cutting Steel and Stainless Steel
- Chipbreaker: FP-TK
- Corner Radius: 1/64in
- Hand Direction: Neutral
- Hole Diameter: 0.2031in
- Included Angle: 55°
- Inscribed Circle: 1/2in
- Insert Size: #431
- Insert Style: DNGG
- ISO Code: DNGG150404FP-TK
- Material: Carbide
- Material Grade: P, M
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 15
- Shape: Rhombic
- Surface Treatment: PVD-MEGACOAT NANO PLUS
- Thickness: 3/16in
- Type: 4-Cutting Edge
- ANSI Code: DNGG431FPTKPR1725
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PR1725
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
External Turning, Copying and Boring Applications
- MEGACOAT NANO PLUS PVD technology provides excellent wear resistance for longer tool life and a high quality surface finish in steel and stainless applications
- For medium to large ap in automatic lathes (when machining workpieces of medium to large diameter)
- Superior cutting performance achieved by sharp edge and polished surface
- Smooth chipbreaker geometry improves chip flow with less adhesion
- Large curled chips
- Sharp edge/polished with 4 cutting edges
- https://s3-us-west-2.amazonaws.com/catsy.739/PR1725_PVD_Coating_for_Small_Parts_Machining.mp4
ECCN: EAR99
