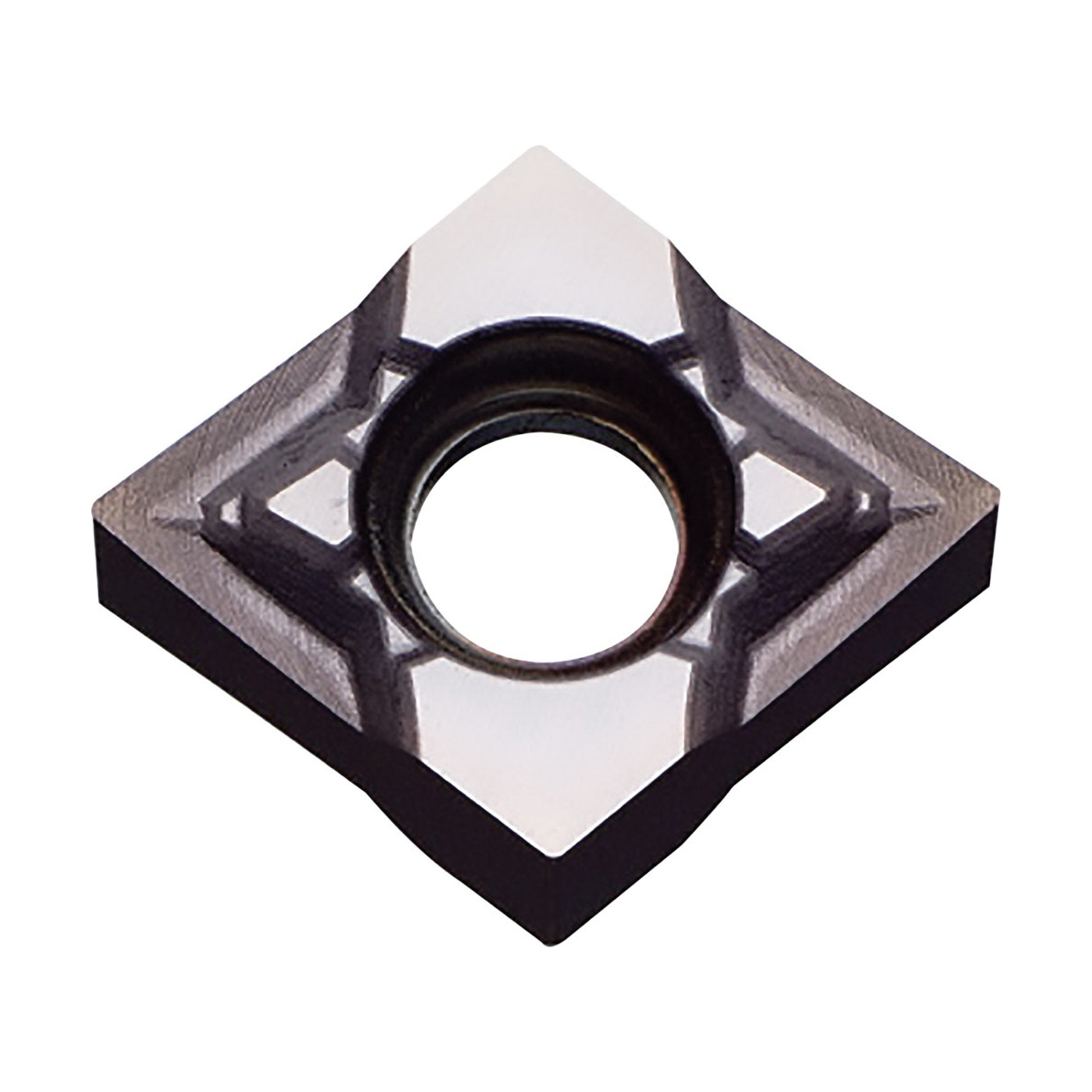

CNGU24202MFPSKPR1725 TURNING INSERT
CNGU24202MFPSKPR1725 TURNING INSERT
KYOCTLM00103
TLM00103
24.61
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLM00103
- Applicable Materials: Carbon/Alloy Steel, Free-Cutting Steel and Stainless Steel
- Chipbreaker: SK
- Corner Radius: <0.0039in
- Hand Direction: Neutral
- Hole Diameter: 0.1417in
- Included Angle: 80°
- Inscribed Circle: 0.2953in
- Insert Size: #24202
- Insert Style: CNGU
- ISO Code: CNGU070301MFP-SK
- Material: Carbide
- Material Grade: P, M
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 07, 7
- Shape: Rhombic
- Surface Treatment: PVD-MEGACOAT NANO PLUS
- Thickness: 1/8in
- Type: 4-Cutting Edge
- ANSI Code: CNGU24202MFPSKPR1725
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PR1725
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
External Turning and Facing Applications
- Sharp edge/polished/minus tolerance corner radius with 4 cutting edges
- MEGACOAT NANO PLUS PVD technology provides excellent wear resistance for longer tool life and a high quality surface finish in steel and stainless applications
- For finishing to medium machining in automatic lathes
- Sharp cutting performance equivalent to positive inserts
- Two step dot design provides reliable chip control at various applications
- https://s3-us-west-2.amazonaws.com/catsy.739/PR1725_PVD_Coating_for_Small_Parts_Machining.mp4
ECCN: EAR99
