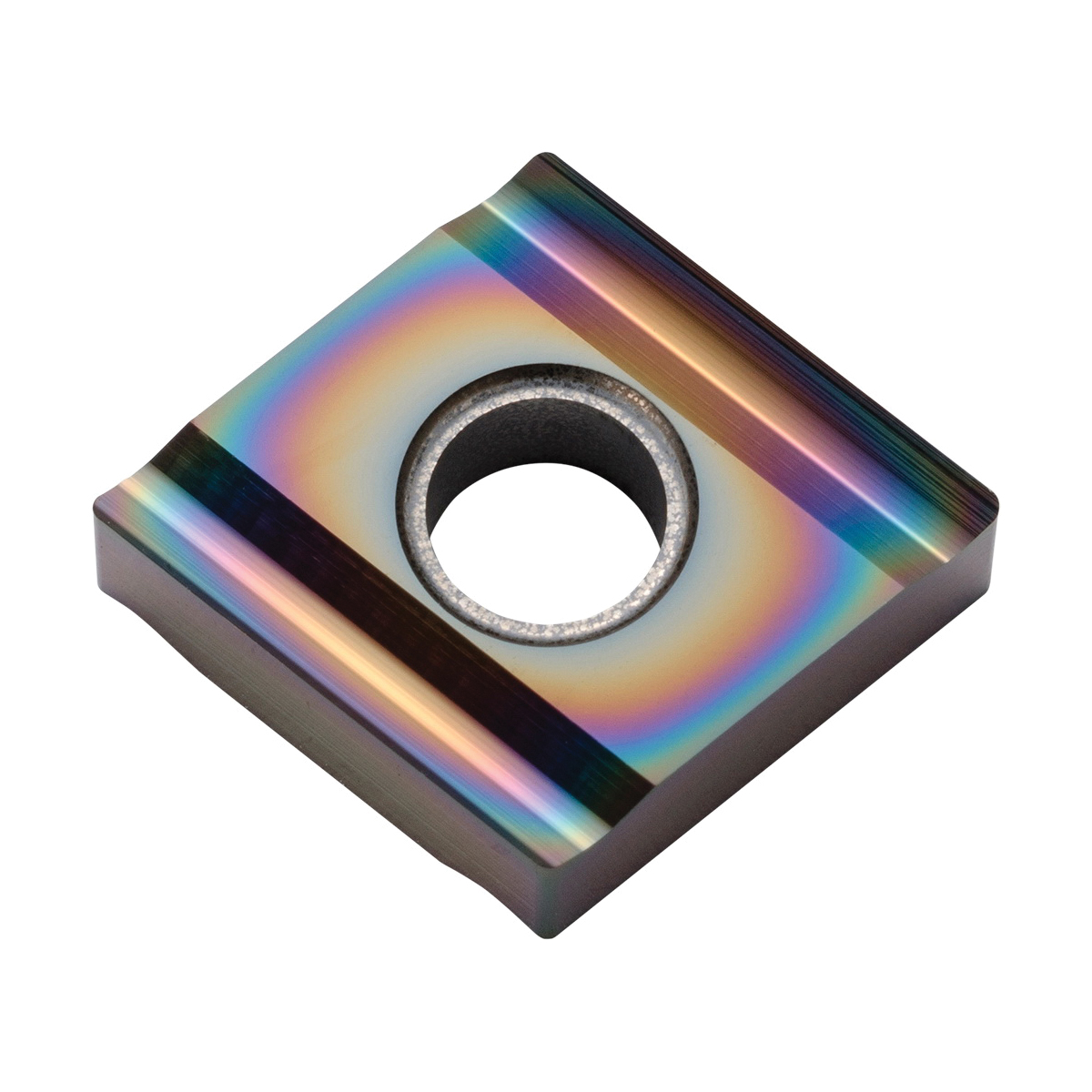

CNGG432RA3PDL010 TURNING INSERT

CNGG432RA3PDL010 TURNING INSERT

KYOCTLK04444 TLK04444
32.45 / EA
http://schema.org/OutOfStock
CNGG432RA3PDL010 TURNING INSERT
  • Applicable Materials: Non-Ferrous Metals
  • Chipbreaker: A3
  • Corner Radius: 1/32in
  • Hand Direction: Right Hand
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #432
  • Insert Style: CNGG
  • ISO Code: CNGG120408R-A3
  • Material: Carbide
  • Material Grade: N
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Rhombic
  • Surface Treatment: DLC-C Coated
  • Thickness: 3/16in
  • Type: 4-Cutting Edge
  • ANSI Code: CNGG432RA3PDL010
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PDL010
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • High hardness with KYOCERA proprietary hydrogen-free DLC coating
  • Long tool life and stable machining of aluminum alloys
  • Large rake angle, smooth chip flow and less adhesion
  • Superior cutting performance achieved by sharp edge
  • Sharp edge/non-ferrous metals with 4 cutting edges
ECCN: EAR99
