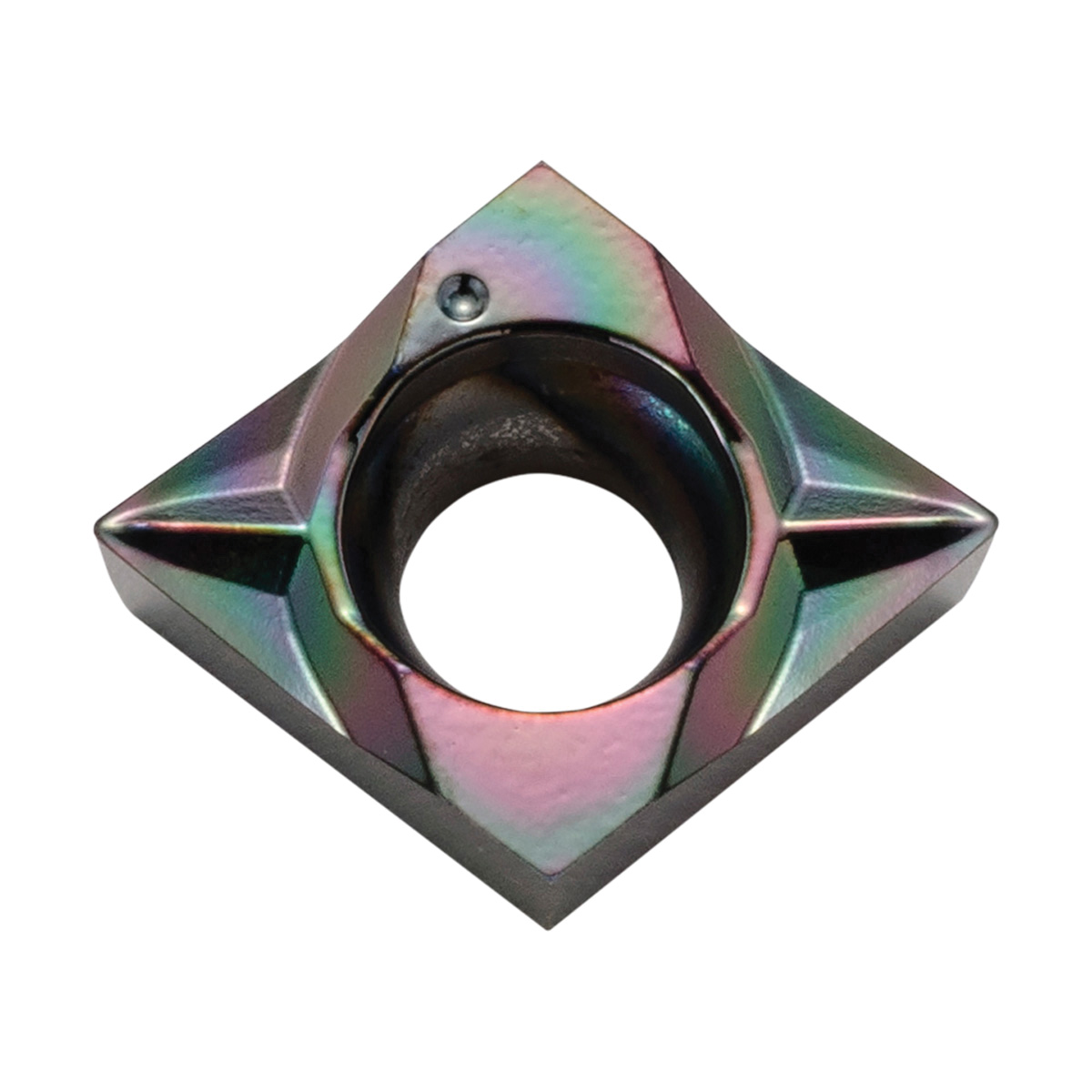

CCGT3251MFPSKPDL010 TURNING INSERT
CCGT3251MFPSKPDL010 TURNING INSERT
KYOCTLK01432
TLK01432
13.84
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLK01432
- Applicable Materials: Non-Ferrous Material
- Chipbreaker: SK
- Corner Radius: 0.0157in
- Hand Direction: Neutral
- Hole Diameter: 0.1732in
- Included Angle: 80°
- Inscribed Circle: 3/8in
- Insert Size: #3251
- Insert Style: CCGT
- ISO Code: CCGT09T304MFPSK
- Material: Carbide
- Material Grade: N
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 09, 9
- Shape: Diamond
- Surface Treatment: DLC-C Coated
- Thickness: 0.1563in
- Type: 2-Cutting Edge
- ANSI Code: CCGT3251MFPSKPDL010
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PDL010
- Manufacturer Name: KYOCERA Precision Tools
- Series: ISOI
- Application
- Item Features
- Standards
Boring, External Turning, Facing, Internal Facing and Sub-Spindle Applications
- Sharp edge/polished/minus tolerance corner radius with 2-cutting edges
- High hardness with KYOCERA proprietary hydrogen-free DLC coating
- Long tool life and stable machining of aluminum alloy
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
