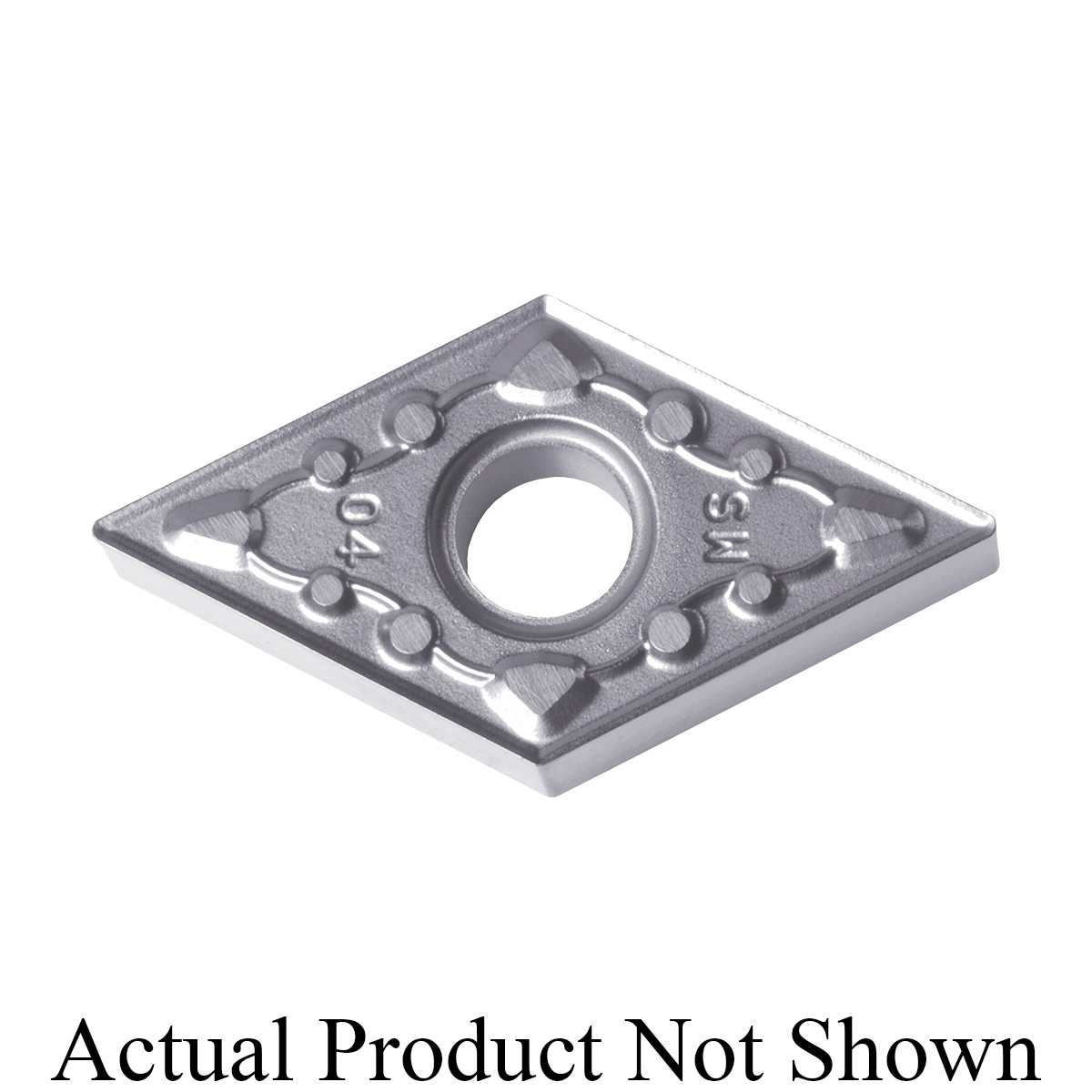

DNMG431MSPR005S TURNING INSERT

DNMG431MSPR005S TURNING INSERT

KYOCTLH02256 TLH02256
19.31 / EA
http://schema.org/OutOfStock
DNMG431MSPR005S TURNING INSERT
  • Applicable Materials: Heat-Resistant Alloy
  • Chipbreaker: MS
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 55°
  • Inscribed Circle: 1/2in
  • Insert Size: #431
  • Insert Style: DNMG
  • ISO Code: DNMG150404MS
  • Material: Carbide
  • Material Grade: S
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 15
  • Shape: Rhombic
  • Surface Treatment: PVD-MEGACOAT HARD
  • Thickness: 3/16in
  • Type: 4-Cutting Edge
  • ANSI Code: DNMG431MSPR005S
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PR005S
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Copying and Boring Applications
  • Improved thermal conductivity by optimum distribution of WC coarse grains in the substrate
  • Resists heat concentration at the cutting edge to promote stable machining
  • Hard, wear-resistant grade for high speed machining of continuous to light interrupted heat-resistant alloys
  • Superior cutting edge sharpness and strength achieved by a positive land
  • Extra strength of cutting edge inhibits damage from wall shouldering
  • Stainless steel/HRSA with 4 cutting edges
ECCN: EAR99
