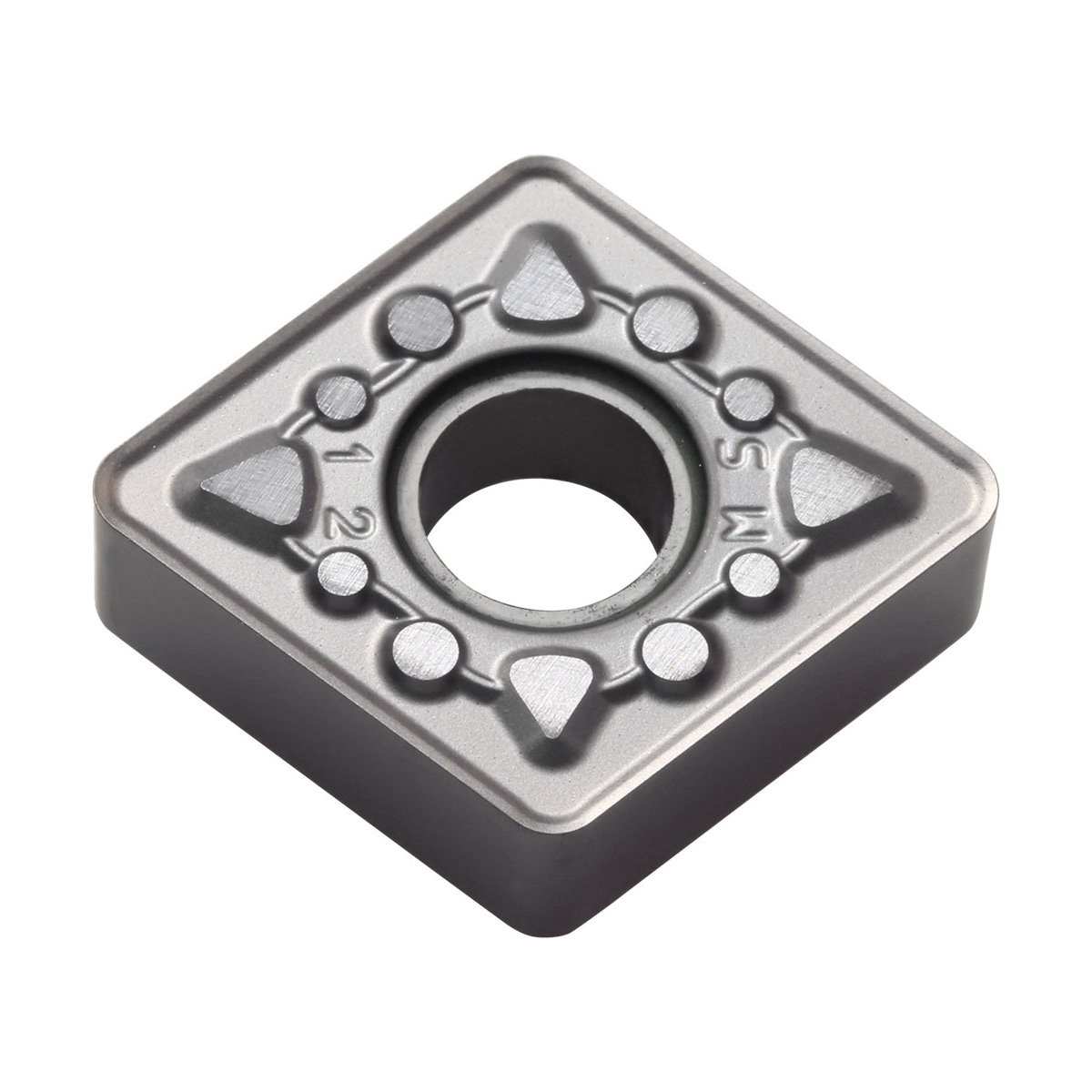

CNMG431MSPR005S TURNING INSERT
CNMG431MSPR005S TURNING INSERT
KYOCTLH00921
TLH00921
9.99
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLH00921
- Applicable Materials: Heat-Resistant Alloy
- Chipbreaker: MS
- Corner Radius: 1/64in
- Hand Direction: Neutral
- Hole Diameter: 0.2031in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: #431
- Insert Style: CNMG
- ISO Code: CNMG120404MS
- Material: Carbide
- Material Grade: S
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 12
- Shape: Rhombic
- Surface Treatment: PVD-MEGACOAT HARD
- Thickness: 3/16in
- Type: 4-Cutting Edge
- ANSI Code: CNMG431MSPR005S
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PR005S
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
External Turning, Facing, Boring and Internal Facing Applications
- Improved thermal conductivity by optimum distribution of WC coarse grains in the substrate
- Resists heat concentration at the cutting edge to promote stable machining
- Hard, wear-resistant grade for high speed machining of continuous to light interrupted heat-resistant alloys
- Superior cutting edge sharpness and strength achieved by a positive land
- Extra strength of cutting edge inhibits damage from wall shouldering
- Stainless steel/HRSA with 4 cutting edges
ECCN: EAR99
