KYOCERA PRECISION TOOLS

TNGG331LBPV710 TURNING INSERT

TNGG331LBPV710 TURNING INSERT

KYOCTLF05962 TLF05962
14.69 / EA
http://schema.org/OutOfStock

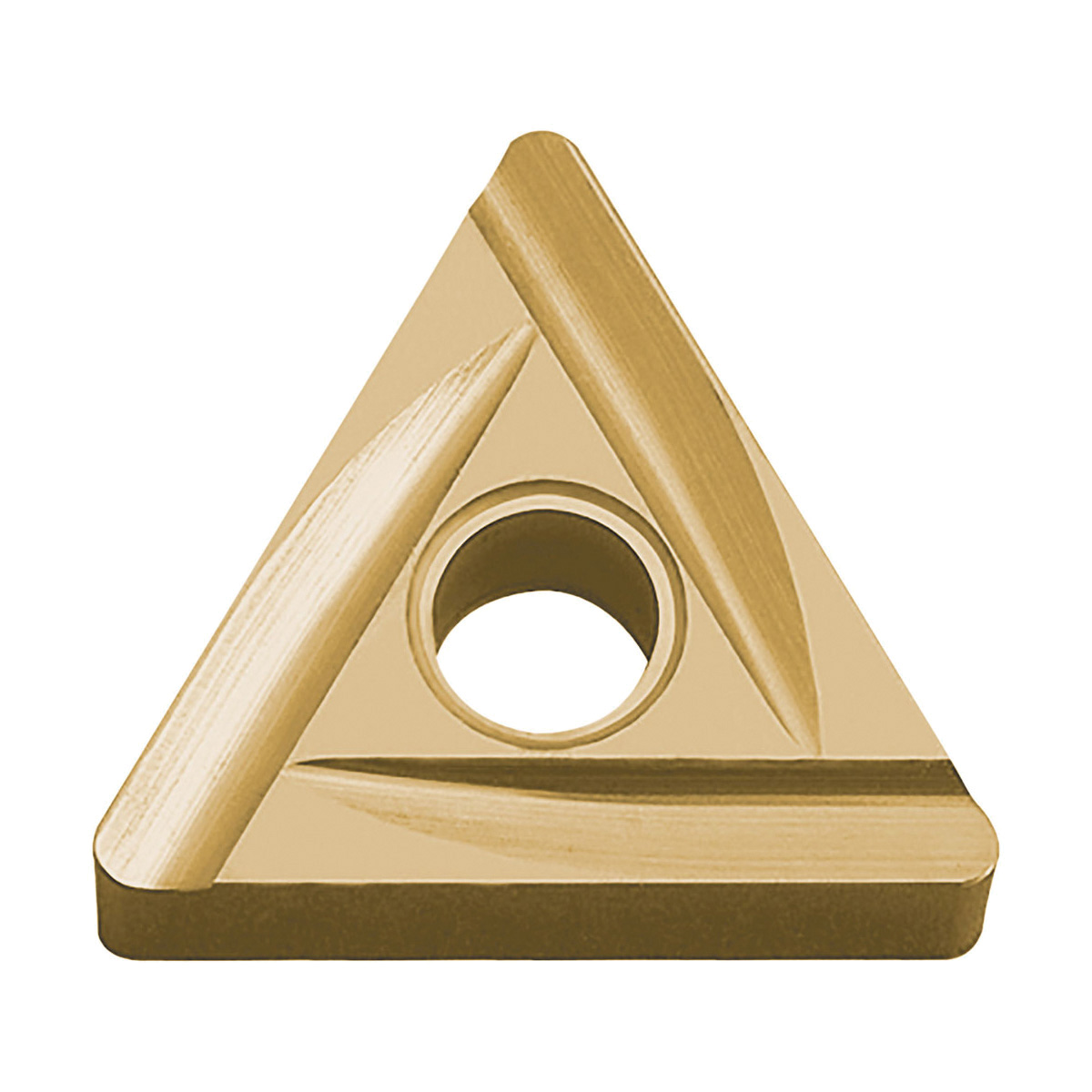

TNGG331LBPV710 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: B
  • Corner Radius: 0.0157in
  • Hand Direction: Left Hand
  • Hole Diameter: 0.15in
  • Included Angle: 60°
  • Inscribed Circle: 3/8in
  • Insert Size: #331
  • Insert Style: TNGG
  • ISO Code: TNGG160404L-B
  • Material: Cermet
  • Material Grade: P
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 16
  • Shape: Triangular
  • Surface Treatment: PVD-TiCN/MEGACOAT NANO
  • Thickness: 0.1874in
  • Type: 6-Cutting Edge
  • ANSI Code: TNGG331LBPV710
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PV710
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, Chamfering, Copying, External Turning, Facing and Up Facing Applications
  • MEGACOAT NANO efficient machining with high quality surface finishes and superior wear and adhesion resistance
  • Recommended cermet for long tool life and stable machining for high speed continuous cuts
