KYOCERA PRECISION TOOLS

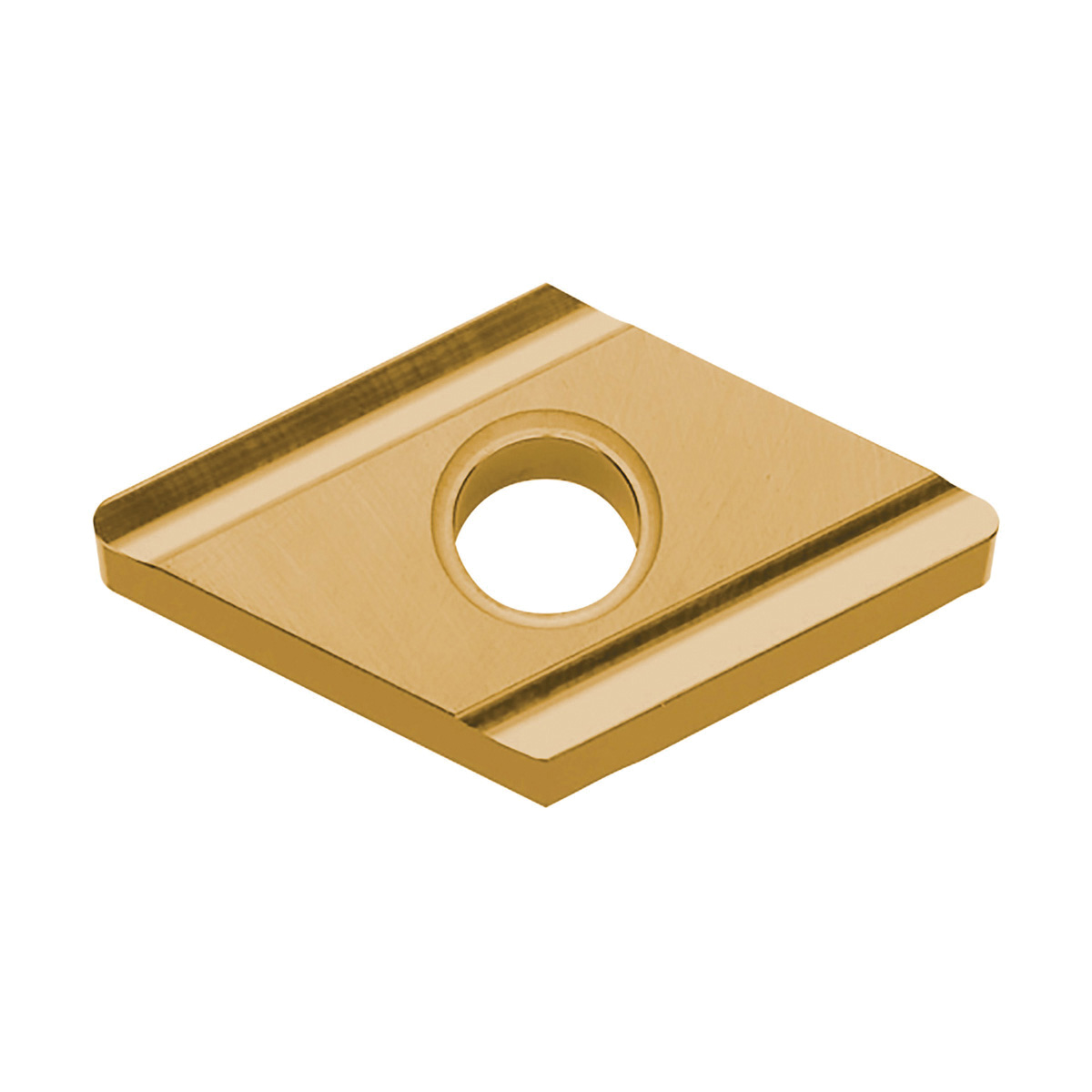

DNGG431LPV710 TURNING INSERT

DNGG431LPV710 TURNING INSERT

KYOCTLF03700 TLF03700
22.94 / EA
http://schema.org/OutOfStock
DNGG431LPV710 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Corner Radius: 0.0157in
  • Hand Direction: Left Hand
  • Hole Diameter: 0.2031in
  • Included Angle: 55°
  • Inscribed Circle: 1/2in
  • Insert Size: #431
  • Insert Style: DNGG
  • ISO Code: DNGG150404L
  • Material: Cermet
  • Material Grade: P
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 15
  • Shape: Diamond
  • Surface Treatment: PVD-TiCN/MEGACOAT NANO
  • Thickness: 0.1874in
  • Type: 4-Cutting Edge
  • ANSI Code: DNGG431LPV710
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PV710
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, Copying and External Turning Applications
  • MEGACOAT NANO efficient machining with high quality surface finishes and superior wear and adhesion resistance
  • Recommended cermet for long tool life and stable machining for high speed continuous cuts
