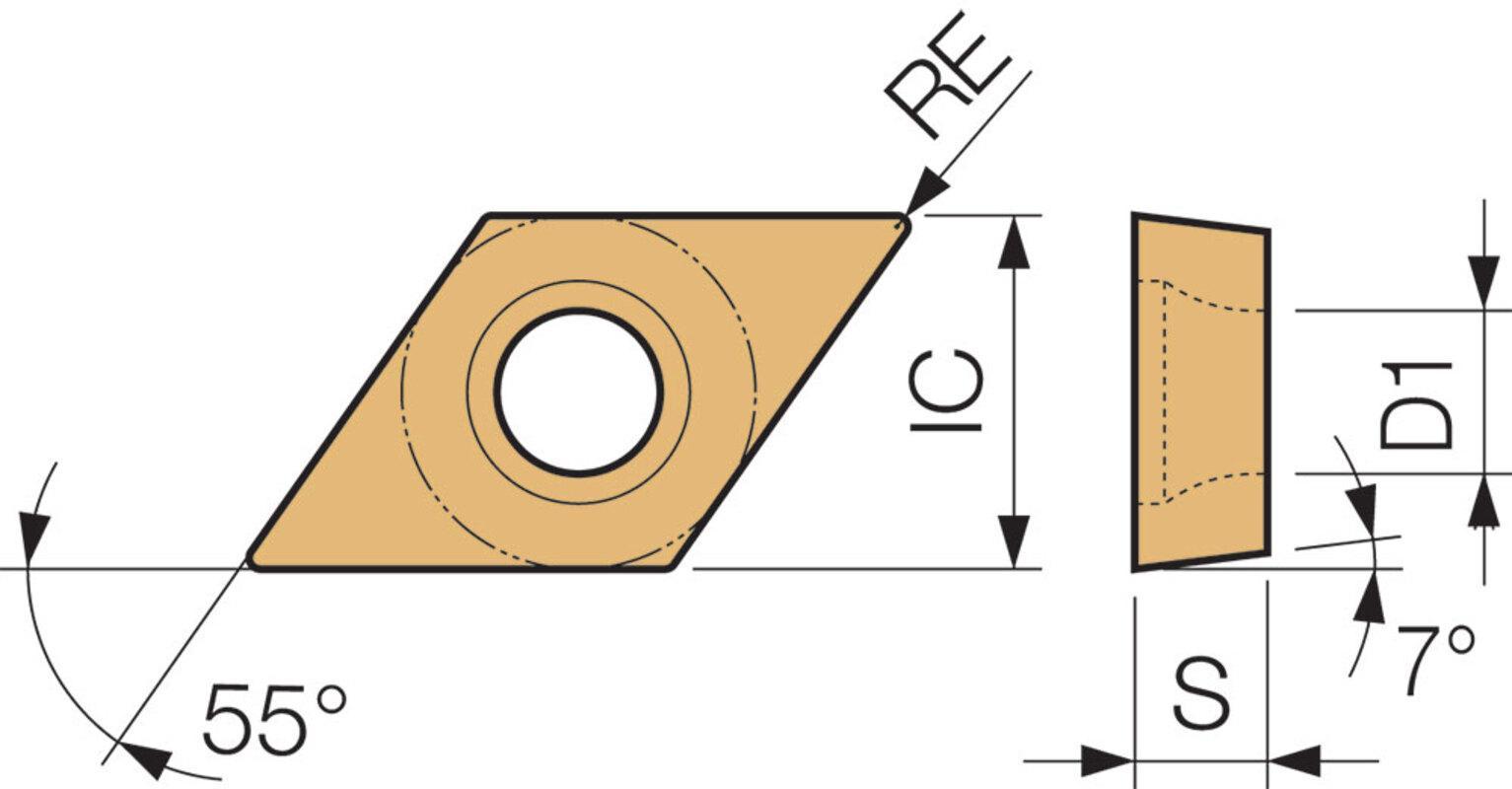

DCGT 32502 PV710 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Corner Radius: 0.0039 in
  • Hand Direction: Neutral
  • Hole Diameter: 0.1732 in
  • Included Angle: 55 deg
  • Inscribed Circle: 3/8 in
  • Insert Size: #32502
  • Insert Style: DCGT
  • ISO Code: DCGT11T301
  • Material: Cermet
  • Material Grade: P
  • Rake: Positive
  • Relief Angle: 7 deg
  • Seat Size: 11
  • Shape: Diamond
  • Surface Treatment: PVD-TiCN/MEGACOAT NANO
  • Thickness: 0.1563 in
  • Type: 2-Cutting Edge
  • ANSI Code: DCGT32502PV710
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PV710
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Back Boring, Copying, External Turning and Sub-Spindle Applications
  • MEGACOAT NANO efficient machining with high quality surface finishes and superior wear and adhesion resistance
  • Recommended cermet for long tool life and stable machining for high speed continuous cuts
