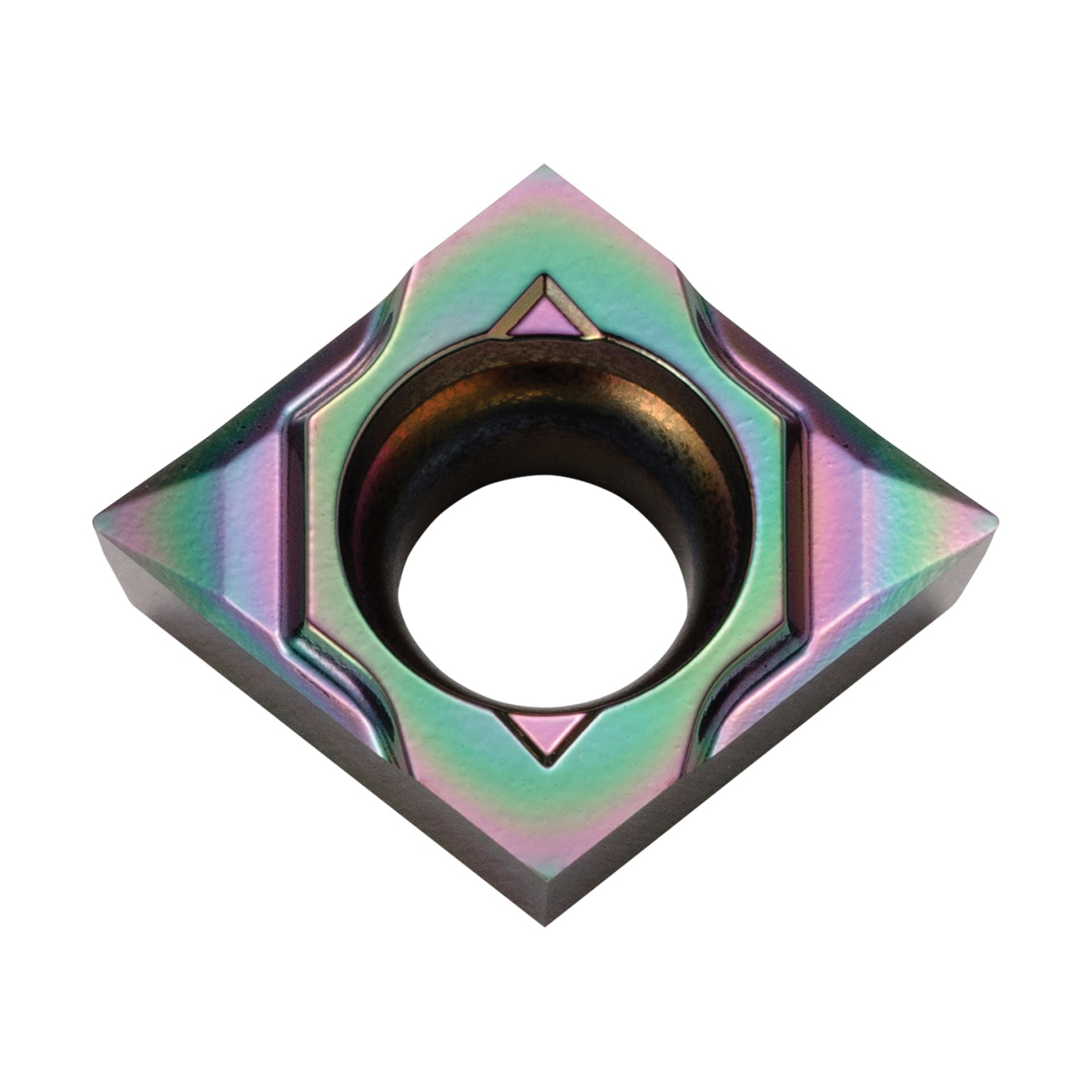

CCGT21502MPCKPDL025 TURNING INSERT
CCGT21502MPCKPDL025 TURNING INSERT
KYOCTLE01306
TLE01306
13.40
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLE01306
- Applicable Materials: Non-Ferrous Metals
- Chipbreaker: CK
- Corner Radius: <0.0039in
- Hand Direction: Neutral
- Hole Diameter: 0.1102in
- Included Angle: 80°
- Inscribed Circle: 1/4in
- Insert Size: #21502
- Insert Style: CCGT
- ISO Code: CCGT060201MP-CK
- Material: Carbide
- Material Grade: N
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 6
- Shape: Rhombic
- Surface Treatment: DLC-C Coated
- Thickness: 3/32in
- Type: 2-Cutting Edge
- Manufacturer Grade: PDL025
- ANSI Code: CCGT21502MPCKPDL025
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
External Turning, Facing, Boring, Internal Facing and Sub-Spindle Applications
- Sharp edge/polished/minus tolerance corner radius with 2 cutting edges
- High hardness with KYOCERA proprietary hydrogen-free DLC coating
- Excellent machining stability in interrupted aluminum machining
- Good cutting performance
- Applicable without hand for two direction machining on automatic lathe
ECCN: EAR99
