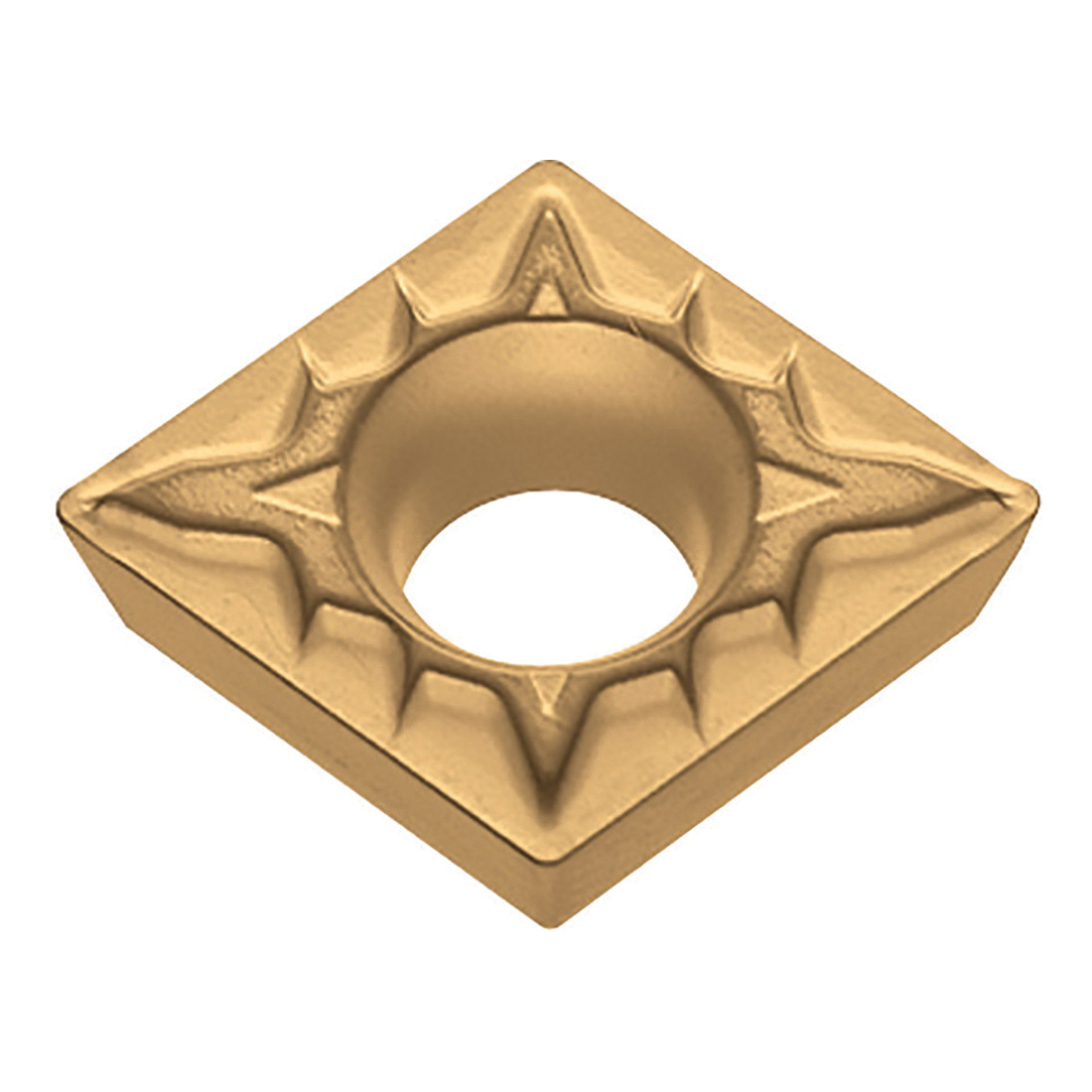

CPMT25151XPPV720 TURNING INSERT

CPMT25151XPPV720 TURNING INSERT

KYOCTLD02250 TLD02250
9.22 / EA
http://schema.org/OutOfStock
CPMT25151XPPV720 TURNING INSERT
  • Applicable Materials: Steel
  • Chipbreaker: XP
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.13in
  • Included Angle: 80°
  • Inscribed Circle: 5/16in
  • Insert Size: 25151
  • Insert Style: CPMT
  • ISO Code: CPMT080204XP PV720
  • Material: Cermet
  • Material Grade: P
  • Rake: Positive
  • Relief Angle: 11°
  • Seat Size: 8
  • Shape: Diamond
  • Surface Treatment: TiCN/MEGACOAT NANO
  • Thickness: 3/32in
  • Type: 1-Sided
  • ANSI Code: CPMT25151XP PV720
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PV720
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
Finishing and General Turning
  • XP chipbreaker - wide chip control range and sharp cutting performance
  • Suitable for low carbon steel and sticky material
  • PV720 grade MEGACOAT nano efficient machining with high quality surface finishes and superior wear and adhesion resistance
  • Recommended cermet for stable steel machining and high quality surface finish
