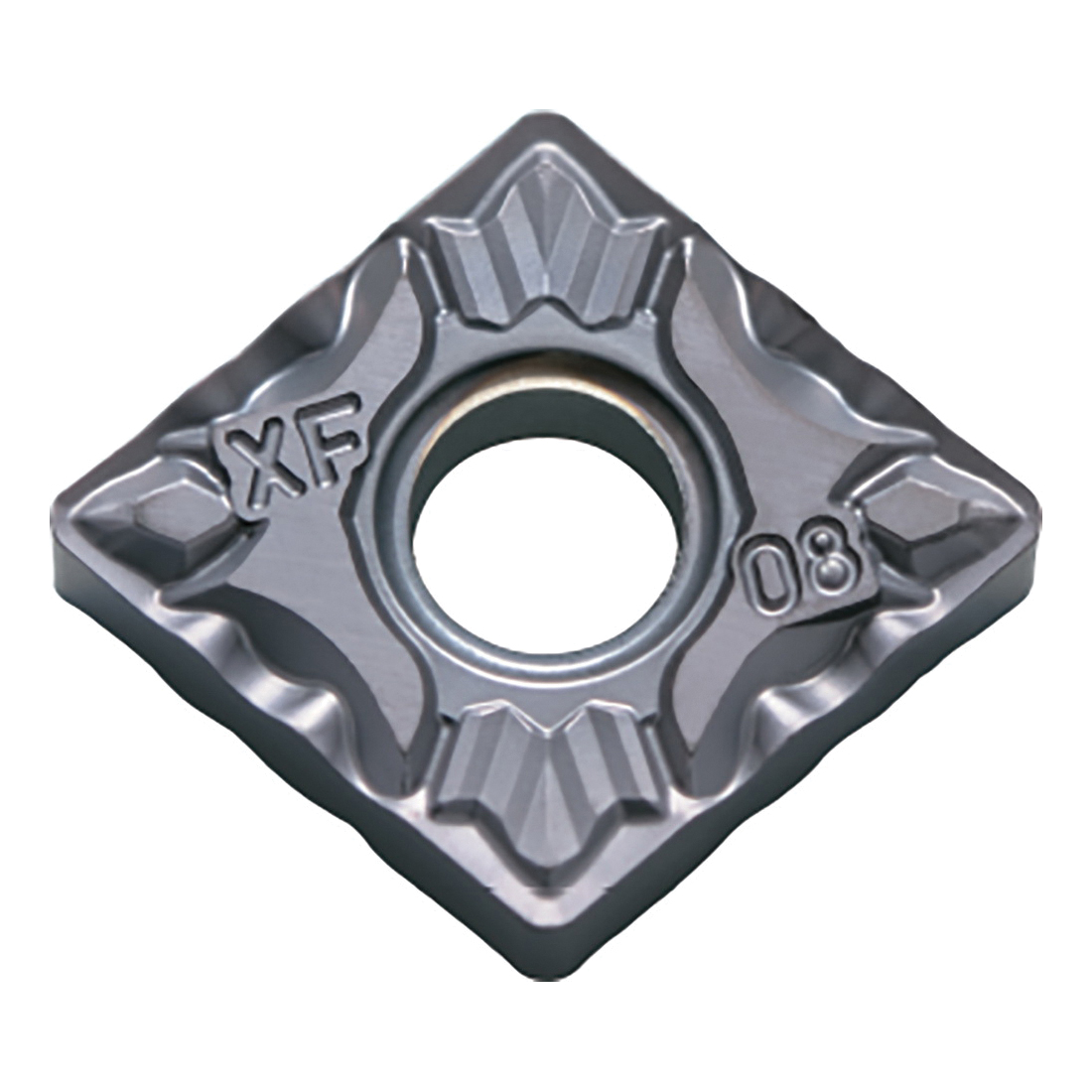

CNMG432XFPV720 TURNING INSERT
CNMG432XFPV720 TURNING INSERT
KYOCTLD01833
TLD01833
10.77
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLD01833
- Applicable Materials: Steel
- Chipbreaker: XF
- Corner Radius: 1/32in
- Hand Direction: Neutral
- Hole Diameter: 0.203in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: 432
- Insert Style: CNMG
- ISO Code: CNMG120408XF PV720
- Material: Cermet
- Material Grade: P
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 12
- Shape: Diamond
- Surface Treatment: TiCN/MEGACOAT NANO
- Thickness: 3/16in
- Type: 2-Sided
- ANSI Code: CNMG432XF PV720
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PV720
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
Finishing and General Turning
- XF chipbreaker - excellent chip control at high speed and small radial depth of cut machining of low carbon steel
- PV720 grade MEGACOAT nano efficient machining with high quality surface finishes and superior wear and adhesion resistance
- Recommended cermet for stable steel machining and high quality surface finish
