KYOCERA PRECISION TOOLS

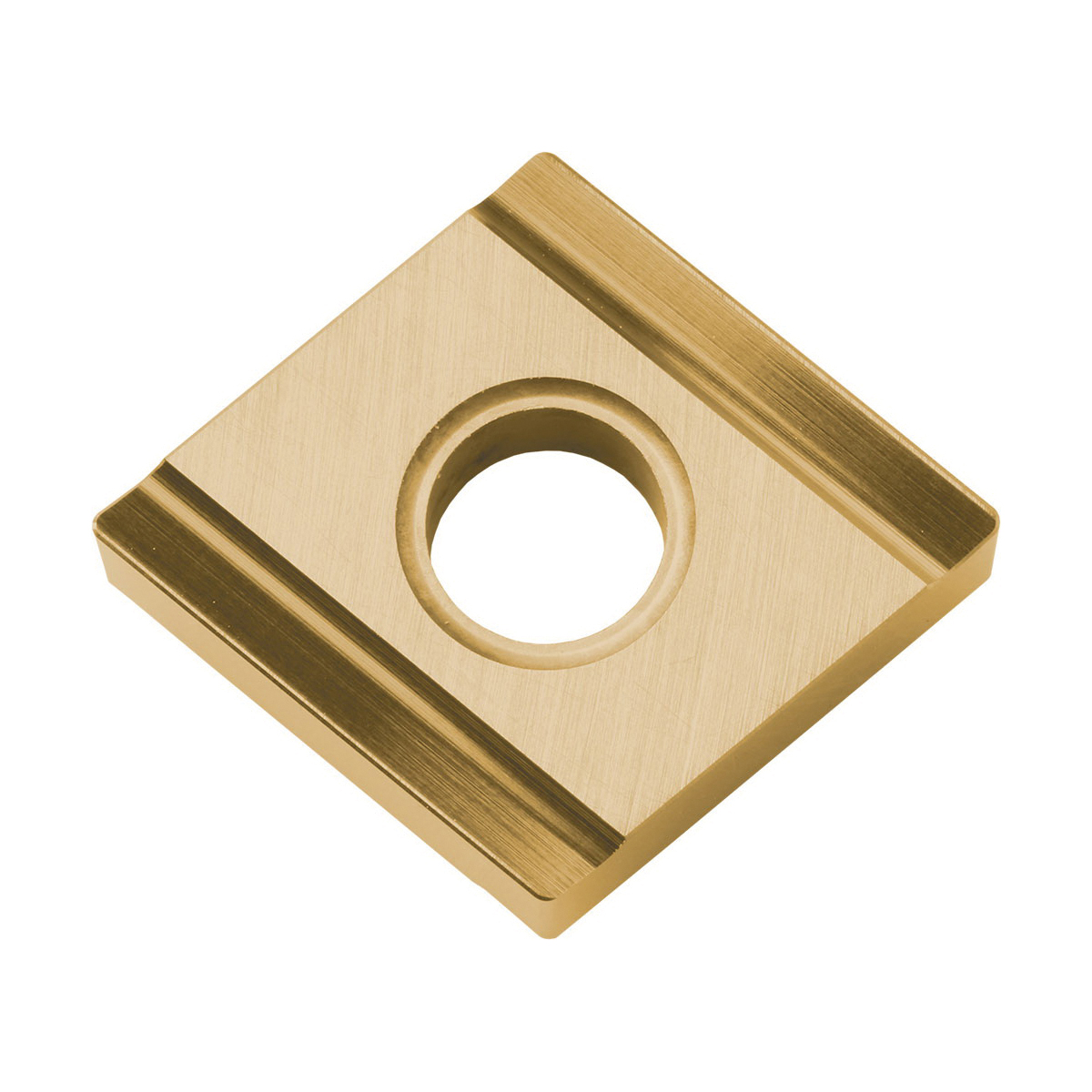

CNGG432RPV720 TURNING INSERT

CNGG432RPV720 TURNING INSERT

KYOCTLD01685 TLD01685
19.92 / EA
http://schema.org/OutOfStock
CNGG432RPV720 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Corner Radius: 1/32in
  • Hand Direction: Right Hand
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #432
  • Insert Style: CNGG
  • ISO Code: CNGG120408R
  • Material: Cermet
  • Material Grade: P
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Rhombic
  • Surface Treatment: PVD-TiCN/MEGACOAT NANO
  • Thickness: 3/16in
  • Type: 4-Cutting Edge
  • ANSI Code: CNGG432RPV720
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PV720
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • MEGACOAT NANO coating for efficient machining with high quality surface finishes with excellent wear and adhesion resistance
  • Recommended cermet for stable steel machining and high quality surface finish
ECCN: EAR99
