CNMG431MSPR1535 TURNING INSERT

CNMG431MSPR1535 TURNING INSERT

KYOCTLC50921 TLC50921
9.99 / EA
http://schema.org/OutOfStock

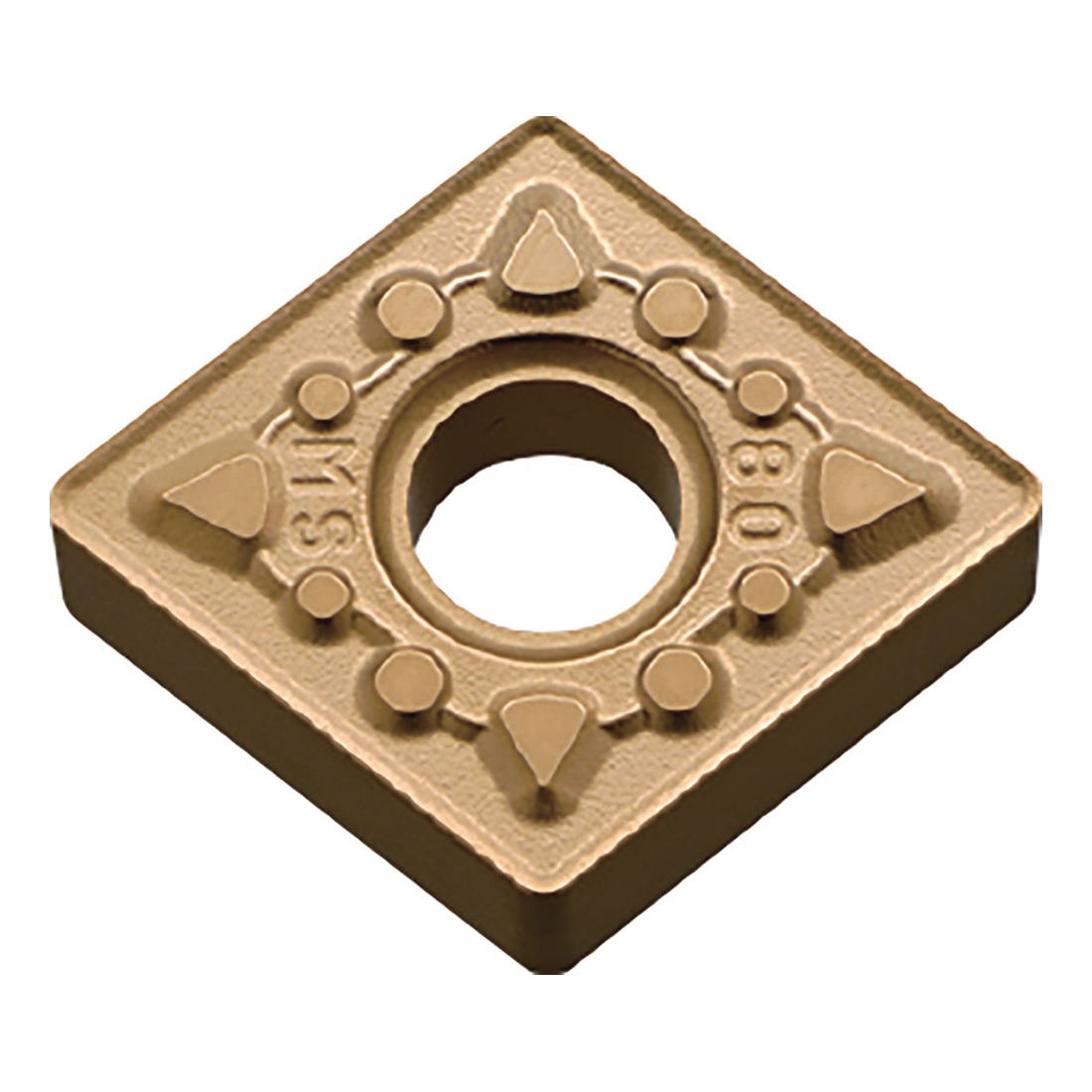

CNMG431MSPR1535 TURNING INSERT
  • Applicable Materials: Heat Resistant Alloys
  • Chipbreaker: MS
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.203in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: 431
  • Insert Style: CNMG
  • ISO Code: CNMG120404MS PR1535
  • Material: Carbide
  • Material Grade: S
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Diamond
  • Surface Treatment: MEGACOAT NANO
  • Thickness: 3/16in
  • Type: 2-Sided
  • ANSI Code: CNMG431MS PR1535
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PR1535
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
Medium Roughing and General Turning
  • MS chipbreaker - superior cutting edge sharpness and strength achieved by a positive land
  • Extra strength of cutting edge inhibits damage from wall shouldering
  • PR1535 grade stabilized turning operations and long tool life with MEGACOAT nano coating technology
  • PVD for titanium alloy and precipitation hardened stainless steel
