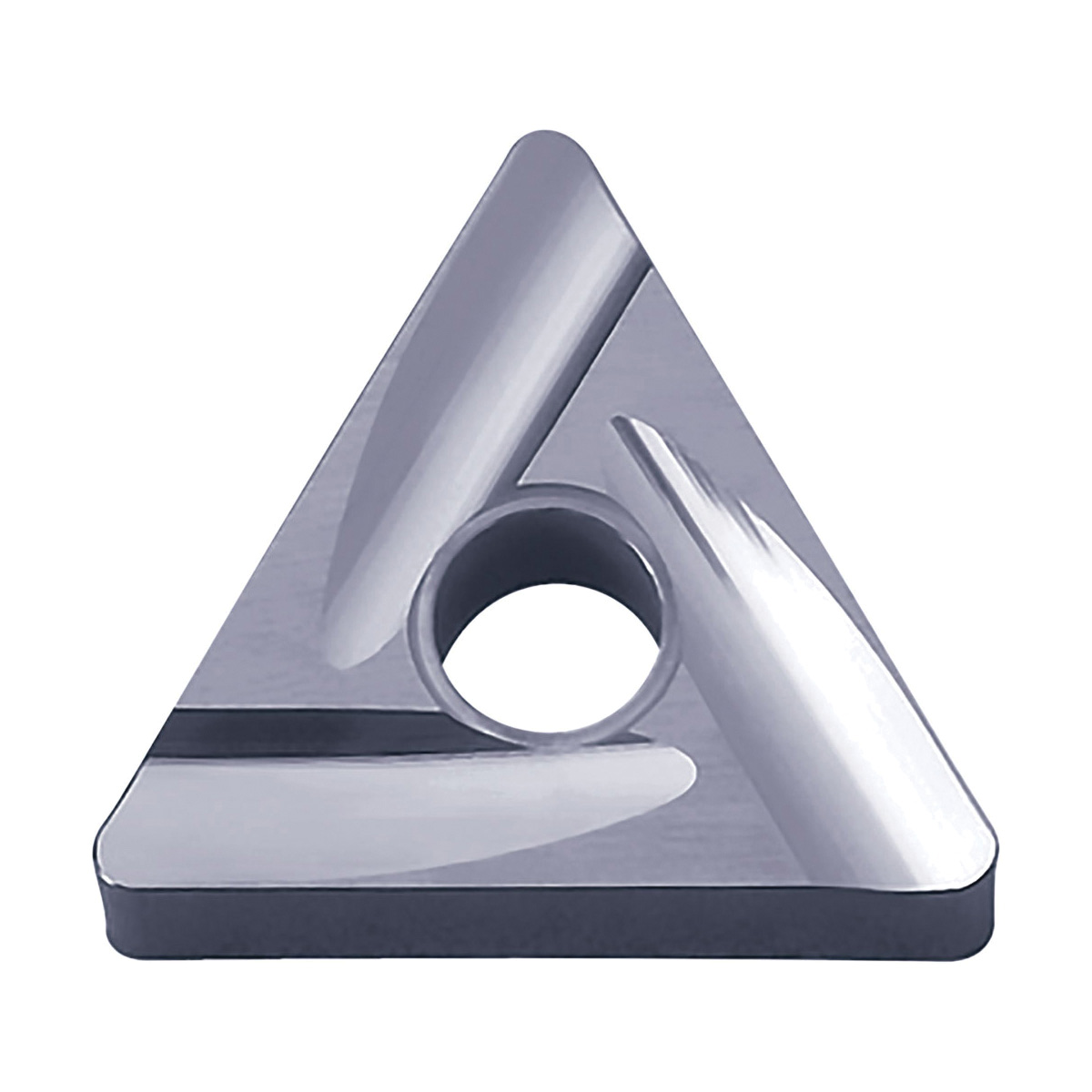

TNGG331R25RPR1535 TURNING INSERT

TNGG331R25RPR1535 TURNING INSERT

KYOCTLC40084 TLC40084
20.46 / EA
http://schema.org/OutOfStock
TNGG331R25RPR1535 TURNING INSERT
  • Applicable Materials: Stainless Steel, Heat-Resistant Alloy and Titanium Alloy
  • Chipbreaker: 25R
  • Corner Radius: 0.0157in
  • Hand Direction: Right Hand
  • Hole Diameter: 0.15in
  • Included Angle: 60°
  • Inscribed Circle: 3/8in
  • Insert Size: #331
  • Insert Style: TNGG
  • ISO Code: TNGG160404R-25R
  • Material: Carbide
  • Material Grade: M, S
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 16
  • Shape: Triangular
  • Surface Treatment: PVD-MEGACOAT NANO
  • Thickness: 0.1874in
  • Type: 6-Cutting Edge
  • ANSI Code: TNGG331R25RPR1535
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PR1535
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, Chamfering, Copying, External Turning, Facing and Up Facing Applications
  • Sharp edge/minus tolerance corner radius with 6-cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • PVD for titanium alloy and precipitation hardened stainless steel
  • https://youtu.be/vUo4G4g-5Hc
