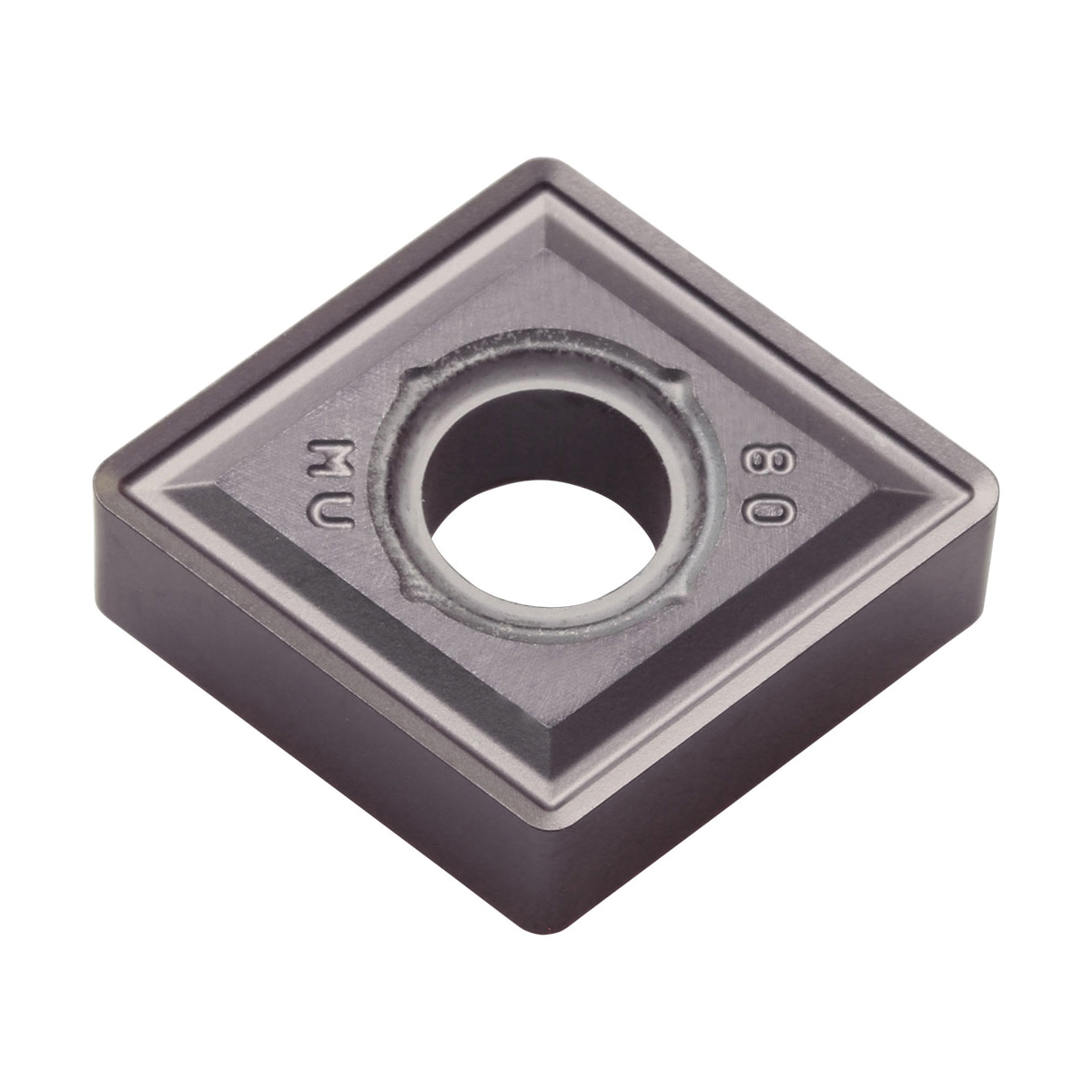

CNMG542MUPR1535 TURNING INSERT

CNMG542MUPR1535 TURNING INSERT

KYOCTLC40061 TLC40061
20.13 / EA
http://schema.org/OutOfStock
CNMG542MUPR1535 TURNING INSERT
  • Applicable Materials: Stainless Steel, Heat-Resistant Alloy and Titanium Alloy
  • Chipbreaker: MU
  • Corner Radius: 0.0315in
  • Hand Direction: Neutral
  • Hole Diameter: 1/4in
  • Included Angle: 80°
  • Inscribed Circle: 5/8in
  • Insert Size: #542
  • Insert Style: CNMG
  • ISO Code: CNMG160608MU
  • Material: Carbide
  • Material Grade: M, S
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 16
  • Shape: Diamond
  • Surface Treatment: PVD-MEGACOAT NANO
  • Thickness: 1/4in
  • Type: 4-Cutting Edge
  • ANSI Code: CNMG542MUPR1535
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PR1535
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, External Turning, Facing and Internal Facing Applications
  • Minus tolerance corner radius with 4-cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • PVD for titanium alloy and precipitation hardened stainless steel
  • https://youtu.be/vUo4G4g-5Hc
