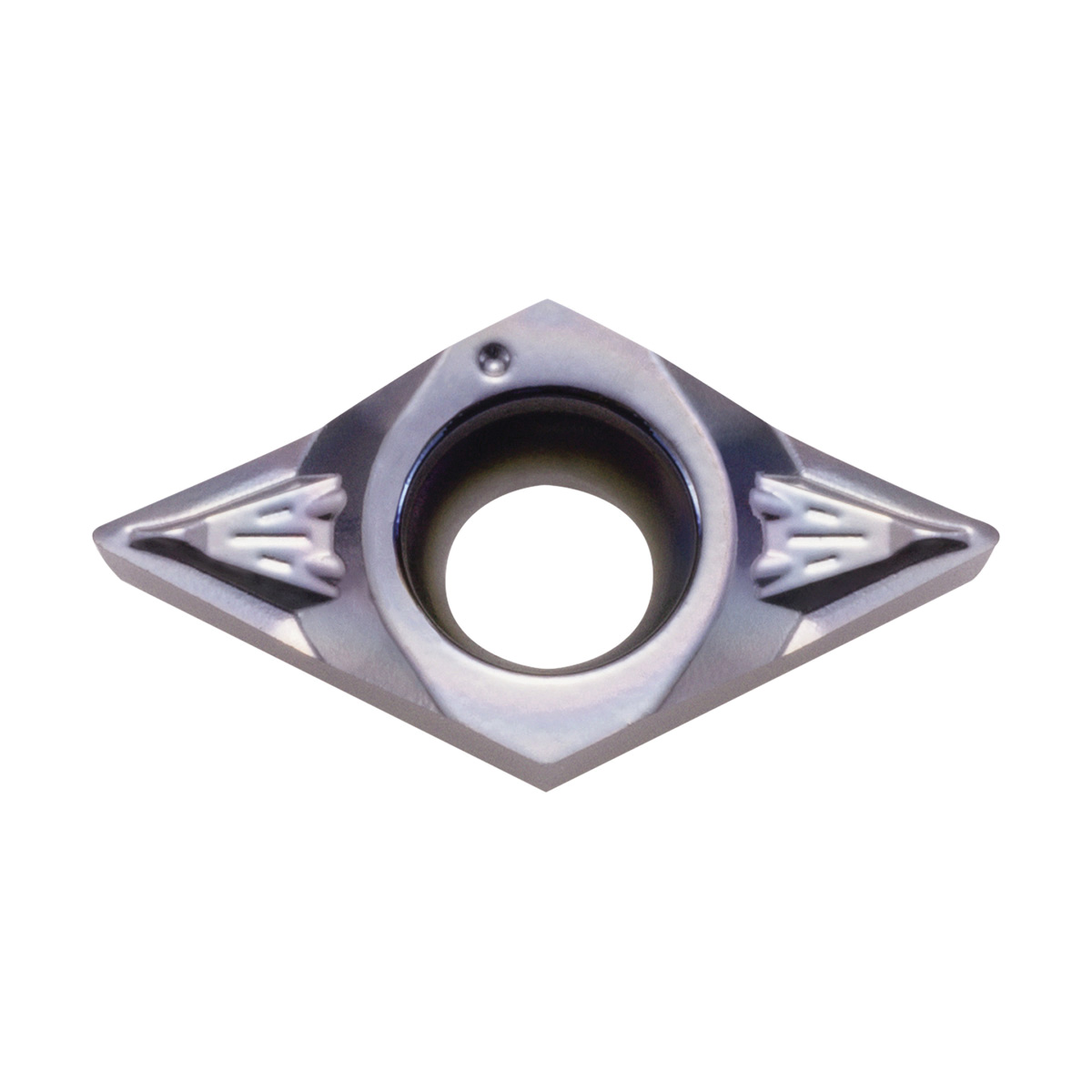

DCGT215013MFPSKSPR1535 TURNING INSERT
DCGT215013MFPSKSPR1535 TURNING INSERT
KYOCTLC40014
TLC40014
16.30
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLC40014
- Applicable Materials: Stainless Steel, Heat-Resistant Alloy and Titanium Alloy
- Chipbreaker: SKS
- Corner Radius: 0.002in
- Hand Direction: Neutral
- Hole Diameter: 0.1102in
- Included Angle: 55°
- Inscribed Circle: 1/4in
- Insert Size: #215013
- Insert Style: DCGT
- ISO Code: DCGT0702005MFP-SKS
- Material: Carbide
- Material Grade: M, S
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 07, 7
- Shape: Diamond
- Surface Treatment: PVD-MEGACOAT NANO
- Thickness: 0.0937in
- Type: 2-Cutting Edge
- ANSI Code: DCGT215013MFPSKSPR1535
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PR1535
- Manufacturer Name: KYOCERA Precision Tools
- Series: ISOI
- Application
- Item Features
- Standards
Back Boring, Copying, External Turning and Sub-Spindle Applications
- Sharp edge/minus tolerance corner radius with 2-cutting edges
- Light interruption and finishing of heat-resistant alloy, titanium alloy, stainless steel
- MEGACOAT NANO PLUS PVD technology provides excellent wear resistance for improved tool life in continuous machining for steel, electromagnetic soft iron and high precision machining of free-cutting steel
- https://youtu.be/vUo4G4g-5Hc
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
