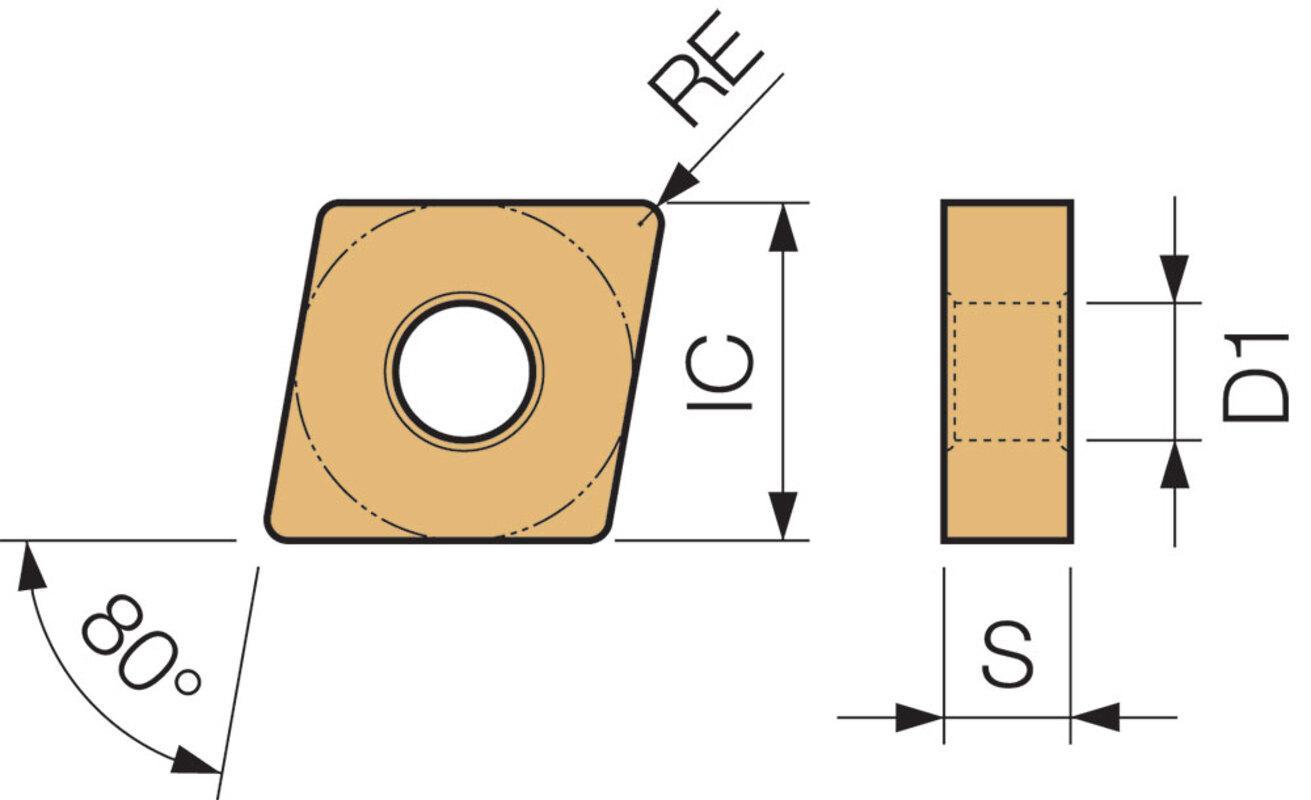

CNGG 431MFPSK PR1535 TURNING INSERT
CNGG 431MFPSK PR1535 TURNING INSERT
KYOCTLC30503
TLC30503
19.50
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLC30503
- Applicable Materials: Stainless Steel, Heat-Resistant Alloy and Titanium Alloy
- Chipbreaker: SK
- Corner Radius: 0.0157 in
- Hand Direction: Neutral
- Hole Diameter: 0.2031 in
- Included Angle: 80 deg
- Inscribed Circle: 1/2 in
- Insert Size: #431
- Insert Style: CNGG
- ISO Code: CNGG120404MFP-SK
- Material: Carbide
- Material Grade: M, S
- Rake: Negative
- Relief Angle: 0 deg
- Seat Size: 12
- Shape: Diamond
- Surface Treatment: PVD-MEGACOAT NANO
- Thickness: 0.1874 in
- Type: 4-Cutting Edge
- ANSI Code: CNGG431MFPSKPR1535
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PR1535
- Manufacturer Name: KYOCERA Precision Tools
- Series: ISOI
- Application
- Item Features
- Standards
Boring, External Turning, Facing and Internal Facing Applications
- Sharp edge/polished/minus tolerance corner radius with 4-cutting edges
- Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
- PVD for titanium alloy and precipitation hardened stainless steel
- https://youtu.be/vUo4G4g-5Hc
