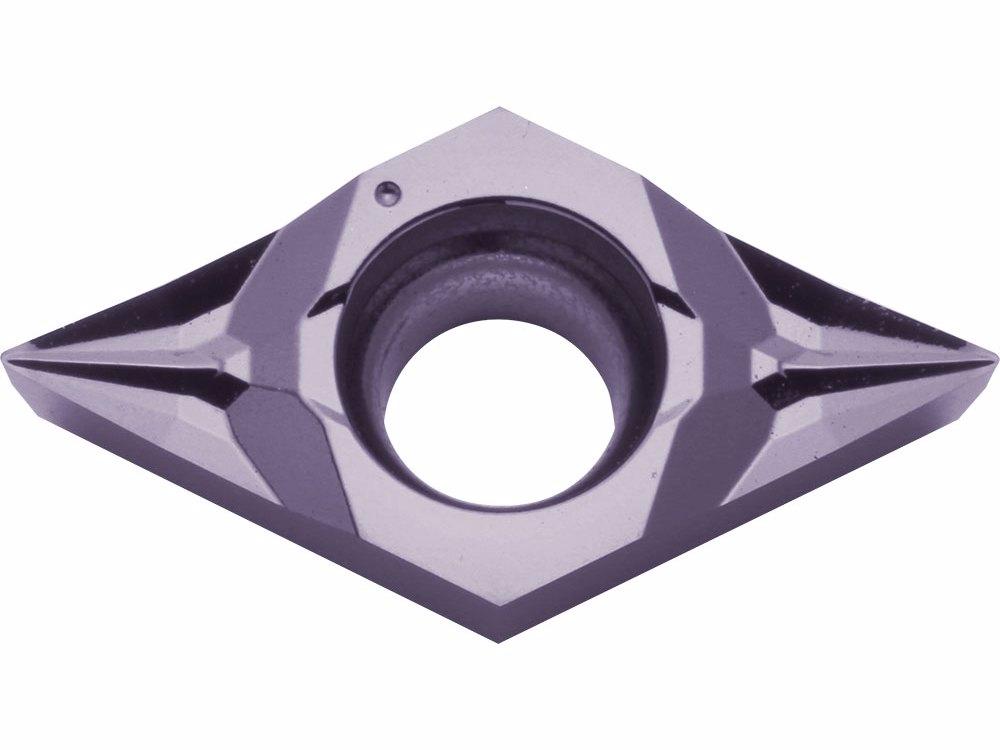

DCGT 21505MFPSK PR1535 TURNING INSERT

DCGT 21505MFPSK PR1535 TURNING INSERT

KYOCTLC03231 TLC03231
16.30 / EA
http://schema.org/OutOfStock
DCGT 21505MFPSK PR1535 TURNING INSERT
  • Chipbreaker: SK
  • Corner Radius: 0.2 mm
  • Hand Direction: Neutral
  • Hole Diameter: 2.8 mm
  • Included Angle: 55 deg
  • Inscribed Circle: 1/4 in
  • Insert Style: DCGT
  • ISO Code: DCGT070202MFP-SK
  • Material: Carbide
  • Material Grade: PR1535
  • Rake: Positive
  • Shape: Diamond
  • Surface Treatment: PVD
  • Thickness: 3/32 in
  • Type: Turning
  • ANSI Code: DCGT21505MFPSKPR1535
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
For Cut-Off, Slotting
  • Chip Breaker - MFP-SK
  • 02 Corner Radius
  • https://youtu.be/vUo4G4g-5Hc
ISO Certified|ANSI Standards
