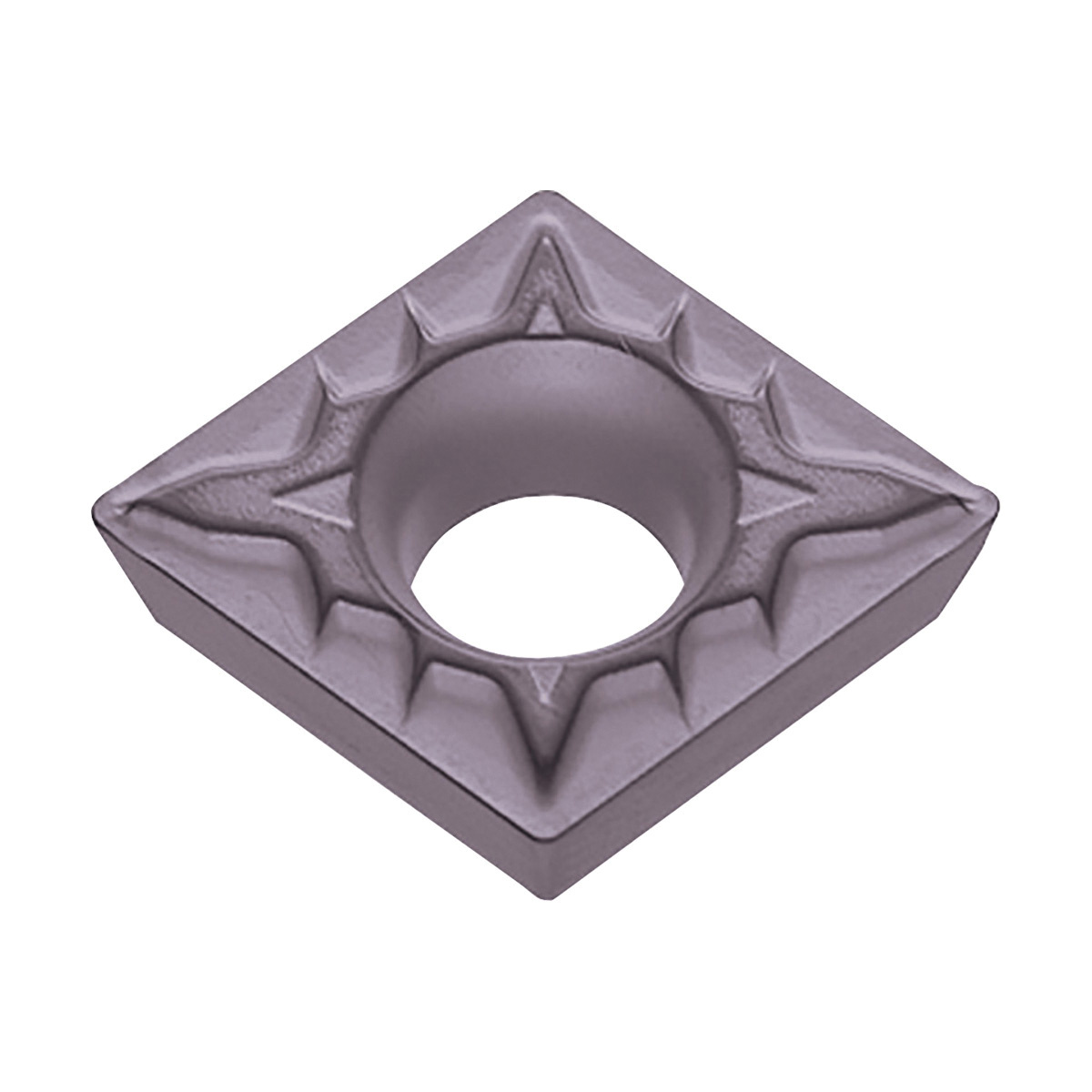

CPMT25151XPPR1535 TURNING INSERT

CPMT25151XPPR1535 TURNING INSERT

KYOCTLC02250 TLC02250
13.90 / EA
http://schema.org/OutOfStock
CPMT25151XPPR1535 TURNING INSERT
  • Applicable Materials: Stainless Steel, Heat-Resistant Alloy and Titanium Alloy
  • Chipbreaker: XP
  • Corner Radius: 0.0157in
  • Hand Direction: Neutral
  • Hole Diameter: 0.1299in
  • Included Angle: 80°
  • Inscribed Circle: 5/16in
  • Insert Size: #25151
  • Insert Style: CPMT
  • ISO Code: CPMT080204XP
  • Material: Carbide
  • Material Grade: M, S
  • Rake: Positive
  • Relief Angle: 11°
  • Seat Size: 8
  • Shape: Diamond
  • Surface Treatment: PVD-MEGACOAT NANO
  • Thickness: 0.0937in
  • Type: 2-Cutting Edge
  • ANSI Code: CPMT25151XPPR1535
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PR1535
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring and Internal Facing Applications
  • Low carbon steel with 2-cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • PVD for titanium alloy and precipitation hardened stainless steel
  • https://youtu.be/vUo4G4g-5Hc
